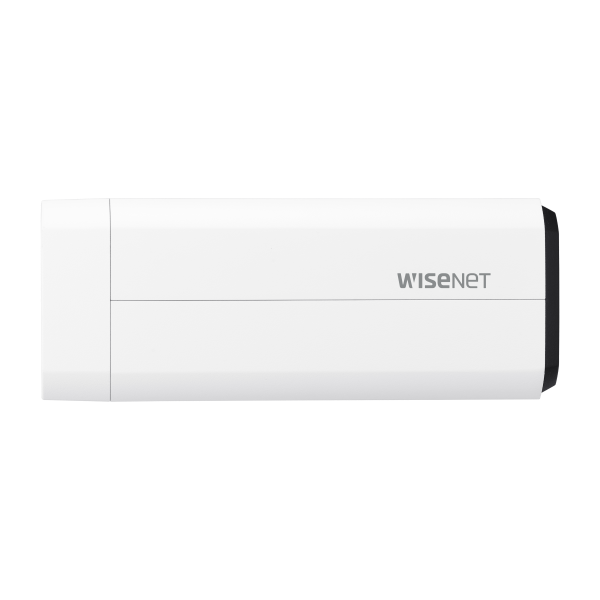

Hanwha TNM-3620TDY QVGA / 2MP Bi-Spectral Thermal Radiometric AI-based Estimated Body Temperature Camera

The TNM-3620TDY Wisenet T network indoor body temperature detection camera (uncooled) is a dual sensor camera with QVGA thermal (320x240) & 2MP (1920x1080) visible video outputs. Ideal for monitoring Estimated Body Temperature or use as a thermal radiometric camera with its' built-in 4.7mm fixed lens (50°) (thermal), 4mm fixed lens (87.6°) (visible) & AI Face & temperature detection mode.

Additional features include triple codec H.265/H.264/MJPEG with Wisestream II, 150dB WDR, USB and CVBS port for easy installation & monitoring, advanced video analytics, micro SD edge recording, DIS, PoE+/12VDC

Estimated Body Temperature Mode: +30°C~+45°C (+86°F~+113°F), accuracy ±0.5°C (±0.9°F) / with blackbody ±0.3°C (±0.54°F)

Normal radiometric mode temperature detection range: -20°C~+130°C (-4˚F~+266˚F) / ±5˚C ≤+100˚C, ±20% >+100˚C (±9˚F ≤+212˚F, ±20% >+212˚F

Integration of visible camera AI face detection with thermal camera Elevated Body Detection analytics including temperature & face overlay and alerts, buzzer output, alarm output, audio playback, detects people even while wearing a mask

Proper installation and use of a blackbody device (optional) is recommended for best performance and accuracy. Easy mounting with top & bottom 1/4"x20 tripod mounts or with optional hanging mount or floor stand. For standalone installations, the Wisenet mobile app, SmartViewer, and/or USB Wi-Fi (optional, recommended models only) may be used.

※Please note: Thermal cameras may not be available for purchase by all customers or shipped to all locations. Hanwha Techwin America restricts the purchase and shipment to Ultimate Consignee and Purchaser locations in the United States.

This product is subject to US export licensing requirements. Exports without an export license or other applicable authorization to most countries is prohibited by law.

Key Features:

• QVGA (320 x 240) radiometric thermal camera & 2MP visible camera
• Estimated Body Temperature Mode / Radiometric Thermal Camera Mode
• Built-in 4.7mm (thermal) & 4mm (visible) fixed fixed lenses
• 30fps@all resolutions(H.265, H.264, MJPEG)
• H.265, H.264, MJPEG triple codec support
• WiseStream II support
• Temperature Detection Range: Estimated body temperature mode : 30~45°C(86°F~113°F)
• Temperature Detection Range: Normal mode: -20~+130°C(-4˚F~+266˚F)
• Intelligent Analytics (Radiometric Mode Only) : Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line, Audio detection, Temperature detection
• Intelligent Analytics (EBT mode) : Temperature detection, Blackbody error
• 2-way bi-directional audio & Alarm I/O support
• SD / SDHC / SDXC memory slot (Maximum 256GB)
• Operating temperature: EBT mode: +10°C~+35°C(+50°F~+95°F) / Less than 95% RH
  Operating temperature: Normal mode: -10°C~+55°C(+14°F~+131°F) / Less than 95% RH
• PoE+, 12V DC
