Hanwha / Samsung

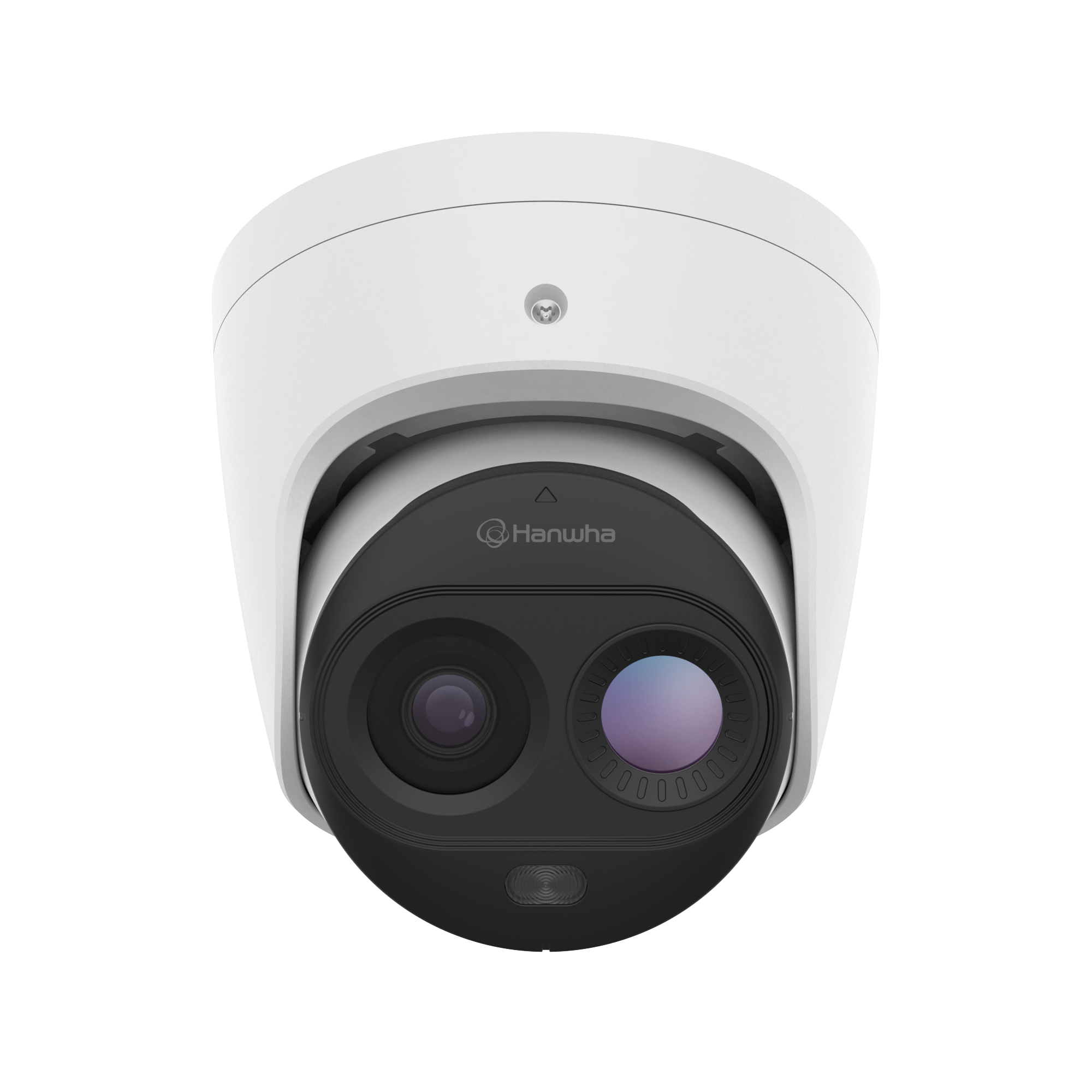

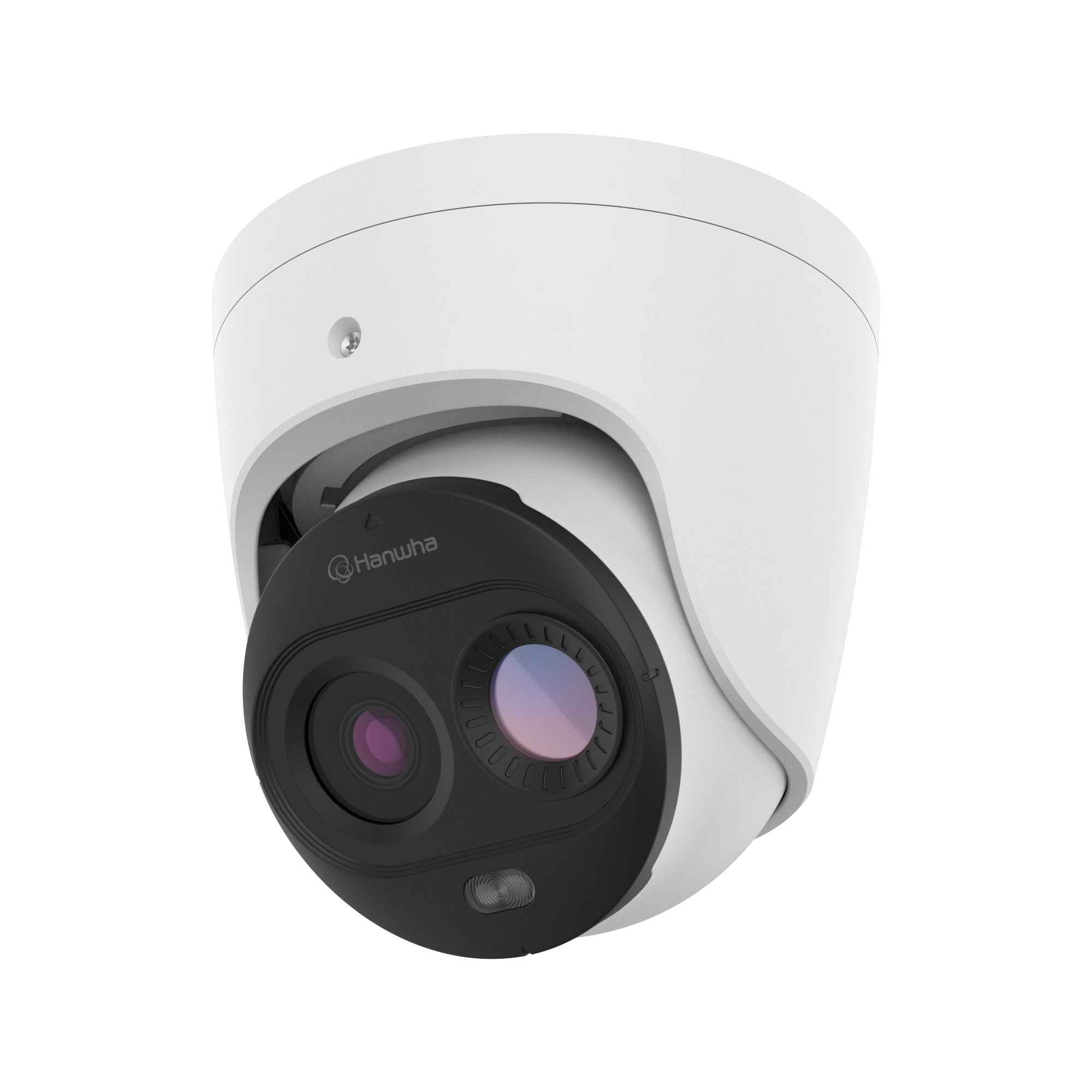

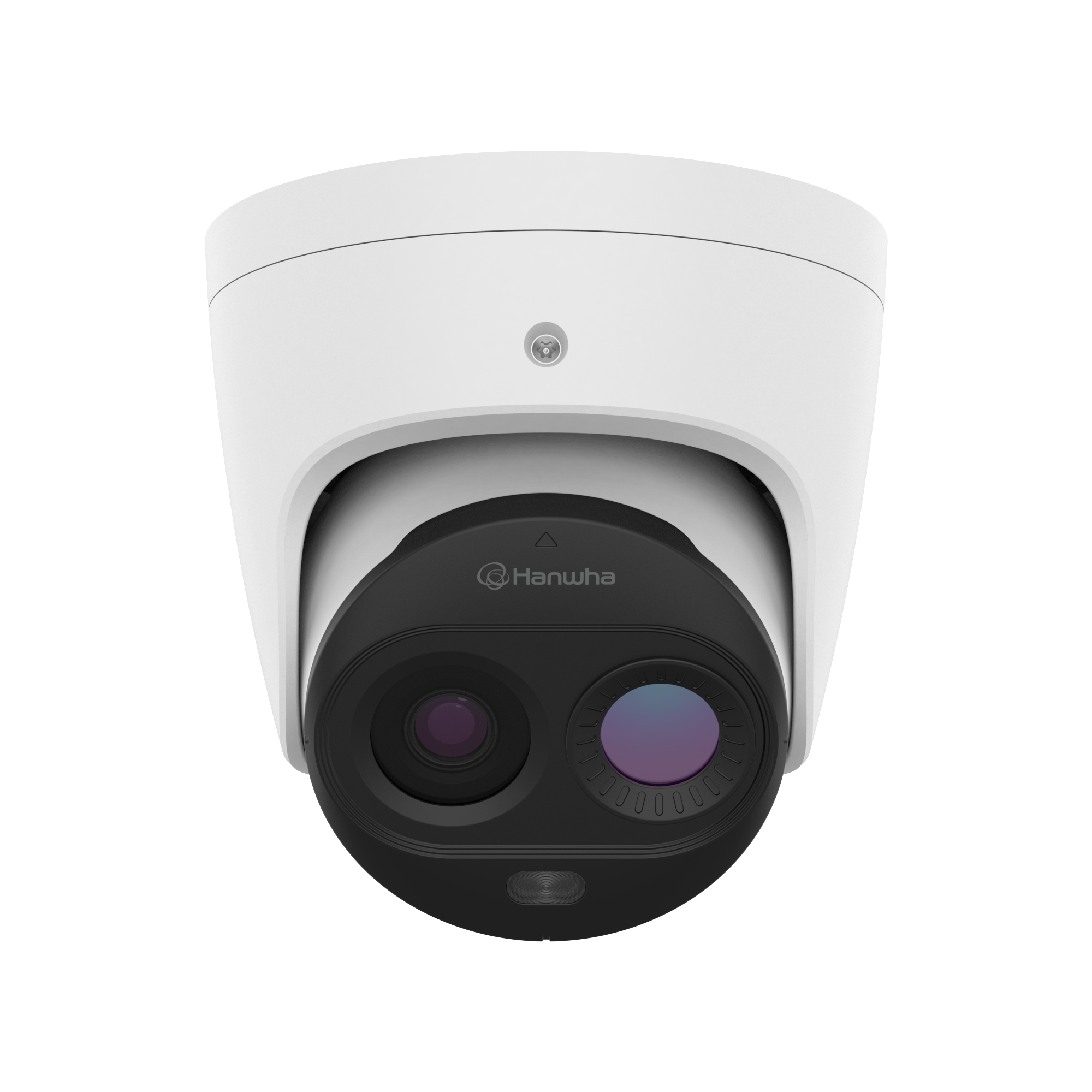

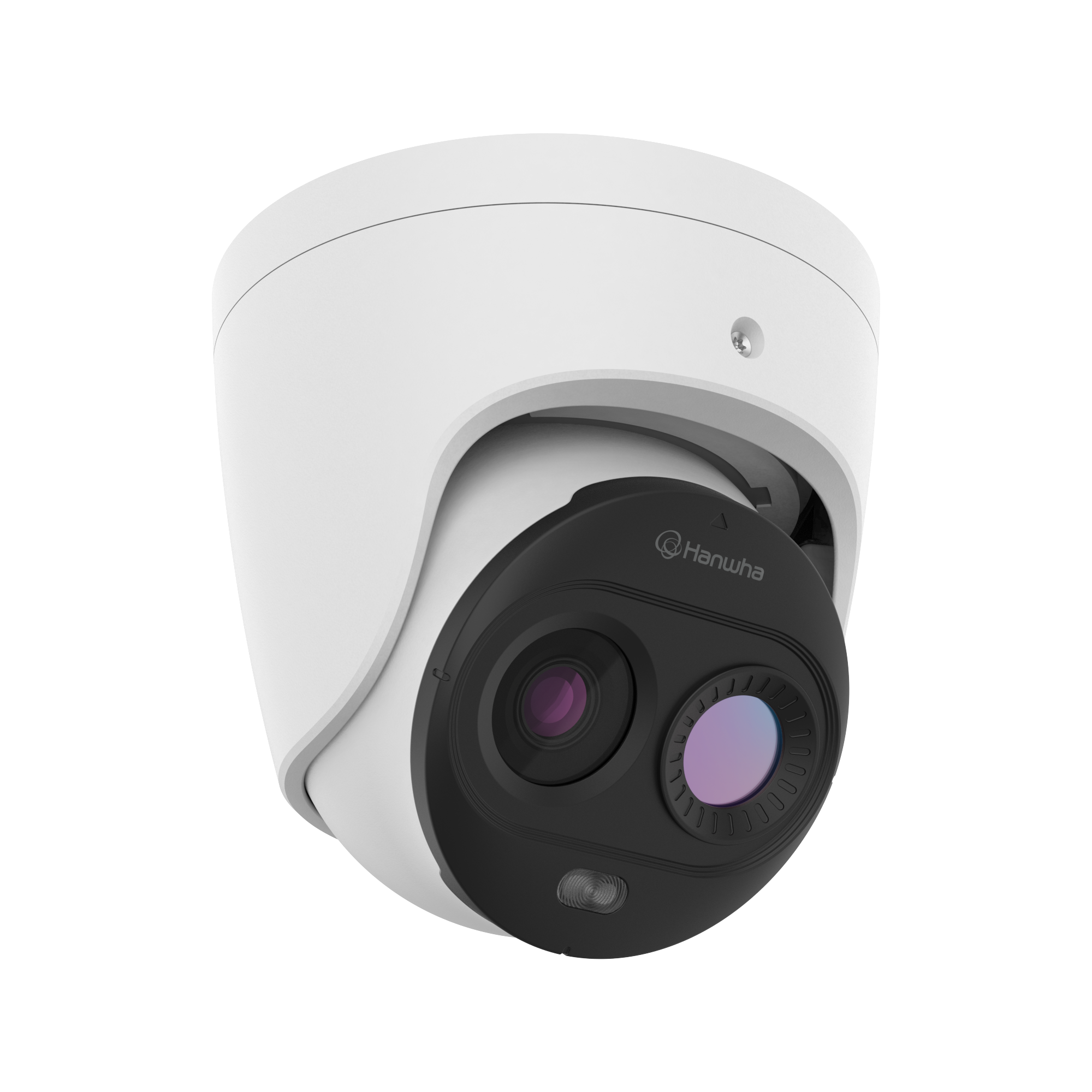

Hanwha TNM-C2722TDR Bi-spectrum Early Fire Detection Camera
Choose options
- Wisenet T Network Bi-spectrum Early Fire Detection Camera
- Thermal:
- Resolution: 160 x 120 (uncooled) @ 8fps
- NETD: <50mK
- Built-in 1.9mm fixed lens (57° HFoV / 44° VFoV)
- Visible:
- 3MP resolution with built-in 4.46mm fixed lens (69° HFoV / 50.8° VFoV)
- Max. 2048 x 1536 resolution @ 30fps
- Triple codec support: H.265 / H.264 / MJPEG with Wisestream II
- Analytics:
- Thermal: temperature detection, temperature difference detection, motion detection
- Visible: early fire detection, motion detection, audio detection, tampering
- Alarm events:
- Image upload (e-mail/FTP)
- Notification (e-mail)
- Recording (edge/NAS)
- Alarm output
- Handover (PTZ preset, HTTP/HTTPS/TCP message)
- Audio clip playback
- MQTT (publication)
- Early fire detection: 3 user-programmable quadrangle ROIs
- Radiometric: 2 user-programmable quadrangle ROIs
- Temperature detection range: -10°C to 450°C (-14°F to 842°F)
- Storage: micro SD card support (512GB x1)
- Power: PoE (802.3af)
Wisenet T network Bi-spectrum Early Fire Detection Camera, Thermal: 160 x 120 (uncooled) @ 8fps, <50mK (NETD), built-in 1.9mm fixed lens (57° HFoV / 44° VFoV), Visible: 3MP, built-in 4.46mm fixed lens (69° HFoV / 50.8° VFoV), Max. 2048 x 1536 resolution @ 30fps, Triple codec H.265/H.264/MJPEG with Wisestream II support, Analytics (thermal): temperature detection, temperature difference detection, motion detection, Analytics (visible): early fire detection, motion detection, audio detection, tampering, Alarm events: Image upload (e-mail/FTP), Notification (e-mail), Recording (edge/NAS), Alarm output, Handover (PTZ preset, HTTP/HTTPS/TCP message), Audio clip playback, MQTT (publication), Early fire detection: 3 user programmable quadrangle ROIs, Radiometric: 2 user programmable quadrangle ROIs, temperature detection range from -10°C to 450°C (-14°F to 842°F), micro SD card (512GB x1), PoE (802.3af)
