Hanwha / Samsung

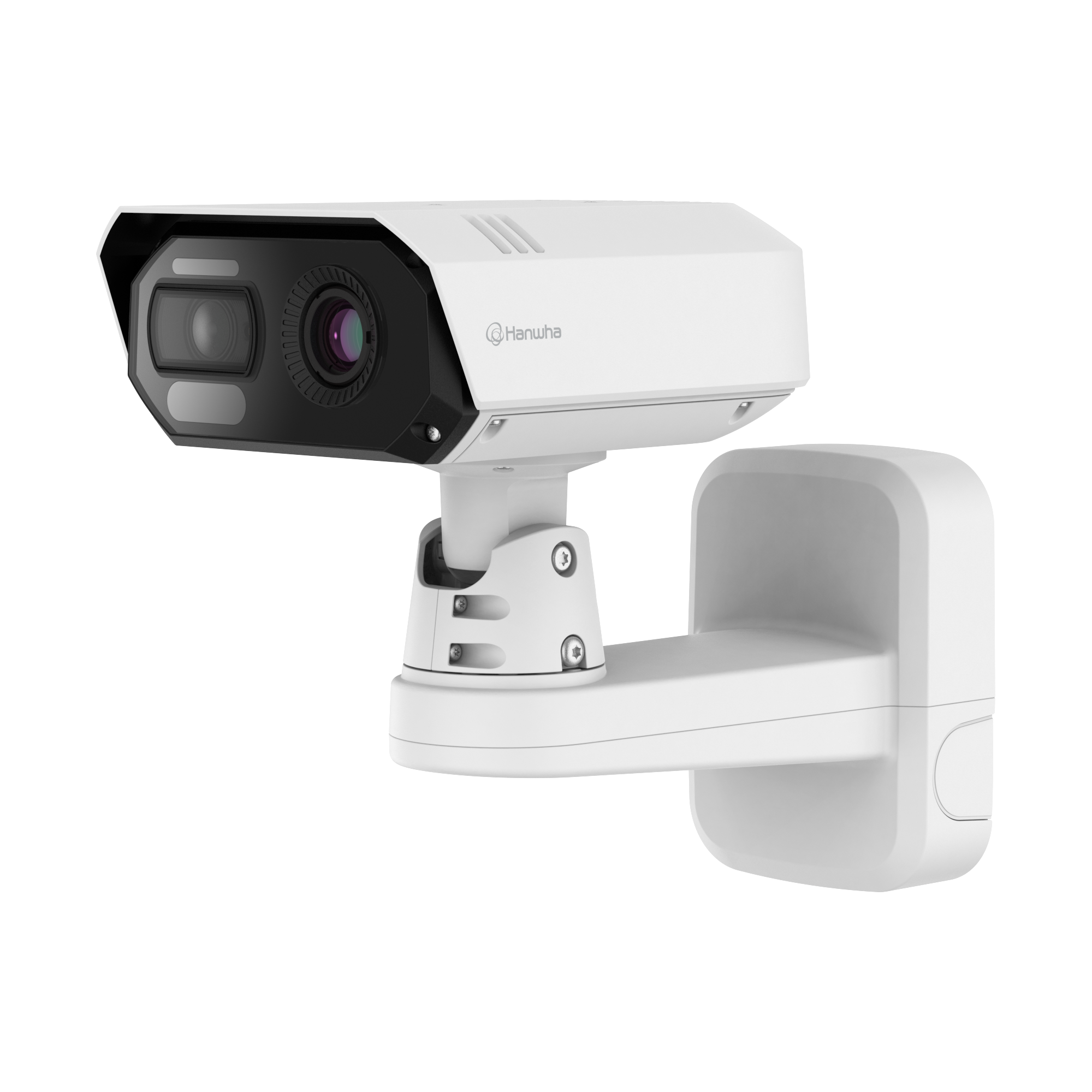

Hanwha TNM-C4942TDR Bi-spectrum AI Radiometric Camera QVGA thermal / 4K visible
Special order - Non-returnable
Quantity:
T series Bi-spectrum AI Radiometric Camera
- Thermal: 640 x 480 (uncooled) @ 8fps
- <60mK (NETD)
- built-in 9.1mm fixed lens (HFoV: 50°),Visible: 4K
- built-in 4.4~9.3mm motorized varifocal lens (HFoV: 112.1°~47.5°)
- Max. 3840 x 2160 resolution @ 30fps
- Triple codec H.265/H.264/MJPEG with Wisestream II and WiseStream III (based on AI engine) support
- WDR 120dB
- IR viewable length 30m (98ft)
- AI object detection (thermal): Person/Vehicle
- AI object detection (visible): Person/Face/Vehicle (car, bus, truck, motorcycle, bicycle)/License Plate
- Analytics events based on AI engine: Virtual line (Crossing/ Direction)
- Virtual area (Loitering/Intrusion/Enter/Exit)
- Additional analytics events (thermal): Motion detection
- Additional analytics events (visible): Motion detection
- Defocus detection
- Tampering
- Audio detection
- Sound classification
- Shock detection
- Virtual area(Appear/Disappear)
- Alarm events: Image upload (e-mail/FTP)
- Notification (e-mail)
- Recording (edge/NAS)
- Alarm output
- Handover (PTZ preset
- HTTP/HTTPS/TCP message)
- Audio clip playback
- MQTT (publication)
- Radiometric: whole FoV area or up to 10 user programmable quadrangle ROIs
- temperature detection range from -20°C to 130°C (-4°F to 266°F)
- FIPS 140-2
- 2 x micro SD card (512GB x2)
- IP66/IP67, IK10
- NEMA4X, NEMA TS 2(2.2.8, 2.2.9)
- PoE+/12VDC
