• Dual Global Sensor for Barcode Reading and Video Monitoring
- MONO 4K 1” + COLOR 4K 1”
• 35mm Fixed (Wide FoV)
• AI barcode location search
- In Logistics and Warehouse, track barcodes on high speed conveyor belt moving at
2m/s(6.5ft/s)
• 1D Code is available
(Code128 / Code39 / Code93/ Codabar / Interleaved 2 of 5 / UPC / EAN)
2D Code is available
(QR code / DataMatrix / Maxicode / PDF417)
• Reinforced durability
- IP66, IP67, IK10, NEMA TS-2 2.2.9, M12 8pin Ethernet connect
- Humidity control with AIR vent, EN 60068-2-6(vibration resistance)
- EN 60068-2-27 (shock resistance), Operating temperature -40°C ~ + 55°C

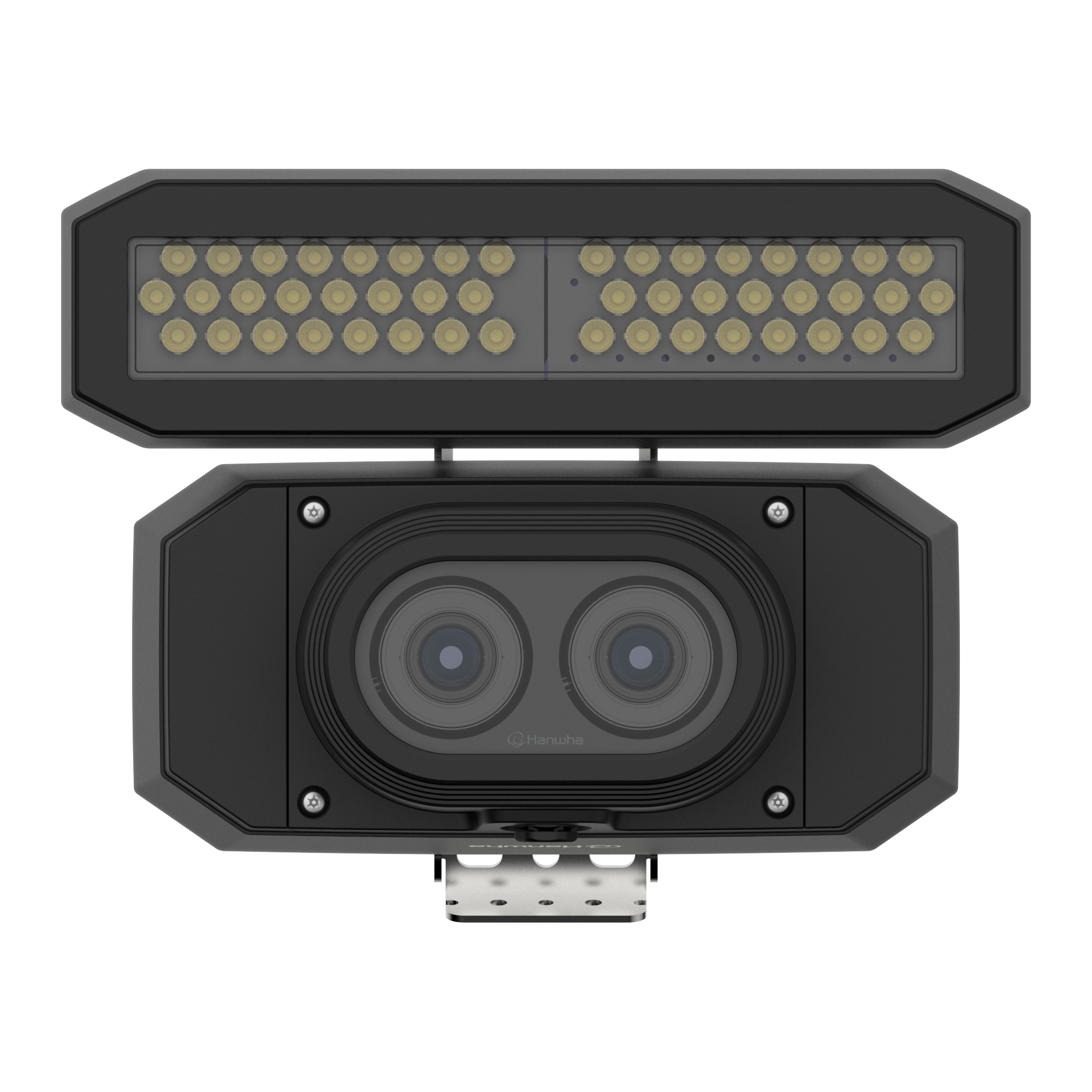

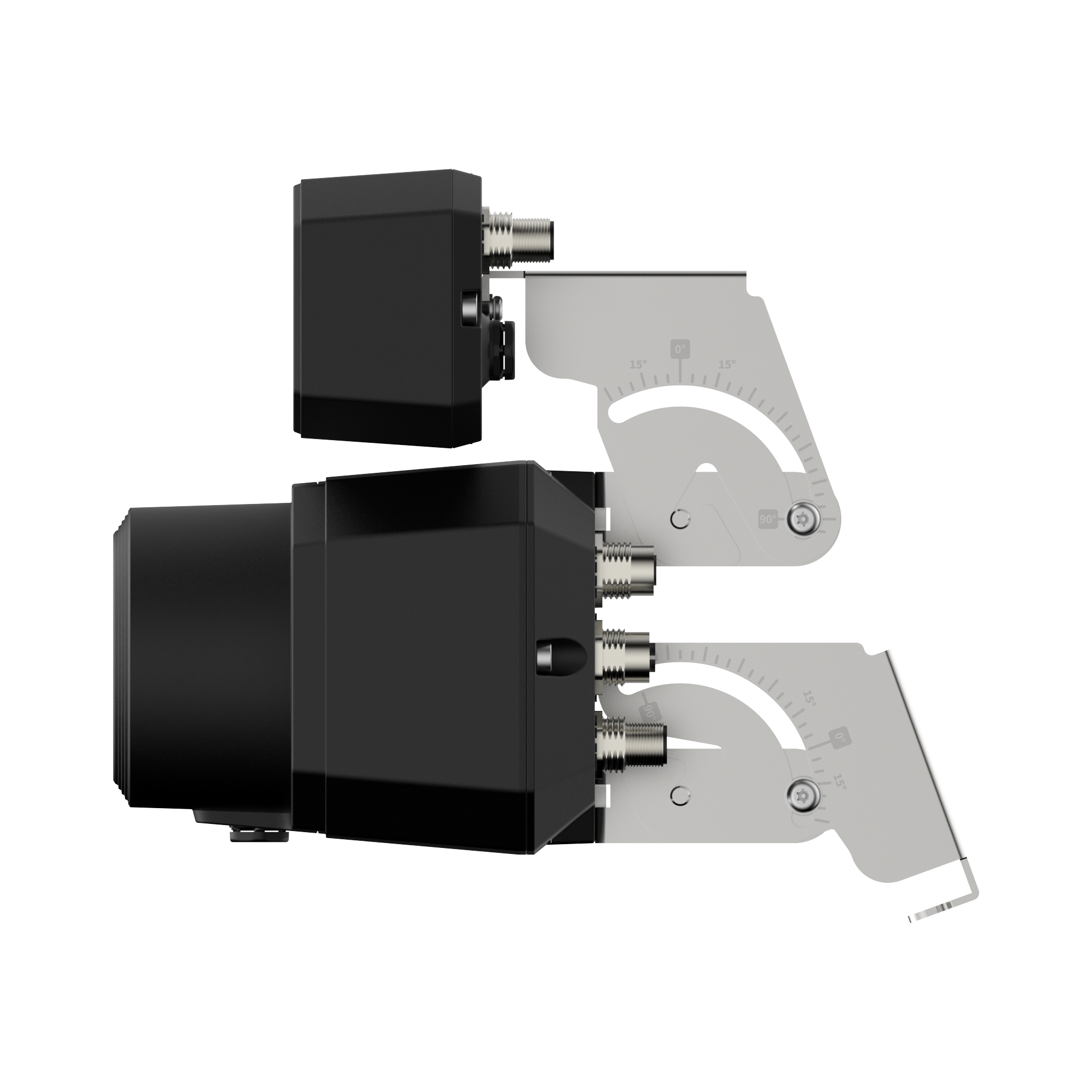

Wisenet T network BCR (Barcode Reader Camera) for Barcode Reading and Video Monitoring. Mono: 4K, Color: 4K. Max 20fps @ 4K MONO/COLOR each. 35mm machine vision lens. Removable and replaceable LED module (32 LEDs module is default) Track barcodes on high speed conveyor belt moving at 2m/s (6.5ft/s). Preinstalled WiseBCR App support Barcode recognition. Currently 1D/2D Bar Code can be recognized(Code128 / Codabar / Interleaved 2 of 5) , M12 8pin Ethernet connect, Humidity control with AIR vent. EN 60068-2-6 (vibration resistance), EN 60068-2-27 (shock resistance). Operating temperature -40°C~+55°C, IP67, IK10, 24VDC. (Lens/LED module/Front cover/Bracket included)
