Hanwha XNP-6040H

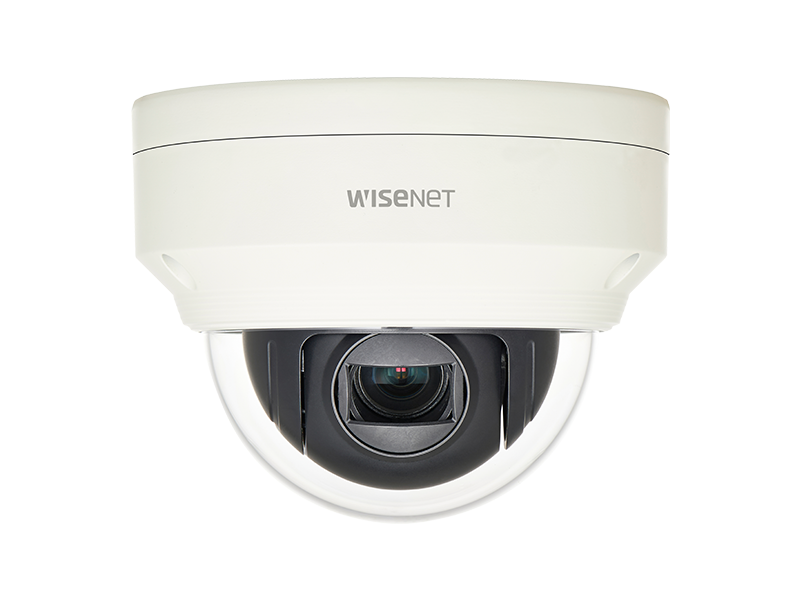

Hanwha XNP-6040H 2MP 4.3x Zoom Micro PTZ Network Camera

Hanwha / Samsung

Hanwha XNP-6040H 2MP 4.3x Zoom Micro PTZ Network Camera

Sale price$1,020.00
Discontinued
SKU: XNP-6040H

Contact

Hanwha XNP-6040H Features

  • Max Resolution: 2MP (1920 x 1080)
  • Image Sensor: 1/2.8" 2.16M CMOS
  • Day/Night: Auto (ICR) / Color / B/W
  • Mechanical IR Cut Filter: Yes
  • Minimum Illumination: Color : 0.015 Lux (1/30sec, F1.4), B/W : 0.0015 Lux (1/30sec, F1.4)
  • IR Illuminators: No
  • IR Illuminator Range: N/A
  • Lens Type: DC auto iris / Board-in type
  • Focal Length: 2.8 ~ 12mm (Optical 4.3x) / F1.4
  • Zoom: 4.3x optical zoom, 24x digital zoom
  • Pan Range: 0˚ ~ 350˚
  • Tilt Range: 0˚ ~ 90˚
  • Presets: Preset (300ea), Swing, Group (6ea), Trace, Tour (1ea), Auto Run, Schedule / ± 0.5˚
  • Focus: Auto / Manual / One Push
  • Field of View: H : 119.5˚ ~ 27.9˚, V : 62.8˚ ~ 15.7˚, D : 142.1˚ ~ 32.0˚
  • Compression Styles: H.265 / H.264 (MPEG-4 part 10/AVC) : Main / Baseline / High, MJPEG
  • Frame Rate: H.265 / H.264 : Max 60fps at all resolutions, Motion JPEG : Max. 30fps at all resolutions
  • WDR Technology: Yes, 150dB
  • Image Settings: Camera Title, Day & Night, Backlight Compensation, Wide Dynamic Range, Contrast Enhancement, Digital Noise Reduction, Digital Image Stabilization, Defog, Motion Detection, Gain Control, White Balance, Electronic Shutter Speed, Image Flip / Mirror, Pixel Counter
  • Privacy Mask: Off / On ( 24 Zones of Rectangle zone) - Color : Grey / Green / Red / Blue / Black / White - Zoom ratio option for mask mode - Mosaic option
  • Built-in Microphone: No
  • Audio Capabilities: Selectable (Mic IN / Line IN) / Line out (3.5mm mono jack)
  • Alarm/Event Management: Intelligent Video Analytics: Tampering, Loitering, Directional detection, Defocus detecion, Fog detection, Virtual line, Enter/Exit, (Dis) Appear, Audio detection, Face detection, Motion detection, Digital auto tracking, Sound classification, Alarm Input, Network Disconnect; File upload via FTP and E-Mail, Notification via E-Mail, TCP and HTTP, local storage (SD/SDHC/SDXC) or NAS recording at Alarm Triggers, External output, Preset
  • ONVIF: YES
  • Security: HTTPS(SSL) Login Authentication, Digest Login Authentication, IP Address Filtering, User access Log, 802.1x Authentication
  • Users: 20 users at unicast mode
  • On-board Storage: SD/SDHC/SDXC 2 slot (up to 512 GB)
  • Indoor/Outdoor: Outdoor
  • Housing/Enclosure Rating: IP66 Weatherproof, IK10 Vandal-proof
  • Dimensions: Ø136.1 x 106.1mm (Ø5.36" x 4.18")
  • Weight: 0.78 kg (1.72 lb)
  • Operating Temperature: -30°C ~ +55°C (-22°F ~ +131°F)
  • Operating Humidity: less than 90% RH
  • Power/Consumption: 12V DC & PoE / Max. 8.6W (12V DC), Max. 9.6W (PoE)
  • Warranty: 3 Years
