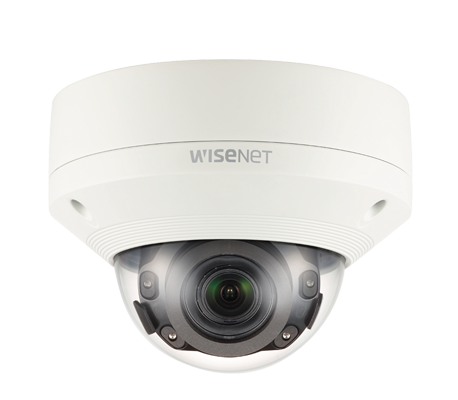

Hanwha XNV-8080R 5MP IR Dome Network Camera

Hanwha XNV-8080R Features

• Max Resolution: Max 5megapixel (2560 x 1920) resolution
• Image Sensor: 1/1.8" 6M CMOS
• Day/Night: Yes, Auto (ICR) / Color / B/W / External / Schedule
• Mechanical IR Cut Filter: Yes
• Minimum Illumination: Color : 0.07Lux (F1.3, 1/30sec), B/W : 0Lux (IR LED on)
• IR Illuminators: Yes
• IR Illuminator Range: 50m (164.04ft)
• Lens Type: DC auto iris, P-Iris / Board-in type
• Focal Length: 3.9 ~ 9.4mm (2.4x) motorized varifoca
• Focus: Simple focus (Motorized V/F) / Manual, Remote control via network (Manual, Simple focus)
• Compression Styles: H.265 / H.264 (MPEG-4 part 10/AVC) : Main / Baseline / High, MJPEG
• Frame Rate: H.265 / H.264 : Max. 30fps at all resolutions, MJPEG : Max. 30fps
• WDR Technology: 120dB
• Image Settings: Camera Title, Day & Night, Backlight Compensation, Wide Dynamic Range, Contrast Enhancement (SSDR), Digital Noise Reduction, Digital Image Stabilization, Defog, Motion Detection, Privacy Masking, Gain Control, White Balance, Contrast, Lens Distortion Correction, Digital PTZ, Electronic Shutter Speed, Flip/Mirror,
• Privacy Mask: Off / On (32ea, Polygonal) - Color : Grey / Green / Red / Blue / Black / White, Mosaic
• Built-in Microphone: No
• Audio Capabilities: Selectable (Mic in / Line in), Supply voltage : 2.5V DC (4mA), Input impedance : approx. 2K Ohm, Line out, Max output level : 1Vrms
• Alarm/Event Management: Alarm input, Motion detection, Video & Audio analytics, Network disconnect; File upload via FTP, E-mail, Notification via E-mail, Local storage (SD/SDHC/ SDXC) or NAS recording at event triggers, External output, DPTZ preset
• ONVIF: Yes
• Security: HTTPS(SSL) login authentication, Digest login authentication IP address filtering, User access log, 802.1X authentication (EAP-TLS, EAP-LEAP)
• Users: 20 users at unicast mode
• On-board Storage: Yes, SD/SDHC/SDXC 2slot (Up to 512GB)
• Indoor/Outdoor: Outdoor / Indoor
• Housing/Enclosure Rating: IP67, IP66, NEMA 4X / IK10
• Dimensions: Ø160.0 x 118.5mm (Ø6.3" x 4.67")
• Weight: 1.01Kg (2.23lb)
• Operating Temperature: -40°C ~ +55°C (-40°F ~ +131°F) / Less than 90% RH
• Operating Humidity: Less than 90% RH
• Power/Consumption: 24V AC ±10%, 12V DC ±10%, PoE (IEEE802.3af) / Max. 11.5W (12VDC), Max. 12.95W (PoE), Max. 14W (24VAC)
• Warranty: 3 Year

Hanwha XNV-8080R Overview

Wisenet X powered by Wisenet 5 network IR outdoor vandal dome camera, 5MP @30fps WDR off/on, Motorized Vari-Focal Lens 2.4x (3.9~9.4mm) (92.1°~38.7°), H.265/H.264/MJPEG, WiseStream II compression technology, 120dB WDR, USB port for easy installation, Advanced video analytics and sound classification, High powered IR LEDs range of 164', True D/N, Dual SD card, Hallway view, HLC, Defog detection with simple focus, DIS , 12VDC/24VAC/PoE, IP67, IK10, NEMA 4X, Built-in -40°F Heater
