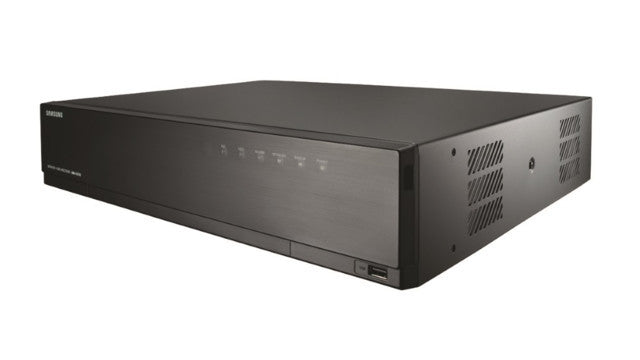

Samsung/Hanwha XRN-1610S Main View
Hanwha XRN-1610S 16CH 4K PoE+ Network Video Recorder

Hanwha / Samsung

Hanwha XRN-1610S 16CH 4K PoE+ Network Video Recorder

$837.20
Discontinued
SKU: XRN-1610S
Link to Manufacturer's Page

Contact

Replaced by the XRN-1610SA

Hanwha XRN-1610S Features

  • Operating System: Linux
  • Camera Compatibility: Hanwha & ONVIF-compatible cameras
  • Maximum Number of Cameras/Channels: Up to 16CH / CIF ~ 12MP
  • Recording Bandwidth: 180Mbps
  • Compression Styles: H.265, H.264, MJPEG, WiseStream (H.265, H.264)
  • Display Layout: Local monitor] 1 / 2V / 3V / 4 / 6 / 8 / 9 / 13 / 16 / Auto sequence, [Web] 1 / 4 / 9 / 16 / Auto sequence
  • Event Notification: E-mail, PTZ preset, Alarm out, Buzzer, Monitor out
  • Alarm & Event Management: Alarm input (8), Video loss, Camera event (Sensor, MD, Video analytics), VA event (Tampering, Enter / Exit, Passing, Virtual- line,(Dis)Appear, Face detection, Audio Detection), Defocus camera event \ E-mail, PTZ preset, Alarm out, Buzzer, Monitor out
  • Scheduled Recording: Yes
  • Event Recording: Yes
  • Manual Recording: Yes
  • Remote Access with PC Based Web Browser: Yes
  • Mobile App Support: iPOLiS mobile viewer for iOS & Android
  • Playback Features: Date & Time (Calendar) / Event log list / Text search (POS, ANPR)
  • Hard Drive Bays: 4 x 3.5" HDD
  • Max TB per HD Bay: 6 TB
  • USB Ports: 2ea (Front 1ea / Rear 1ea)
  • Ethernet Ports: 16ea (PoE (PoE+), 100Mbps), 2ea (LAN/WAN, 1Gbps) - LAN : Downlink to camera / PoE (PoE+) Hub - WAN : Uplink to CMS
  • Display Port(s): 1 x HDMI, 1 x VGA
  • PoE: 16 PoE Ports, PoE/PoE+ Budget : Max. 220W
  • Dimensions (W x H x D): 440.0 x 88.0 x 384.8mm (17.32" x 3.46" x 15.15") (2U)
  • Weight: 5.1Kg (11.24 lb)
  • Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)
  • Operating Humidity: 20 ~ 85% RH
  • Power Source / Consumption: 100 ~ 240 VAC \ Max. 271.9W (4 HDDs, PoE/PoE+ on), Max. 51.9W (4 HDDs, PoE/PoE+ off )

Hanwha XRN-1610S Overview

The XRN-1610S series network video recorders support 4K UHD resolution and up to 16 channels of video. Additional features include 12MP IP camera recording/display, 16 PoE/PoE+ ports, H.265/H.264/MJPEG streaming, auto-recovery backup, 4 fixed internal SATA HDDs (24TB max.), e-SATA/iSCSI storage, WiseStream compression Technology, dual monitor output, Hallway View support and fisheye dewarping on web and CMS. The XRN-1610S is ideal for small to medium size applications that require high resolution recording, and the bandwidth reducing efficiency of H.265 compression and WiseStream
