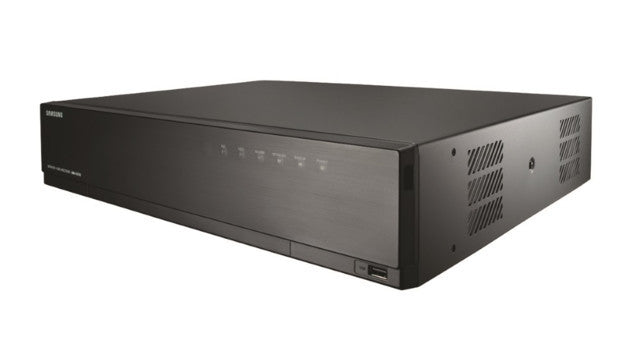

Hanwha XRN-2010 32CH 4K Network Video Recorder

Replaced by the XRN-2010S

Hanwha XRN-2010 Features

• Operating System: Linux
• Camera Compatibility: Hanwha & ONVIF-compatible cameras
• Maximum Number of Cameras/Channels: Up to 32CH / CIF ~ 12MP
• Recording Bandwidth: Max. 256Mbps
• Compression Styles: H.265, H.264, MJPEG, WiseStream (H.265, H.264)
• Display Layout: [Local monitor] 1 / 2V / 3V / 4 / 9 / 16 / 25 / 36 / Sequence, [Web] 1 / 4 / 9 / 16 / 25 / 36 / Sequence
• Event Notification: E-mail, PTZ preset, Alarm out, Buzzer, Monitor out
• Alarm & Event Management: Alarm input (8), Video loss, Camera event (Sensor, MD, Video analytics), VA event (Tampering, Enter / Exit, Passing, Virtual- line,(Dis)Appear, Face detection, Audio Detection), Defocus camera event \ E-mail, PTZ preset, Alarm out, Buzzer, Monitor out
• Scheduled Recording: Yes
• Event Recording: Yes
• Manual Recording: Yes
• Recording Frame Rate: CIF ~ 12MP
• Remote Access with PC Based Web Browser: Yes
• Mobile App Support: iPOLiS mobile viewer for iOS & Android
• Playback Features: Date & Time (Calendar) / Event log list / Text search (POS, ANPR)
• Hard Drive Bays: 8 x 3.5" HDD
• Max TB per HD Bay: 6 TB
• USB Ports: 2ea (Front 1ea / Rear 1ea)
• Ethernet Ports: RJ-45 2ea (LAN/WAN, 1Gbps)
• Display Port(s): 1 x HDMI, 1 x VGA
• PoE Ports: None
• Dimensions (W x H x D): 440.0 x 88.0 x 384.8mm (17.32" x 3.46" x 15.15") (2U)
• Weight: 4.86Kg (10.71 lb) (without HDD)
• Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)
• Operating Humidity: 20 ~ 85% RH
• Power Source / Consumption: 100 ~ 240V AC ±10%, 50/60Hz / 4 ~ 1.5A / Max. 99W (338BTU, 6TB HDD x 8ea)

Hanwha XRN-2010 Overview

The XRN-2010 is a 4K network video recorder, that supports: up to 32 channels, H.265/H.264/MJPEG, ARB & Failover (N+1), 8 fixed internal SATA HDDs (with a maximum internal storage capacity of 48TB), e-SATA/iSCSI storage, WiseStream compression technology, dual monitor video out, maximum camera resolution of 12MP recording/display and fisheye dewarping on WEB and CMS.
