Replaced by the XRN-2011A
Hanwha XRN-2011 Features
- Operating System: Linux
- Camera Compatibility: Hanwha & ONVIF-compatible cameras
- Maximum Number of Cameras/Channels: Up to 32CH / CIF ~ 12MP
- Recording Bandwidth: Max. 256Mbps, Max. 100Mbps (RAID 5 mode)
- Compression Styles: H.265, H.264, MJPEG, WiseStream (H.265, H.264)
- Display Layout: [Local monitor] 1 / 2V / 3V / 4 / 9 / 16 / 25 / 36 / Sequence, [Web] 1 / 4 / 9 / 16 / 25 / 36 / Sequence
- Event Notification: E-mail, PTZ preset, Alarm out, Buzzer, Monitor out
- Alarm & Event Management: Alarm input, Video loss, Camera event (Sensor, MD, Video analytics) \ E-mail, PTZ preset, Alarm out, Buzzer, Monitor out
- Scheduled Recording: Yes
- Event Recording: Yes
- Manual Recording: Yes
- Recording Frame Rate: CIF ~ 12MP
- Remote Access with PC Based Web Browser: Yes
- Mobile App Support: iPOLiS mobile viewer for iOS & Android
- Playback Features: Date & Time (Calendar) / Event log list / Text search
- Hard Drive Bays: 8 x 3.5" HDD
- Max TB per HD Bay: 6 TB
- USB Ports: 2ea (Front 1ea / Rear 1ea)
- Ethernet Ports: RJ-45 2ea (LAN/WAN, 1Gbps)
- Display Port(s): 1 x HDMI, 1 x VGA
- PoE Ports: None
- Dimensions (W x H x D): 440.0 x 88.0 x 384.8mm (17.32" x 3.46" x 15.15") (2U)
- Weight: 5.43Kg (11.97 lb) (without HDD
- Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)
- Operating Humidity: 20 ~ 85% RH
- Power Source / Consumption: 100 ~ 240V AC ±10%, 50/60Hz / 4 ~ 1.5A / Max. 99W (338BTU, 6TB HDD x 8ea)

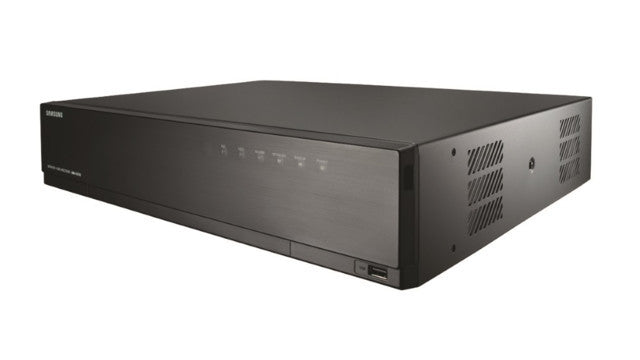

Hanwha XRN-2011 Overview
The XRN-2011 is a 4K network video recorder, that supports: up to 32 channels, H.265/H.264/MJPEG, ARB & Failover (N+1), 8 front Hot swappable SATA HDDs (with a maximum internal storage capacity of 48TB), e-SATA/iSCSI storage, RAID-5, WiseStream compression technology, dual monitor video out, maximum camera resolution of 12MP recording/display and fisheye dewarping on WEB and CMS.
