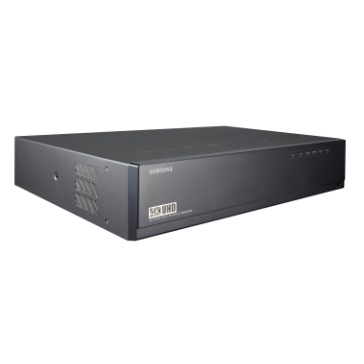

Hanwha XRN-3010 4K H.265 64CH Network Video Recorder

Hanwha/Hanwha XRN-3010 Features

• Operating System: Linux

• Camera Compatibility: Hanwha & ONVIF-compatible cameras
• Maximum Number of Cameras/Channels: Up to 64CH
• Recording Bandwidth: Max. 300Mbps
• Compression Styles: H.265, H.264, MJPEG, WiseStream (H.265, H.264)
• Display Layout: [Local monitor] 1 / 2V / 3V / 4 / 9 / 16 / 25 / 36 / Sequence, [Web] 1 / 4 / 9 / 16 / 25 / 36 / Sequence
• Event Notification: E-mail, PTZ preset, Alarm out, Buzzer, Monitor out
• Alarm & Event Management: Alarm input (8), Video loss, Camera event (Sensor, MD, Video analytics, Defocus
• Scheduled Recording: Yes
• Event Recording: Yes
• Manual Recording: Yes
• Recording Frame Rate: CIF ~ 12MP
• Remote Access with PC Based Web Browser: Yes
• Mobile App Support: iPOLiS mobile viewer for iOS & Android
• Playback Features: Date & Time (Calendar) / Event log list / Text search / ARB search / Smart search (Virtual line w/direction, Enter / Exit)
• Hard Drive Bays: 8 x 3.5" HDD
• Max TB per HD Bay: 8 TB
• USB Ports: 2ea (Front 1, Rear 1)
• Ethernet Ports: RJ-45 2ea (LAN/WAN, 1Gbps)
• Display Port(s): 1 x HDMI, 1 x VGA
• PoE Ports: None
• Dimensions (W x H x D): 440.0 x 88.0 x 384.8mm (17.32" x 3.46" x 15.15") (2U)
• Weight: 4.86Kg (10.71 lb) (without HDD)
• Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)

• Operating Humidity: 20 ~ 85% RH

• Power Source / Consumption: 100 ~ 240V AC ±10%, 50/60Hz / 4 ~ 1.5A / Max. 99W (338BTU, 8TB HDD x 8ea)
• Warranty: 3 years

Hanwha/Hanwha XRN-3010 Overview

Hanwha’s XRN-3010 is a 64CH network video recorder that will allow the connection of up to 64 cameras with up to 12MP resolution each, triple codec recording and playback H.265/H.264/MJPEG, dual monitor output, 4K HDMI output, 8 hot swap hard disc drives. It also supports ARB & Failover (N+1), e-SATA external storage, and WiseStream compression technology.
