Hanwha / Samsung

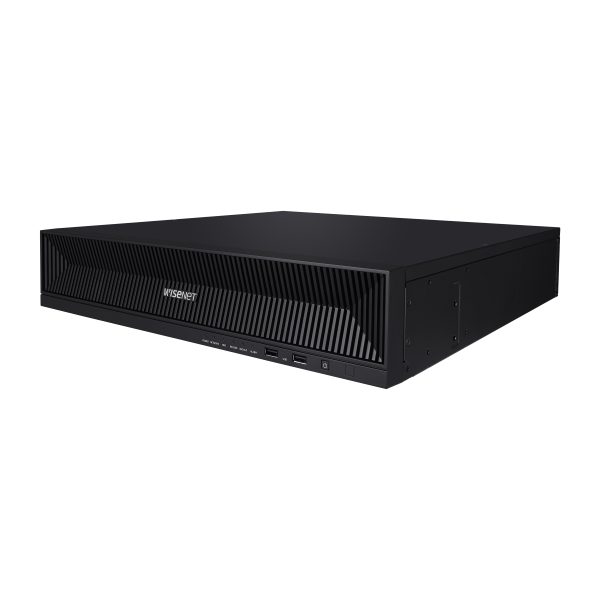

Hanwha XRN-6410B2 64CH 8K 400Mbps H.265 NVR
- Up to 64 channels, Supports up to 32 megapixel camera resolution
- 400Mbps network camera recording
- Support 4K video out on HDMI monitor
- Support dual monitor video out
- H.265, H.264, MJPEG compression
- WiseStream support
- Maximum 8 internal HDDs
- ARB & failover(N+1), dynamic event, Wisenet AI metadata search support
|
Display |
|
|
Network camera |
|
|
Network camera > Inputs |
Max. 64CH |
|
Network camera > Resolution |
32MP ~ CIF |
|
Network camera > Protocols |
SUNAPI, ONVIF |
|
Decoding |
|
|
Decoding > Local Display |
[Dual Display] HDMI 1: 3840 x 2160 (30Hz) HDMI 2: 1920x1080 (60Hz) |
|
Decoding > Multi Screen Display |
[Local Monitor] 1/ 2H/ 2V/ 3V/ 4/ 6/ 8/ 9/ 13/ 16/ 25/ 36/ 64/ Sequence [Web] 1/ 2H/ 2V/ 3V/ 4/ 6/ 8/ 9 |
|
Decoding > Resolution |
32M(15fps, H.265 Only), 12M(30fps, H.265 Only), 8.3M(120fps), 1080p(480fps), 720P(960fps), D1(960fps) |
|
Performance |
|
|
Operating System |
|
|
Operating System > Embedded |
Linux |
|
Record |
|
|
Record > Compression |
H.265, H.264, MJPEG |
|
Record > Recording Bandwidth |
Max. 400Mbps |
|
Record > Resolution |
32MP ~ CIF |
|
Record > Mode |
Normal, Dual Stream, Schedule(Continuous/Event), Event (Pre/Post), Bookmark |
|
Record > Event Trigger |
Alarm Input, Video Loss, Camera Event(Sensor, MD, Video Analytics, Defocus, Audio), Dynamic Event |
|
Record > Event Action |
e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out |
|
Search & Play |
|
|
Search & Play > Playback Bandwidth |
Max. 32Mbps |
|
Search & Play > User |
Max. 4 Users (Local 1, Remote 3) |
|
Search & Play > Simultaneous playback |
Max. 112CH(Local 64CH, Remote 16CH per user) |
|
Search & Play > Fisheye Dewarping |
CMS |
|
Search & Play > Mode |
Date & Time(Calendar), Event list, Text Search, Smart Search |
|
Search & Play > Resolution |
CIF ~ 32MP (Up to H.264 9MP, H.265 32MP) |
|
Search & Play > Playback Control |
Fast/Slow Forward / Backward, Move one step Up / Down |
|
Storage |
|
|
Storage > Supported HDD |
Up to 10TB |
|
Storage > HDD Slot |
SATA 8ea(Max. 80TB) |
|
Storage > External |
iSCSI storage |
|
Backup |
|
|
Backup > File backup |
BU/Exe(GUI), JPG/AVI(Network) |
|
Backup > Function |
Multi channel(Up to 16CH) Play, Date-Time/Title display |
|
Network |
|
|
Protocol |
IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client) |
|
DDNS |
Hanwha DDNS |
|
Transmission Bandwidth |
Max. 400Mbps |
|
Audio |
|
|
Audio > Input/Output |
64 CH(network) |
|
Audio > Compression |
G.711, G.726, AAC(16/48KHz) |
|
Audio > Audio Communication |
2-Way |
|
Max Remote Users |
Search(3), Live Unicast(10), Multicast(20) |
|
Security |
IP address filtering, User access Log, 802.1x, Encryption Device certificate(Hanwha Techwin Root CA), Signed firmware |
|
Web viewer |
|
|
Web viewer > Supported OS |
Windows 10, macOS 10.13 |
|
Web viewer > Supported browser |
Google Chrome, Microsoft Edge, Mac Safari |
|
Viewer Software |
WAVE, SSM, Webviewer, Smart Viewer, Wisenet mobile Support SDK/CGI(SUNAPI) for integration to 3'rd party VMS |
|
Functions |
|
|
Camera Setup |
|
|
Camera Setup > Register |
Auto, Manual |
|
Camera Setup > Item |
IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup (4, 8 point polygon) Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye Dewarping Mode, Hallway View Setup, Camera Webpage |
|
PTZ |
|
|
PTZ > Control |
Via GUI, Webviewer, SPC-2000 |
|
PTZ > Preset |
300 Presets |
|
Smart phone |
|
|
Smart phone > Support Model |
iOS, Android |
|
Smart phone > Protocol Support |
RTP, RTSP, HTTP, CGI(SUNAPI) |
|
Smart phone > Control |
Live 16CH(Multi-Profile Support), Playback 4CH |
|
Smart phone > Max. Remote Users |
Search(3), Live Unicast(10) |
|
Redundancy |
|
|
Redundancy > Failover |
N+1 |
|
Redundancy > ARB |
Support |
|
Easy configuration |
P2P(QR code) |
|
Interface |
|
|
Front |
|
|
Front > Indicator |
HDD, Alarm, Power, Record, Backup, Network |
|
Storage |
OK |
|
Reset |
OK |
|
HDD Key Lock |
OK |
|
HDMI |
2EA ( Playback/Setup → HDMI1) HDMI1 : 3840x2160 30Hz HDMI2 : 1920x1080 60Hz |
|
Audio |
Out 1EA |
|
Ethernet |
RJ-45 3EA (LAN/WAN, 1Gbps) |
|
Alarm |
In 8EA, Out 4EA |
|
USB |
4EA(Front 2 x USB 2.0, Rear 2 x USB 3.0) |
|
Power inlet |
AC 1EA |
|
System |
|
|
Log |
|
|
Log > Log List |
Max. 100,000 (System Log, Event Log each) |
|
System Control |
Mouse, Web, Controller (SPC-2000) |
|
Language |
English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Vietnamese |
|
Environmental |
|
|
Operating Temperature |
0°C to +40°C(32℉ to 104℉) |
|
Operating Humidity |
20% ~ 85% RH |
|
Electrical |
|
|
Power Input |
100 ~ 240 VAC ±10%; 50/60 Hz, 1.5A (Single SMPS) |
|
Power Consumption |
Max. 138W (with 10TB HDD 8EA) |
|
Mechanical |
|
|
Color / Material |
Black / Metal |
|
Dimension (WxHxD) |
438 x 86 x 434.9 mm |
|
Weight |
7.5Kg (16.5 lb, Except HDD) |
|
Intelligent Analysis |
|
|
AI Search |
|
|
AI Search > Object Attribute |
Compatible for Wisenet AI Camera |
