i-PRO

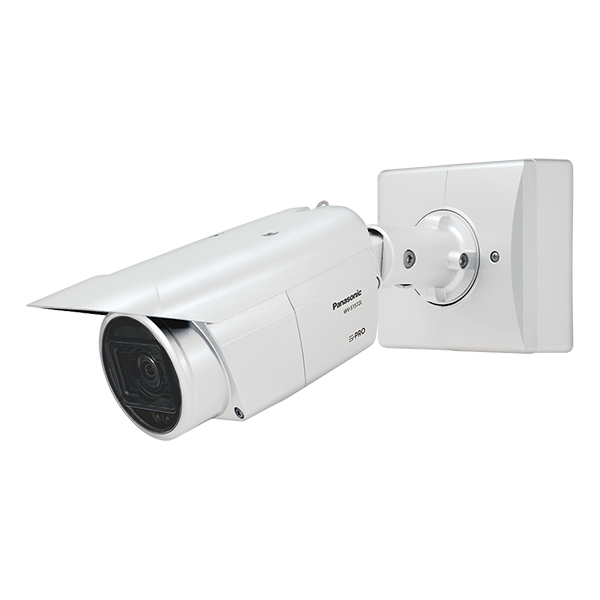

i-PRO WV-S1572L 4K OUTDOOR VANDAL RESISTANT BOX CAMERA, H.265/H.264/MJPEG,
Designed to equip security professionals with the best possible CCTV footage for evidence, the WV-S1572L captures high quality 4K images even in very challenging, dynamic and exposed environments that require reliable hardware. To adjust key camera settings automatically in real time, improved intelligent auto (iA) monitors scene dynamics and motion, and captures clear images while reducing distortion such as motion blur on moving objects. In order to save bandwidth at 50%* lower than existing cameras and maintain image quality, the improved Smart Coding technology optimizes video compression through captured scene. Extreme image quality allows evidence to be captured even under challenging conditions
- True 4K lens and large image sensor realize wide area surveillance with improved high-quality images
- Auto shutter speed control for moving objects
- Outstanding low-light performance in true color with low noise for nighttime applications
- Built-in IR LED to produce a clear monochrome image in 0 lux conditions with 40 m (131 feet) irradiation distance
- Environmental durability: IP66, IK10
Extreme bandwidth compression with evolved Smart Coding
- Longer recording and less storage requirements compared to traditional H.265 compression techniques
- Improved video compression technology detects objects such as faces, humans, vehicles and motorcycles / bicycles within the image and compresses the areas without objects in order to reduce transmitted data while maintaining image quality
Easy installation
- Allows you to connect the network cable to the camera body simply by opening a part of the package, which saves you time and workspace, especially when handling multiple cameras
*Compared to Smart Coding OFF with H.265
Image sensor | 1/1.8 CMOS |
Supported Video Codec | H.265, H.264, JPEG |
Max. Resolution | 3,840 x 2,160 |
Max. FPS H.264 | 30 |
Super Dynamic / WDR / BLC | 132dB |
Day/Night | Yes |
ABF (Auto Back Focus) / Focus Assist | |
IR LED | Yes |
Min. Illumination Color (lx) | 0.09 |
Min. Illumination B/W (lx) | 0.05 / 0 (w/IR-LED) |
Lens | 4.3 mm – 8.6 mm |
ANGULAR FIELD OF VIEW | H: 53-104 DEG. V: 30-56 DEG. |
Pan/Pan Range | -180 - +180 deg. |
Tilt/Tilt Range | 0 - +100 deg. |
Optical Zoom | 2x (motorized) |
With Extra Zoom | 6x (when resolution is 1280 x 720) |
Audio | Yes |
External I/O | 3/2 |
Vandal Resistant | IK10 (IEC62262) |
Water and Dust Resistance | IP66 (IEC60529), Type 4X(UL50), NEMA 4X |
Rain Wash Coating | |
Smart Coding | Yes |
Temperature (degree, Celsius) Max | 60 |
Temperature (degree, Celsius) min | -40 |
Power Source | PoE, 12V DC |
4K OUTDOOR VANDAL RESISTANT BOX CAMERA, H.265/H.264/MJPEG, 4.3-8.6MM 2.0X MOTORIZED ZOOM LENS, IR LED, IP66, IK10, 5 YEAR WARRANTY, VIDEO INSIGHT 7.8 OR HIGHER
