i-PRO

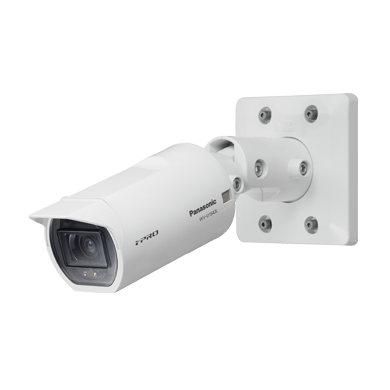

i-PRO WV-U1542L 4MP Outdoor Vandal Box Network Camera, H.265, V/F
Panasonic WV-U1542L captures the highest quality 4MP resolution images in even very challenging and dynamic environments. Intelligent Auto (iA) monitors scene dynamics and motion to adjust key camera settings automatically in real-time reducing distortion such as motion blur on moving objects. Adopting H.265 Smart Coding technology, bandwidth efficiency is intelligently increased for longer recording and less storage.
| Image sensor | 1/2.7 type CMOS |
| Supported Video Codec | |
| Max. Resolution | |
| Max. FPS H.264 | 30 |
| Super Dynamic / WDR / BLC | 102dB |
| Day/Night | ICR |
| ABF (Auto Back Focus) / Focus Assist | Auto Focus |
| IR LED | YES |
| Min. Illumination Color (lx) | 0.3 |
| Min. Illumination B/W (lx) | 0.12 |
| Lens | 2.9 mm – 7.3 mm |
| ANGULAR FIELD OF VIEW | (16:9) H: 44-103 DEG. V: 25-57 DEG. |
| Pan/Pan Range | |
| Tilt/Tilt Range | -100 - +100 deg. |
| Optical Zoom | 2.5x |
| With Extra Zoom | 2.5x-3.3x |
| Audio | - |
| External I/O | - |
| Vandal Resistant | IK10 (IEC 62262) |
| Water and Dust Resistance | IP66 (IEC 60529) |
| Rain Wash Coating | - |
| Smart Coding | Yes |
| Temperature (degree, Celsius) Max | 50 |
| Temperature (degree, Celsius) min | -30 |
| Power Source | PoE (IEEE802.3af compliant) |
4MP Outdoor Vandal Box Network Camera, H.265, V/F lens with IR-LED
