Panasonic WV-U2132L captures the highest quality images in even very challenging and dynamic environments. Intelligent Auto (iA) monitors scene dynamics and motion to adjust key camera settings automatically in real-time reducing distortion such as motion blur on moving objects. By adopting H.265 Smart Coding technology, bandwidth efficiency is intelligently increased for longer recording and less storage.
SPECIFICATIONS
| Image sensor | 1/3 type CMOS |
| Supported Video Codec | H.265, JPEG |
| Max. Resolution | 1920×1080 |
| Max. FPS H.264 | 30 |
| Super Dynamic / WDR / BLC | 120 dB |
| Day/Night | ICR |
| ABF (Auto Back Focus) / Focus Assist | Auto Focus |
| IR LED | YES |
| Min. Illumination Color (lx) | 0.1 |
| Min. Illumination B/W (lx) | 0.04 |
| Lens | 2.9 mm – 7.3 mm |
| ANGULAR FIELD OF VIEW | (16:9) H: 43-100 DEG. V: 24-56 DEG. (4:3) H: 36-83 DEG. V: 27-62 DEG. |
| Pan/Pan Range | |
| Tilt/Tilt Range | |
| Optical Zoom | 2.5x |
| With Extra Zoom | 2.5x - 3.8x |
| Audio | - |
| External I/O | - |
| Vandal Resistant | - |
| Water and Dust Resistance | |
| Rain Wash Coating | - |
| Smart Coding | YES |
| Temperature (degree, Celsius) Max | 50 |
| Temperature (degree, Celsius) min | -10 |
| Power Source | PoE (IEEE802.3af compliant) |

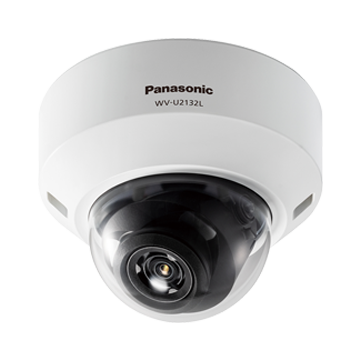

FullHD Indoor Dome Network Camera, H.265, V/F lens with IR-LED
