i-PRO

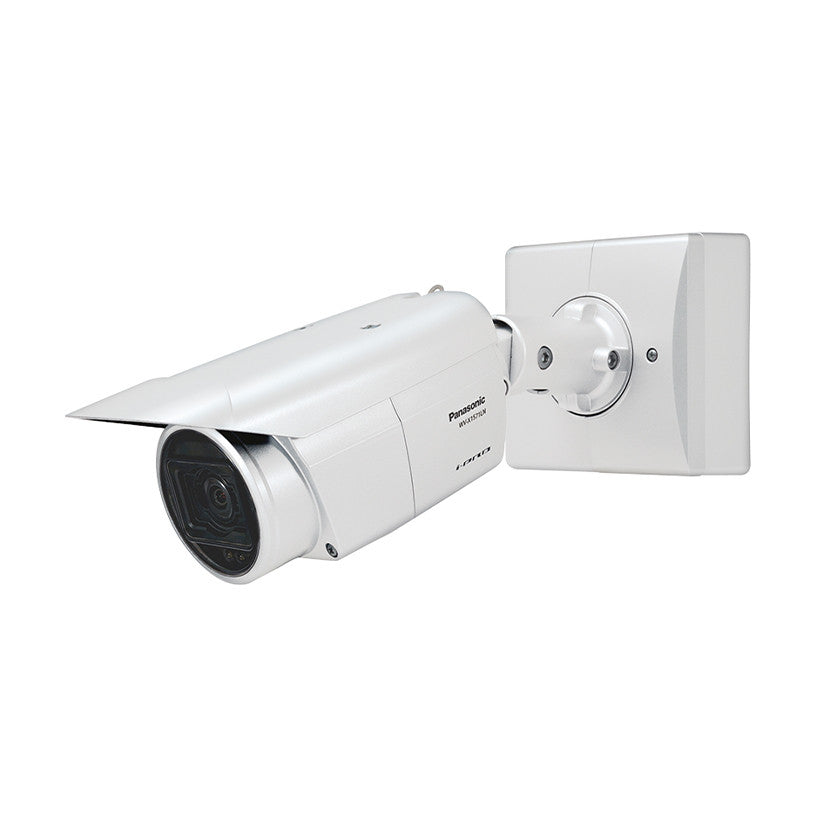

i-PRO WV-X1571LN 4K H.265 OUTDOOR FIXED BOX CAMERA WITH AI ENGINE W/IR,
WV-X1571LN has onboard AI functionality. AI-based high precision analysis helps surveillance operations and crime prevention operations more efficiently, whereas these operations previously required dedicated manpower. There are 3 AI functions available through the camera: detecting suspicious changes in captured scenes, optimizing the image settings of the camera (based on captured scene analysis) for better image usability, and optimizing video compression through captured scenes to save bandwidth at 50%* lower than existing cameras while maintaining image quality.
*Compared to Smart Coding OFF with H.265
Optimization of image quality and data compression using AI
- AI detects, identifies and determines movement
- AI determines human faces and captures them in the most visible state
- AI determines moving objects, identifies where there is no movement, and performs efficient data compression
SPECIFICATIONS
| Image sensor | 1/1.8 type CMOS |
| Supported Video Codec | H.265, H.264, JPEG |
| Max. Resolution | 3840x2160 |
| Max. FPS H.264 | 30 |
| Super Dynamic / WDR / BLC | 132 dB |
| Day/Night | Yes |
| ABF (Auto Back Focus) / Focus Assist | Auto Focus |
| IR LED | |
| Min. Illumination Color (lx) | 0.09 |
| Min. Illumination B/W (lx) | 0.05 |
| Lens | 4.3 mm - 8.6 mm |
| ANGULAR FIELD OF VIEW | (16:9) H: 53-104 DEG. V: 30-56 DEG. |
| Pan/Pan Range | |
| Tilt/Tilt Range | |
| Optical Zoom | 2.0x (motorized) |
| With Extra Zoom | 6.0x |
| Audio | 3.5 mm stereo mini jack |
| External I/O | |
| Vandal Resistant | IK10 |
| Water and Dust Resistance | IP66 |
| Rain Wash Coating | - |
| Smart Coding | YES |
| Temperature (degree, Celsius) Max | 60 |
| Temperature (degree, Celsius) min | -40 |
| Power Source | PoE (IEEE802.3af compliant) |
4K H.265 OUTDOOR FIXED BOX CAMERA WITH AI ENGINE W/IR, CLEARSIGHT DOME
