Extreme image quality for evidence capturing under challenging conditions
- Clear and less distorted image of the person's face and objects at the edge of the fisheye
- Instant response to sudden light changes like tunnel entry and exit
- Auto Shutter speed control for fast moving objects
- Super Dynamic 108dB for backlit situations and shadows on night streets
Extreme H.265 compression with new Smart Coding
- Longer recording and less storage space compared to any H.264 based compression techniques
- New self-learning ROI* encoding (Auto VIQS) dynamically detects motion areas to keep vehicles and humans in good picture quality while lowering your bandwidth * Region of Interest
Extreme Data Security
- Full encryption SD card edge recording to keep your data safe
- FIPS 140-2 Level 1 compliant
- Full end-to-end system encryption with supported VMS and devices to protect from IP snooping/spoofing and detect data alteration
Complete with powerful analytics built-in*
- Heat map : Visualization of people's traffic pattern and staying times
- People Counting : Statistics data on the number of people entering and leaving a specific zone
- MOR (Moving Object Remover) : Monitoring of only the surrounding environment by removing people and other moving objects from video *To enable analytics, please add the optional WV-SAE200 software.
SPECIFICATIONS
| Image sensor | 1/2 MOS |
| Supported Video Codec | H.265 / H.264 / JPEG |
| Max. Resolution | 9MP |
| Max. FPS H.264 | 30 |
| Super Dynamic / WDR / BLC | Enhanced Super Dynamic |
| Day/Night | Electrical |
| ABF (Auto Back Focus) / Focus Assist | - |
| IR LED | - |
| Min. Illumination Color (lx) | 0.3 |
| Min. Illumination B/W (lx) | 0.04 |
| Lens | f=1.4mm, F1.9 |
| ANGULAR FIELD OF VIEW | H: 180 DEG. V: 180 DEG |
| Pan/Pan Range | - |
| Tilt/Tilt Range | - |
| Optical Zoom | - |
| With Extra Zoom | - |
| Audio | - |
| External I/O | - |
| Vandal Resistant | - |
| Water and Dust Resistance | - |
| Rain Wash Coating | - |
| Smart Coding | Yes |
| Temperature (degree, Celsius) Max | +40°C |
| Temperature (degree, Celsius) min | -0°C |
| Power Source | PoE, 12V DC |

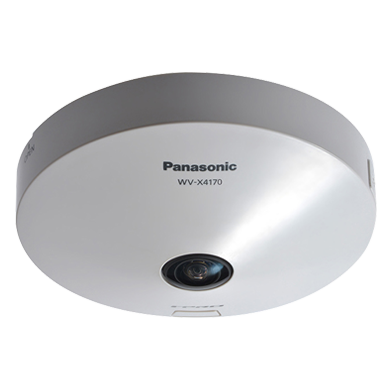

9MP 360 INDOOR DOME H.265
