Extreme image quality for evidence capturing under challenging conditions
- Clear and less distorted image of the person's face and objects at the edge of the fisheye
- Instant response to sudden light changes like tunnel entry and exit
- Auto Shutter speed control for fast moving objects
Extreme bandwidth compression with H.265 Smart Coding
- Longer recording and less storage space compared to any H.264 based compression techniques
- New self-learning ROI* encoding (Auto VIQS) dynamically detects motion areas to keep vehicles and humans in good picture quality while lowering your bandwidth * Region of Interest
Extreme Data Security
- Full encryption SD card edge recording to keep your data safe
- FIPS 140-2 CAVP compliant *Using encryption module standardization by FIPS publication 140-2
- Full end-to-end system encryption with supported VMS and devices to protect from IP snooping/spoofing and detect data alteration
Complete with powerful analytics built-in*
- Heat map: Visualization of people's traffic pattern and staying times
- People Counting: Statistics data on the number of people entering and leaving a specific zone
- MOR (Moving Object Remover): Monitoring of only the surrounding environment by removing people and other moving objects from video *To enable analytics, please add the optional WV-SAE200 software.

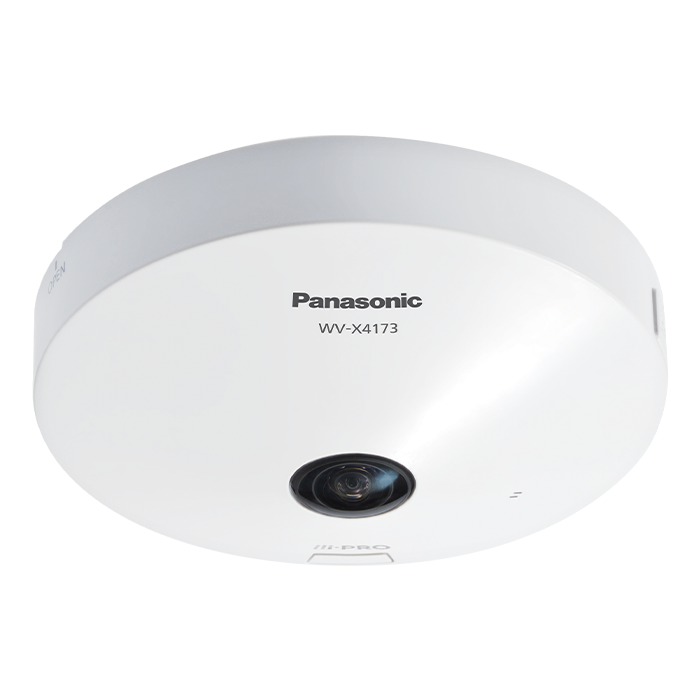

12MP SENSOR INDOOR 360 DOME CAMERA, H.265/H.264/MJPEG, 1.4MM FISHEYE LENS, 2992X2992PIXEL UP TO 30FPS, AUDIO IN/OUT, BUILT-IN MIC, 5 YEAR WARRANTY, VIDEO INSIGHT 7.8 OR HIGHER
SPECIFICATIONS
Image sensor | 1/2 type 12MP MOS |
Supported Video Codec | H.265 / H.264 / JPEG |
Max. Resolution | 9MP |
Max. FPS H.264 | 30 |
Super Dynamic / WDR / BLC | 84 dB |
Day/Night | Auto |
ABF (Auto Back Focus) / Focus Assist | - |
IR LED | - |
Min. Illumination Color (lx) | 0.3 |
Min. Illumination B/W (lx) | 0.2 |
Lens | f=1.4mm, F1.9 |
ANGULAR FIELD OF VIEW | H: 183 DEG. V: 183 DEG |
Pan/Pan Range | - |
Tilt/Tilt Range | - |
Optical Zoom | - |
With Extra Zoom | - |
Audio | 2-Way |
External I/O | 3/2 |
Vandal Resistant | - |
Water and Dust Resistance | - |
Rain Wash Coating | - |
Smart Coding | Yes |
Temperature (degree, Celsius) Max | +50°C |
Temperature (degree, Celsius) min | -10°C |
Power Source | PoE, 12V DC |
