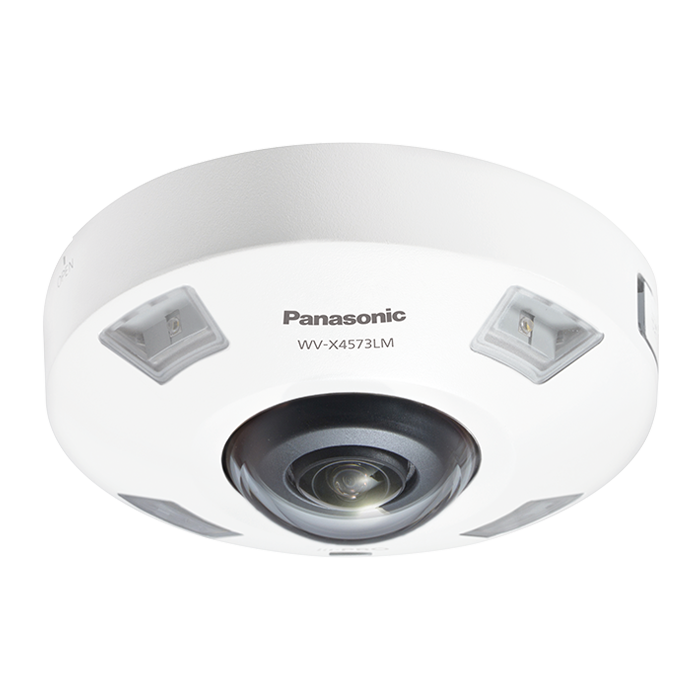

i-PRO WV-X4573LM 12MP SENSOR OUTDOOR VANDAL RESISTANT 360 DOME CAMERA,
Limited Availability
Extreme image quality for evidence capturing under challenging conditions
- Clear and less distorted image of the person's face and objects at the edge of the fisheye
- Instant response to sudden light changes like tunnel entry and exit
- Auto Shutter speed control for fast moving objects
- Built-in IR LED to produce a clear monochrome image in zero lux conditions with 10 m (33 feet) irradiation distance
- Environmental durability : EN50155, IP66, IK10, 50J and dehumidification device
Extreme bandwidth compression with new H.265 Smart Coding
- Longer recording and less storage space compared to any H.264 based compression techniques
- New self-learning ROI* encoding (Auto VIQS) dynamically detects motion areas to keep vehicles and humans in good picture quality while lowering your bandwidth * Region of Interest
Extreme Data Security
- Full encryption SD card edge recording to keep your data safe
- FIPS 140-2 CAVP compliant *Using encryption module
- Full end-to-end system encryption with supported VMS and devices to protect from IP snooping/spoofing and detect data alteration
Complete with powerful analytics built-in
- Heat map : Visualization of people's traffic pattern and staying times
- People Counting : Statistics data on the number of people entering and leaving a specific zone
- MOR (Moving Object Remover) : Monitoring of only the surrounding environment by removing people and other moving objects from video
SPECIFICATIONS
Image sensor | 1/2 MOS |
Supported Video Codec | H.265 / H.264 / JPEG |
Max. Resolution | 9MP |
Max. FPS H.264 | 30 |
Super Dynamic / WDR / BLC | 84dB |
Day/Night | - |
ABF (Auto Back Focus) / Focus Assist | ABF |
IR LED | Yes |
Min. Illumination Color (lx) | 0.3 |
Min. Illumination B/W (lx) | 0.04 |
Lens | f=1.4mm, F1.9 |
ANGULAR FIELD OF VIEW | H: 183 DEG. V: 183 DEG |
Pan/Pan Range | - |
Tilt/Tilt Range | - |
Optical Zoom | - |
With Extra Zoom | - |
Audio | 2-Way (No Built-in MIC) |
External I/O | 3/2 |
Vandal Resistant | IK10 (IEC62262), 50J (IEC60068-2-75) |
Water and Dust Resistance | IP66, Type 4X (UL50), NEMA 4X |
Rain Wash Coating | - |
Smart Coding | Yes |
Temperature (degree, Celsius) Max | +60/50°C (w/IR-LED) |
Temperature (degree, Celsius) min | -40°C |
Power Source | PoE, 12V DC |
12MP SENSOR OUTDOOR VANDAL RESISTANT 360 DOME CAMERA, H.265/H.264/MJPEG, 1.4MM FISHEYE LENS, 2992X2992PIXEL UP TO 30FPS, IR LED, IP66, IK10, AUDIO IN/OUT, M12 CONNECTOR, 5 YEAR WARRANTY, VIDEO INSIGHT 7.8 OR HIGHER
