- Extreme Super Dynamic Range - 144dB
- Continuous 360° pan with 40x optical zoom
- ClearSight Dome Coating
- IP66, NEMA-4X, IK10 compliant
- Smart Coding - Reduce bandwidth usage up to 75%
- Vehicle Analytics Option (WV-XAE100)

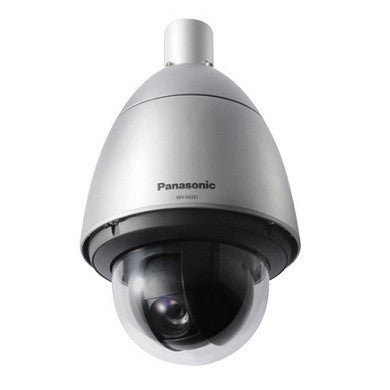

This Full HD (1,920 x 1,080) / 60 fps PTZ Network Camera is based on the concept of "i-PRO EXTREME".
- Full-HD 1920x1080 60fps
- Intelligent Zoom Stabilization with 40x optical zoom
- ClearSight Coating is a special coating applied to the surface of the transparent cover that makes it difficult for water droplets to adhere to the dome cover.
- Durable Pan/Tilt gear mechanism
- Intelligent Auto (iA) feature provides increased discernibility even in environments with poor visibility.
- Extreme Super Dynamic technologies deliver 144 dB wide dynamic range.
- Color night vision (0.001 to 0.015 lx)
- IP66, IK10 certified
- Wider operating temperature range -50 °C to +60 °C (-58 °F to +140 °F)
SPECIFICATIONS
| Image sensor | 1/2.8 MOS |
| Supported Video Codec | H.265 / H.264 / JPEG |
| Max. Resolution | Full HD (1080p) |
| Max. FPS H.264 | 60 |
| Super Dynamic / WDR / BLC | Enhanced Super Dynamic |
| Day/Night | Day / Night (ICR) |
| ABF (Auto Back Focus) / Focus Assist | - |
| IR LED | - |
| Min. Illumination Color (lx) | 0.015 |
| Min. Illumination B/W (lx) | 0.006 |
| Lens | f=4.25-170mm, F1.6 |
| ANGULAR FIELD OF VIEW | H: 2.1-65 DEG. V: 1.2-39 DEG. |
| Pan/Pan Range | 360° Endless |
| Tilt/Tilt Range | -15 - +195 deg. |
| Optical Zoom | 40x |
| With Extra Zoom | - |
| Audio | 2-Way (No Built-in MIC) |
| External I/O | 3/2 |
| Vandal Resistant | IEC62262, IK10 |
| Water and Dust Resistance | IP66, NEMA 4X |
| Rain Wash Coating | ClearSight Coating |
| Smart Coding | Yes |
| Temperature (degree, Celsius) Max | 60 |
| Temperature (degree, Celsius) min | -50 |
| Power Source | PoE+, 24V AC, PoE Injector |
1080P H.265 Outdoor PTZ 40X Zoom
