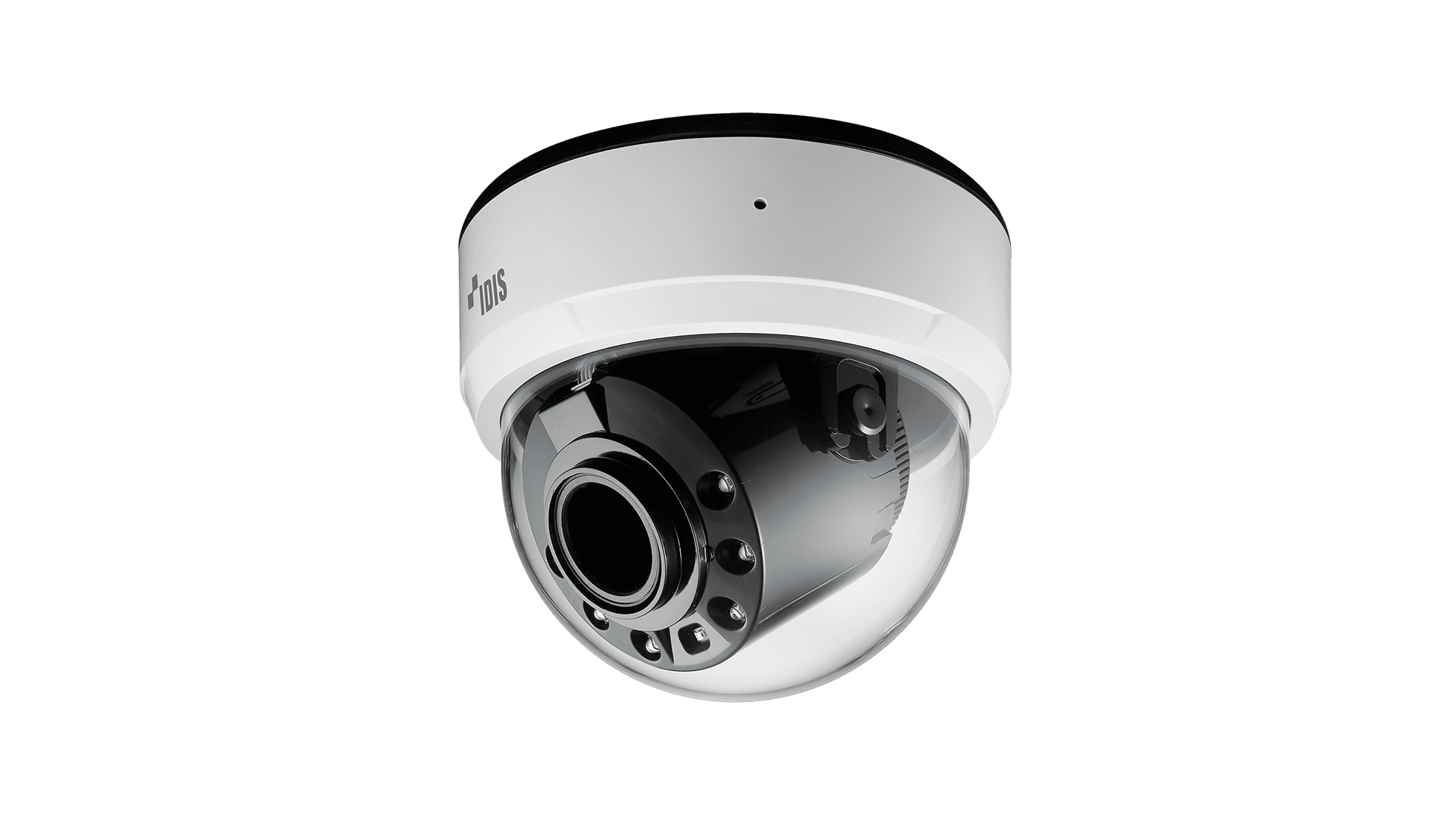

IDIS DC-D4236RX-W 2M Indoor IR Dome Camera,2.8 ~ 12mm,12VDC, PoE IEEE 802.3af
Quantity:
- Easy installation with DirectIP NVR
- Full HD (1080p) resolution
- Motorized Vari-focal lens (f=2.8 - 12mm)
- micro SD/SDHC/SDXC
- Two-way audio
- Alarm in / out
- PoE (IEEE 802.3af Class 2)
- Day and night (ICR)
- True wide dynamic range (WDR)
- IR LED (30m / 98.4 ft (6ea))
- 3-axis mechanical design for installation
- Supports ONVIF
| Video | |
| Image Sensor | 1/2.8" CMOS |
| Max. Resolution | 1920 x 1080 |
| Scanning Mode | Progressive Scan |
| Lens Type | Motorized Vari-focal |
| Focal Length | 2.8 ~ 12mm |
| Aperture | F1.4 ~ F2.8 |
| Iris Control | DC Iris |
| Angular Field of View | Wide : 98º(H), 51º(V), 116º(D) Tele : 33º(H), 19º(V), 38º(D) |
| Min. Illumination | COLOR : 0.1 lux @ F1.4 B/W : 0 lux (IR LED ON) |
| Dynamic Range | 120dB (True WDR) |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
| Day and Night | Yes (ICR) |
| IR Distance (LEDs) | 30m / 98.4 ft (6ea) |
| Image Setting | Exposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control) |
| Backlight Compensation | BLC |
| Mirroring / Pivot | Horizontal / Vertical / Pivot |
| Image Stabilizer | - |
| De-fog | Yes |
| Privacy Masking | 8 Zones |
| Intelligent Video | Video Motion Detection, Active Tampering Alarm, Trip Zone |
| Video Out | 1 CVBS |
IDIS, 2M IR Dome Camera, Indoor, H.265@30ips, 1/2.8" CMOS, 2.8 ~ 12mm, DirectIP 2.0, ONVIF, Alarm in / out, Audio in / out, Micro SD/SDHC/SDXC (Up to 512GB),1-CVBS, 12V=, 0.64A, 7.7W, PoE IEEE 802.3af (Class 3), 7.6W, IR (6ea) 30m / 98.4 ft, White Base
