IDIS

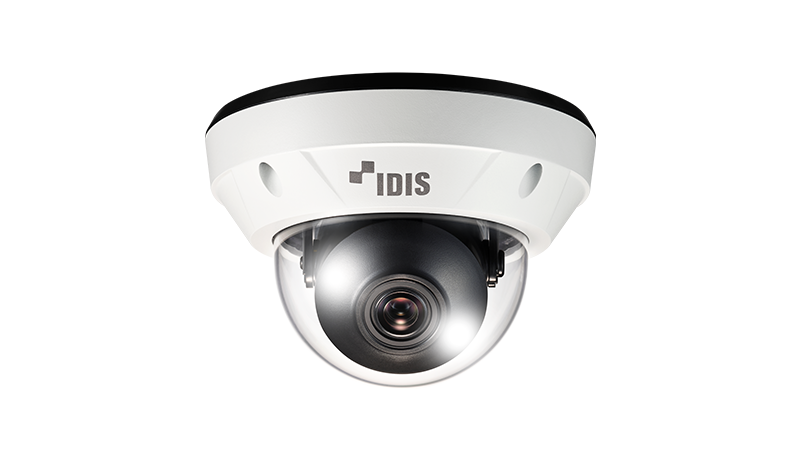

IDIS DC-D4246WX 2M Outdoor Dome Camera,7 ~ 22mm,12VDC, PoE IEEE 802.3af (Class 3), H.265
Quantity:
Choose options
Quantity:
- Easy installation with DirectIP NVR
- Full HD (1080p) resolution
- Motorized Vari-focal (f=7 - 22mm)
- micro SD/SDHC/SDXC
- Audio in / out
- Alarm in / out
- PoE (IEEE 802.3af Class 3)
- Day and night (ICR)
- True wide dynamic range (WDR)
- Supports ONVIF
| Video | |
| Image Sensor | 1/2.8" CMOS |
| Max. Resolution | 1920 x 1080 |
| Scanning Mode | Progressive Scan |
| Lens Type | Motorized Vari-focal |
| Focal Length | 7 ~ 22mm |
| Aperture | F1.4 ~ F2.8 |
| Iris Control | DC Iris |
| Angular Field of View | Wide : 40.5º(H), 22º(V), 47.3º(D) Tele : 16.8º(H), 9.5º(V), 19.3º(D) |
| Min. Illumination | COLOR : 0.1 lux @ F1.4 B/W : 0.01 lux @ F1.4 |
| Dynamic Range | 120dB (True WDR) |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
| Day and Night | Yes (ICR) |
| IR Distance (LEDs) | - |
| Image Setting | Exposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control) |
| Backlight Compensation | BLC |
| Mirroring / Pivot | Horizontal / Vertical / Pivot |
| Image Stabilizer | - |
| De-fog | Yes |
| Privacy Masking | 8 Zones |
| Intelligent Video | Video Motion Detection, Active Tampering Alarm, Trip Zone |
| Video Out | - |
IDIS, 2M Dome Camera, Vandal IK 10, IP67, H.265@30ips, 1/2.8" CMOS, 7 ~ 22mm, DirectIP 2.0, ONVIF Profile S/T, Alarm in/out, Audio In / Out, Micro SD/SDHC/SDXC (Up to 512GB), 12V=, 0.64A, 7.7W, PoE IEEE 802.3af (Class 3), 7.8W
