IDIS

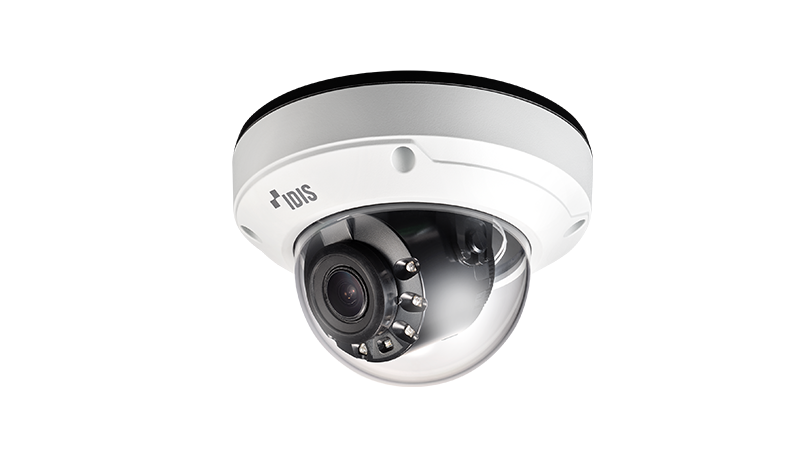

IDIS DC-D4248HRA 2M Outdoor AI Dome Camera (LightMaster NIR),7 ~ 22mm,12VDC, PoE IEEE 802.3af (Class 3), H.265
Quantity:
- Easy installation with DirectIP NVR
- micro SD/SDHC/SDXC
- Alarm in / out
- Audio in / out
- PoE (IEEE 802.3af Class 3)
- IR LED (50m / 164 ft (6ea))
- IK10, IP67
- IDIS Deep-Learning Analytics (IDLA)
| Video | |
| Image Sensor | 1/2.8" CMOS |
| Max. Resolution | 1920 x 1080 |
| Scanning Mode | Progressive Scan |
| Lens Type | Motorized Vari-focal |
| Focal Length | 7 ~ 22mm |
| Aperture | F1.4 ~ F2.8 |
| Iris Control | DC Iris |
| Angular Field of View | Wide : 40.5º(H), 22º(V), 47.3º(D) Tele : 16.8º(H), 9.5º(V), 19.3º(D) |
| Min. Illumination | COLOR : 0.1 lux @ F1.4 B/W : 0 lux (IR LED ON) |
| Dynamic Range | 120dB (True WDR) |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
| Day and Night | Yes (ICR) |
| IR Distance (LEDs) | 50m / 164 ft (6ea) |
| Image Setting | Exposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control) |
| Backlight Compensation | - |
| Mirroring / Pivot | Horizontal / Vertical / Pivot |
| Image Stabilizer | - |
| De-fog | Yes |
| Privacy Masking | 8 Zones |
| Intelligent Video | Object Metadata: Human, Vehicle, Face IDLA: Object Detection, Intrusion, Loitering, Line Crossing, Face Detection ETC: Video Motion Detection, Active Tampering Alarm |
| Video Out | - |
IDIS, 2M AI Dome Camera (LightMaster NIR),Vandal IK 10, IP67 w/Heater, H.265@30ips, 1/2.8" CMOS, 7 ~ 22mm, DirectIP 2.0, ONVIF, Alarm in/out, Audio In / Out, AI: Object Detection, Intrusion, Loitering, Line Crossing, Face Detection, Micro SD/SDHC/SDXC (Up to 512GB), 12V=, 1.1A, 13.2W
PoE IEEE 802.3af (Class 3) 8.3W, IR (6ea) 50m / 164 ft
