IDIS

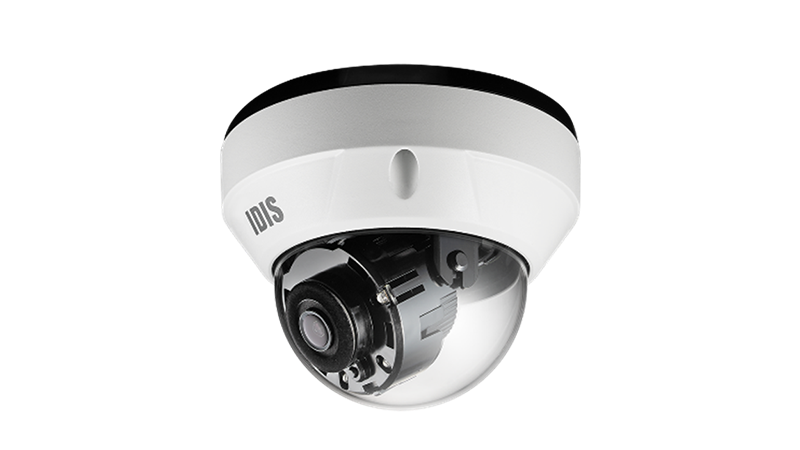

IDIS DC-D4516WRX4.0 5M Outdoor IR Dome Camera, 4.0mm, PoE (IEEE 802.3af Class 3), H.265
Quantity:
Choose options
Quantity:
- 5MP (2592x1944) resolution
- Fixed-focal lens (f=4.0mm)
- micro SD/SDHC/SDXC
- Alarm in / out
- IK10 / IP67 supports
- Day and night (ICR)
- True wide dynamic range (WDR)
- IR LED (30m / 98.4 ft (4ea))
- PoE (IEEE 802.3af Class 3)
- 3-axis mechanical design for installation
- Easy installation with DirectIP NVR
- Supports ONVIF
| Video | |
| Image Sensor | 1/2.8" CMOS |
| Max. Resolution | 2592 x 1944 |
| Scanning Mode | Progressive Scan |
| Lens Type | Fixed-focal |
| Focal Length | f=4.0mm |
| Aperture | F2.15 |
| Iris Control | Fixed Iris |
| Angular Field of View | 79.2° (H) 56.6°(V) 103°(D) |
| Pan/Tilt/Rotate Range | Pan: -170° ~ 170°, Tilt: -5° ~ 67.5°, Rotate: -109° ~ 109° |
| Min. Illumination | COLOR : 0.15 lux @ F2.15 B/W : 0 lux (IR LED ON) |
| Dynamic Range | 120dB(True WDR) |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
| Day and Night | IR cut filter with auto switch |
| IR Distance (LEDs) | 30m / 98.4 ft (4ea) |
| Image Setting | Exposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control) |
| Backlight Compensation | On / Off |
| Image Stabilizer | - |
| De-fog | - |
| Privacy Masking | 8 Zones |
| Intelligent Video | Video Motion Detection, Active Tampering Alarm, Trip Zone |
| Video Out | - |
IDIS, 5M IR Dome Camera, Vandal IK 10, IP67, H.265@30ips, 1/2.8" CMOS, 4.0mm, DirectIP 2.0, ONVIF, Alarm in/out, Audio In / Out, micro SD/SDHC/SDXC (Up to 512GB), PoE (IEEE 802.3af Class 3), 7.6W, IR (4ea) 30m / 98.4 ft
