IDIS

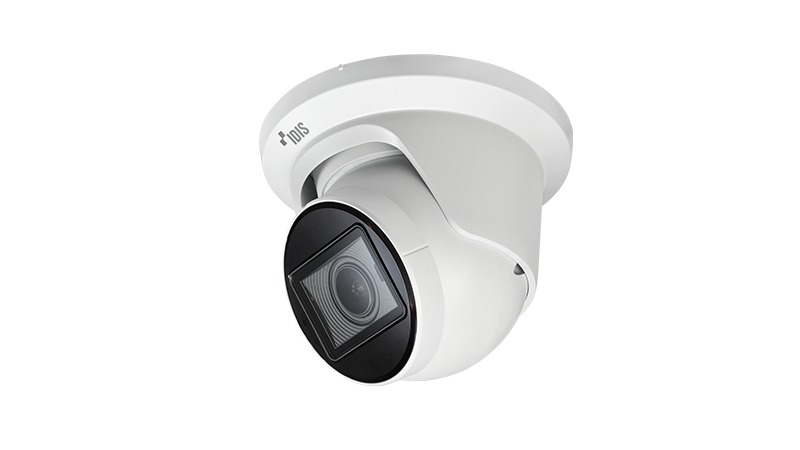

IDIS DC-D4532WERA 5M AI Turret Outdoor Camera (LightMaster NIR), 3.2 ~ 10.5mm, IR 164ft., PoE (IEEE 802.3af Class 3), H.265, Audio MIC In/Out
Quantity:
- Easy installation with DirectIP NVR
- H.265 and Intelligent Codec
- Remote Motorized Focus and Zoom
- PoE (IEEE 802.3af Class 3)
- IR LED (50m / 164ft(6ea))
- IDIS Deep-Learning Analytics (IDLA)
| Video | |
| Image Sensor | 1/2.8" CMOS |
| Max. Resolution | 2592 x 1944 |
| Scanning Mode | Progressive Scan |
| Lens Type | Motorized Vari-focal |
| Focal Length | 3.2 ~ 10.5mm |
| Aperture | F1.6 ~ 3.3 |
| Iris Control | P-Iris |
| Angular Field of View | [4:3 mode] Wide : 98.9º(H) 71.1º(V) 133.8º(D) Tele : 28.2º(H) 21.2º(V) 35.3(D) [16:9 mode] Wide : 98.9º(H) 52.2º(V) 117.9º(D) Tele : 28.2º(H) 15.9º(V) 32.4º(D) |
| Min. Illumination | COLOR : 0.13 lux @ F1.6 B/W : 0 lux (IR LED ON) |
| Dynamic Range | 120dB (True WDR) |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
| Day and Night | Yes (ICR) |
| IR Distance (LEDs) | 50m / 164ft(6ea) |
| Image Setting | Exposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control) |
| Backlight Compensation | - |
| Mirroring / Pivot | Horizontal / Vertical / Pivot |
| Image Stabilizer | - |
| De-fog | Yes |
| Privacy Masking | 8 Zones |
| Intelligent Video | Object Metadata: Human, Vehicle, Face IDLA: Object Detection, Intrusion, Loitering, Line Crossing, Face Detection ETC: Video Motion Detection, Active Tampering Alarm |
| Video Out | - |
| Pan/Tilt/Rotate | |
| Pan Range | -180° ~ 180° |
| Tilt Range | -5° ~ 70° |
| Rotate Range | -180° ~ 180° |
| Network | |
| Video Compression | H.265, H.264 (MP), M-JPEG |
| Intelligent Codec | Yes |
| Bitrate Control | H.265 - CBR / VBR, H.264 - CBR / VBR |
| Audio Compression | ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law |
| Two-way Audio | Yes |
| IP Camera Protocol | DirectIP 2.0, ONVIF Profile S/T |
| Max. Frame Rate | 4:3 mode : 30ips : 2592 x 1944(WDR) 16:9 mode : 30ips : 2592 x 1456(WDR) |
| Supported Resolution | 4:3 : 2592x1944, 1920x1440, 1280x960x 640x480 16:9 : 2592x1456, 1920x1080, 1280x720, 640x360 |
| Multi-video Streaming | Quadruple Streaming |
| Network Protocols | DirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP, SNMPv2 |
| Security | Digest authentication, Password Protection, User access log, IP Filtering, IEEE802.1x(EAP-TLS), Chained Fingerprint, SSL Encryption, HTTPS Encryption |
| Ethernet | RJ45 (10/100BASE-T) |
| Recording Session Buffer (NLTSrec) | Yes (Up to 60MB) |
| Edge Storage | micro SD/SDHC/SDXC, Smart Failover (Up to 512GB) |
| Alarm and Event | |
| Trigger Event | Motion Detection, Alarm in, Audio detection, Tampering, Object Detection, Intrusion, Loitering, Line Crossing, Face Detection |
| Event Notification | Remote S/W, Email (with Image) |
| Audio Alarm | Yes |
| Audio In / Out | 1(Built In MIC)+1 / 1 |
| Alarm In / Out | 1 / 1 |
| Environmental | |
| Vandal Proof Casing | IK10 |
| Outdoor Ready | IP67, Heater |
| Operating Temperature | -40°C ~ +55°C (-40°F ~ +131°F) *Starting up at above -20°C (-4°F) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Source | 12VDC, PoE, IEEE 802.3af(Class 3) |
| Power Consumption | 12V=, 1.1A, 13.2W PoE, IEEE 802.3af(Class 3), 11.5W |
| Approval | FCC, CE, KC |
| Mechanical | |
| Dimensions | Ø135 x 98.5mm (Ø5.31” x 3.88”) |
| Weight | 830g (1.83lb) |
IDIS, 5M AI Turret Camera (LightMaster NIR),Vandal IK 10, IP67 w/Heater, H.265@30ips, 1/2.8" CMOS,3.2 ~ 10.5mm,DirectIP 2.0, ONVIF, Alarm in/out, Audio in (+ Built In MIC) / out, AI: Object Detection, Intrusion, Loitering, Line Crossing, Face Detection, Micro SD/SDHC/SDXC (Up to 512GB),12V=, 1.1A, 13.2W, PoE, IEEE 802.3af(Class 3), 12.9W,IR (6ea) 50m / 164ft
