IDIS

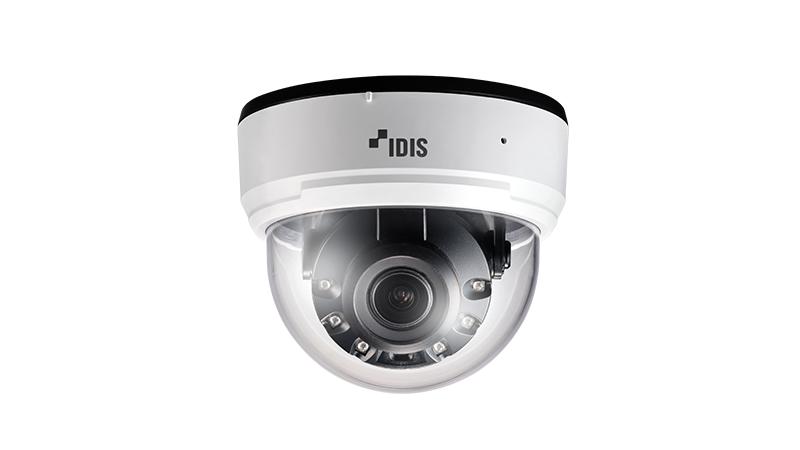

IDIS DC-D4538RA 5M Indoor AI Dome Camera (LightMaster NIR), 2.7 ~ 13.5mm, PoE (IEEE 802.3af Class 3), H.265
Choose options
- Easy installation with DirectIP NVR
- H.265 and Intelligent Codec
- Remote Motorized Focus and Zoom
- PoE (IEEE 802.3af Class 3)
- IR LED (40m / 131.2 ft (6ea))
- IDIS Deep-Learning Analytics (IDLA)
- Alarm in / out
- Audio in (+ Built In MIC) / out
Video | |
Image Sensor | 1/2.8" CMOS |
Max. Resolution | 2592 x 1944 |
Scanning Mode | Progressive Scan |
Lens Type | Motorized Vari-focal |
Focal Length | 2.7 ~ 13.5mm |
Aperture | F1.4 ~ 3.2 |
Iris Control | DC Iris |
Angular Field of View | [4:3 mode] Wide : 101.2º(H) 72.5º(V) 137.4º(D) Tele : 30.4º(H) 22.8º(V) 38º(D) [16:9 mode] Wide : 101.2º(H) 53.3º(V) 121.6º(D) Tele : 30.4º(H) 17º(V) 34.7º(D) |
Min. Illumination | COLOR : 0.13 lux @ F1.4 B/W : 0 lux (IR LED ON) |
Dynamic Range | 120dB (True WDR) |
Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
Day and Night | Yes (ICR) |
IR Distance (LEDs) | 40m / 131.2 ft (6ea) |
Image Setting | Exposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control) |
Backlight Compensation | - |
Mirroring / Pivot | Horizontal / Vertical / Pivot |
Image Stabilizer | - |
De-fog | Yes |
Privacy Masking | 8 Zones |
Intelligent Video | Object Metadata: Human, Vehicle, Face IDLA: Object Detection, Intrusion, Loitering, Line Crossing, Face Detection ETC: Video Motion Detection, Active Tampering Alarm |
Video Out | - |
IDIS, 5M AI IR Dome Camera (LightMaster NIR), Indoor, H.265@30ips, 1/2.8" CMOS,2.7 ~ 13.5mm, DirectIP 2.0, ONVIF, Alarm in/out, Audio in (+ Built In MIC) / out, AI: Object Detection, Intrusion, Loitering, Line Crossing, Face Detection, Micro SD/SDHC/SDXC (Up to 512GB), 12V=, 1A, 12W, PoE IEEE 802.3af(Class 3), 9.5W, IR (6ea) 40m / 131.2 ft
