IDIS

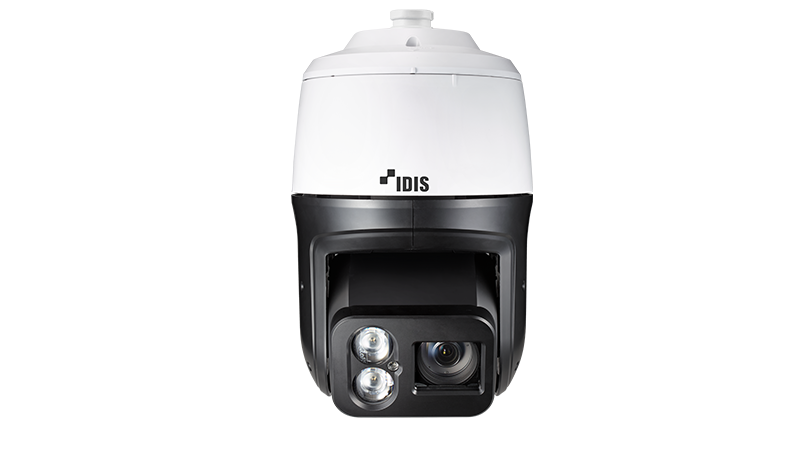

IDIS DC-S6286HRXL 2M PTZ LightMaster IR Outdoor Speed Dome Camera, IP66, 36X AF Zoom Lens 6 ~ 216mm, 24VAC, High-PoE (75W), IR 1,148 ft., H.265
Quantity:
Choose options
Quantity:
- Easy installation with DirectIP NVR
- Full HD (1080p) resolution
- AF optical zoom lens (f=6 - 216mm), 36x zoom
- Two-way audio
- Alarm in / out
- IK10 / IP66 supports
- Built-in heater
- High-PoE, 24V AC
- Day and night (ICR)
- True wide dynamic range (WDR)
- Digital image stabilization (DIS)
- 350 m / 1,148.2ft (2ea)
- Supports ONVIF
| Video | |
| Image Sensor | 1/2" CMOS |
| Max. Resolution | 1920 x 1080 |
| Scanning Mode | Progressive Scan |
| Lens Type | AF Zoom Lens |
| Focal Length | 6 ~ 216mm |
| Aperture | F1.36 ~ F4.6 |
| Iris Control | DC Iris (Hall Sensor) |
| Angular Field of View | Wide : 57.4°(H), 33.1°(V), 65.2°(D) Tele : 1.9°(H), 1.1°(V), 2.2°(D) |
| Min. Illumination | Color : 0.02 lux @ F1.36 B/W : 0 lux (IR LED ON) |
| Dynamic Range | 120dB (True WDR) |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
| Day and Night | Yes (ICR) |
| IR Distance (LEDs) | 350 m / 1,148.2ft (2ea) |
| Image Setting | Exposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control) |
| Backlight Compensation | BLC |
| Mirroring / Pivot | Horizontal / Vertical |
| Image Stabilizer | Yes (EIS) |
| De-fog | Yes |
| Privacy Masking | 8 Zones |
| Intelligent Video | Video Motion Detection, Active Tampering Alarm, Trip Zone |
| Video Out | 1 Terminal Block |
IDIS, 2M PTZ LightMaster IR Speed Dome Camera, Vandal IK10,IP67 w/Heater, H.265@30ips, 1/2" CMOS, 6 ~ 216mm(36X), DirectIP 2.0, ONVIF, Alarm in(8)/out(2), Audio in/out, Micro SD/SDHC/SDXC (Up to 512GB), 24VAC, High-PoE (75W), Max 39.6W(Heater/IR on), HEATER / IR ON 24V~, 2.3A, 39.6W, 50/60Hz High-PoE, 50-57V, 35.6W,HEATER / IR OFF 24V~, 1.6A, 26.2W, 50/60Hz High-PoE, 50-57V, 23.6W, Built-in 350m / 1,148.2ft (2ea) Long range IR Illuminator
