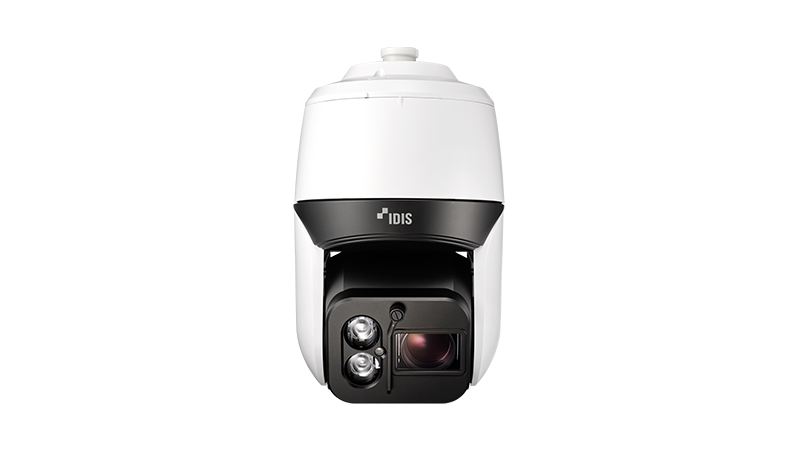

IDIS DC-S6481HRA 4M PTZ NIR LightMaster AI Outdoor Speed Dome Camera, IP66, 36X AFZ Lens 6.91 ~ 248.76mm, 24VAC, PoE IEEE 802.3bt (Class 6), H.265
Quantity:
Choose options
Quantity:
- Easy installation with DirectIP NVR
- 4MP (2688 x 1520) resolution
- AF optical zoom lens (f=6.91 ~ 248.76mm)
- Built-in 400m Long range IR Illuminator
- IDIS Deep-Learning Analytics (IDLA)
- AI Auto Tracking Supports
| Video | |
| Image Sensor | 1/1.8" CMOS |
| Max. Resolution | 2688 X 1520 |
| Scanning Mode | Progressive Scan |
| Lens Type | AF Zoom Lens |
| Focal Length | 6.91 ~ 248.76mm |
| Aperture | F1.36~F4.6 |
| Iris Control | P-Iris |
| Angular Field of View | Wide : 61.8°(H), 36.3°(V), 70.3°(D) Tele : 2.4°(H), 1.3°(V), 2.7°(D) |
| Min. Illumination | Color : 0.06 lux @ F1.35 B/W : 0 lux (IR LED ON) |
| Dynamic Range | 120dB (True WDR) |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
| Day and Night | Yes (ICR) |
| IR Distance (LEDs) | 400 m / 1,312.3ft (2ea) |
| Image Setting | Exposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control) |
| Backlight Compensation | - |
| Mirroring / Pivot | Horizontal / Vertical |
| Image Stabilizer | Yes (EIS) |
| De-fog | Yes |
| Privacy Masking | 8 Zones |
| Intelligent Video | Object Metadata: Human, Vehicle, Face IDLA: Object Detection, Intrusion, Loitering, Line Crossing, Face Detection ETC: Video Motion Detection, Active Tampering Alarm |
| Video Out | 1 Terminal Block |
IDIS, 4M AI Speed Dome Camera (LightMaster), Vandal IK 10,IP66 w/Heater, H.265@30ips, 1/1.8" CMOS, 5.8~210mm(36x), DirectIP 2.0, ONVIF, Alarm in(8)/out(2), Audio in/out, AI:Object Detection, Intrusion, Loitering, Line Crossing, Face Detection, Auto Tracking, Micro SD/SDHC/SDXC (Up to 512GB), 24VAC, PoE IEEE 802.3bt (Class 6) , Max 39.6W(Heater/IR on) 23.6W Heater / IR ON 24V~, 2.3A, 39.6W, 50/60Hz High-PoE, 50-57V, 35.6W, Heater / IR OFF 24V~, 1.6A, 26.2W, 50/60Hz High-PoE, 50-57V, Built-in 400m / 1,312.3ft (2ea) Long range IR Illuminator
