IDIS

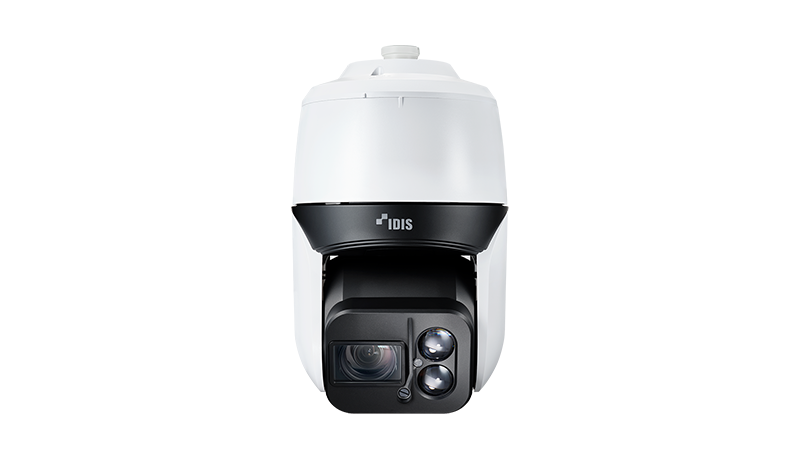

IDIS DC-S6682WR H.265 6M IR PTZ Speed Dome Camera, AF Zoom Lens,6.5 ~ 202mm,24VAC, PoE, IEEE 802.3bt(Class 8)
Quantity:
- Easy installation with DirectIP NVR
- 6MP (3328 x 1872) resolution
- AF optical zoom lens (f=6.5 - 202mm), 31x zoom
- Built-in 300m Long range IR Illuminator
| Video | |
| Image Sensor | 1/1.8" CMOS |
| Max. Resolution | 3328 x 1872 |
| Scanning Mode | Progressive Scan |
| Lens Type | AF Zoom Lens |
| Focal Length | 6.91 ~ 214.64mm |
| Aperture | F1.36 ~ F4.6 [TBD] |
| Iris Control | P-Iris |
| Angular Field of View | Wide : 61.8°(H), 36.3°(V), 70.3°(D) Tele : 2.3°(H), 1.3°(V), 2.6°(D) |
| Min. Illumination | Color : 0.13 lux @ F1.36 B/W : 0 lux (IR LED On) |
| Dynamic Range | 120dB (True WDR) |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
| Day and Night | Yes (ICR) |
| IR Distance (LEDs) | 300 m/984.3ft (2ea) |
| Image Setting | Exposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control) |
| Backlight Compensation | - |
| Mirroring / Pivot | Horizontal / Vertical |
| Image Stabilizer | Yes (EIS) |
| De-fog | Yes |
| Privacy Masking | 8 Zones |
| Intelligent Video | Video Motion Detection, Active Tampering Alarm, Trip Zone |
| Video Out | 1 Terminal Block |
IDIS, 6M PTZ Speed Dome Camera, Vandal IK 10,IP66 w/Heater, H.265@30ips, 1/1.8" CMOS, 6.5 ~ 202mm(31x), P-iris, DirectIP 2.0, ONVIF Profile S/T, Alarm in(8)/out(2), Audio in/out, Micro SD/SDHC/SDXC (Up to 512GB), 24VAC, PoE, IEEE 802.3bt(Class 8), HEATER, IR LED OFF 24VAC~, 1.6A, 28W, 50/60Hz PoE, IEEE 802.3bt(Class 8), 28.4W, HEATER, IR LED ON 24VAC, 2.8A, 52.9W, 50/60Hz PoE, IEEE 802.3bt(Class 8), 53.1W, Built-in 300m / 984.3ft (2ea) Long range IR Illuminator
