IDIS

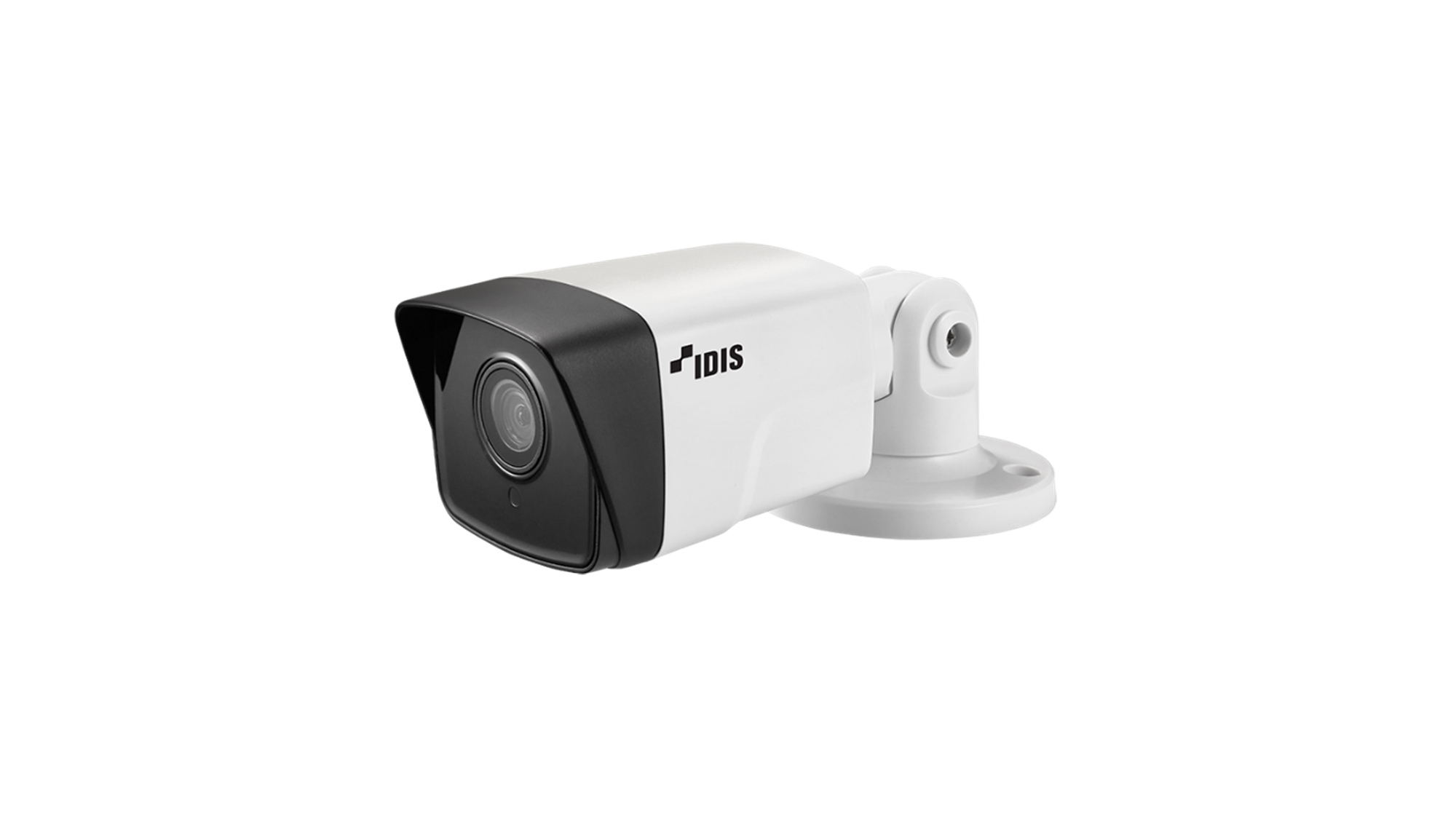

IDIS DC-T4217WRX6.0 2M Bullet Camera, Fixed 6.0mm, IP67, IR 65.6ft, PoE IEEE 802.3af (Class 2), H.265
Quantity:
- Full HD (1080p) resolution
- Fixed-focal lens (f=6.0mm)
- IR LED (20 m / 65.6 ft (2 ea))
- IK10 / IP66 supports
- PoE (IEEE 802.3af Class 2)
- Day and night (ICR)
- True wide dynamic range (WDR)
- 3-axis mechanical design for installation
- Easy installation with DirectIP NVR
- Supports ONVIF
| Video | |
| Image Sensor | 1/2.8" CMOS |
| Max. Resolution | 1920 x 1080 |
| Scanning Mode | Progressive Scan |
| Lens Type | Fixed-focal |
| Focal Length | f=6.0mm |
| Aperture | F 1.6 (6.0mm) |
| Iris Control | Fixed Iris |
| Angular Field of View | 53.5°(H), 29.5°(V), 62.1°(D) (f=6.0mm) |
| Min. Illumination | COLOR : 0.07 lux @ F1.6 B/W : 0 lux (IR LED ON) (6.0mm) |
| Dynamic Range | 120dB (True WDR) |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
| Day and Night | IR cut filter with auto switch |
| IR Distance (LEDs) | 20 m / 65.6 ft (2 ea) |
| Image Setting | Exposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control) |
| Backlight Compensation | On / Off |
| Mirroring / Pivot | Horizontal / Vertical / Pivot |
| Image Stabilizer | - |
| De-fog | - |
| Privacy Masking | 8 Zones |
| Intelligent Video | Video Motion Detection, Active Tampering Alarm, Trip Zone |
| Video Out | - |
IDIS, 2M Bullet Camera, Vandal IK 10, IP67, H.265 @30ips, 1/2.8" CMOS, 6.0mm, DirectIP 2.0, ONVIF Profile S/T, PoE IEEE 802.3af (Class 2), 5.4W, IR (2ea) 20m / 65.6 ft
