IDIS

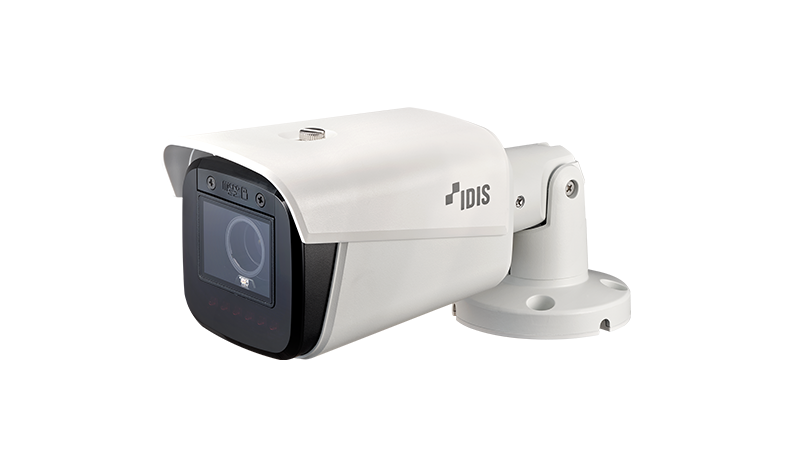

IDIS DC-T4238HRA 2M AI Bullet Camera (LightMaster NIR), 2.8 ~ 12mm, IR 164ft., 12VDC, PoE IEEE 802.3af (Class 3), H.265, Audio In/Out
Quantity:
- 2MP (1920 x 1080) resolution
- IDIS Deep-Learning Analytics (IDLA)
- IR LED (50 m / 164 ft (6 ea))
- NIR Sensor
- Day and night (ICR)
- True wide dynamic range (WDR)
- Easy installation with DirectIP NVR
- H.265 and Intelligent Codec
- PoE (IEEE 802.3af Class 3)
- IK10, IP67
- Alarm in / out
- Audio in / out
- Built-in heater
- micro SD/SDHC/SDXC
- Supports ONVIF
| Video | |
| Image Sensor | 1/2.8" CMOS |
| Max. Resolution | 1920 x 1080 |
| Scanning Mode | Progressive Scan |
| Lens Type | Motorized Vari-focal |
| Focal Length | 2.8 ~ 12mm |
| Aperture | F1.4 ~ F3.1 |
| Iris Control | DC Iris |
| Angular Field of View | Wide : 105.7º(H) 55.3º(V) 126.4º(D) Tele : 34º(H) 19.1º(V) 39.1º(D) |
| Min. Illumination | COLOR : 0.1 lux @ F1.4 B/W : 0 lux (IR LED ON) |
| Dynamic Range | 120dB (True WDR) |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
| Day and Night | Yes (ICR) |
| IR Distance (LEDs) | 50 m / 164 ft (6 ea) |
| Image Setting | Exposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control) |
| Backlight Compensation | - |
| Mirroring / Pivot | Horizontal / Vertical / Pivot |
| Image Stabilizer | - |
| De-fog | Yes |
| Privacy Masking | 8 Zones |
| Intelligent Video | Object Metadata: Human, Vehicle, Face IDLA: Object Detection, Intrusion, Loitering, Line Crossing, Face Detection ETC: Video Motion Detection, Active Tampering Alarm |
| Video Out | - |
IDIS, 2M AI Bullet Camera (LightMaster NIR),Vandal IK 10, IP67 w/heater, H.265 @30ips, 1/2.8" CMOS, 2.8 ~ 12mm, DirectIP 2.0, ONVIF, Alarm in/out, Audio In / Out, AI: Object Detection, Intrusion, Loitering, Line Crossing, Face Detection, Micro SD/SDHC/SDXC (Up to 512GB), 12V=, 1.1A, 13.2W, PoE IEEE 802.3af (Class 3), 8.3W, IR (6ea) 50m / 164 ft
