IDIS

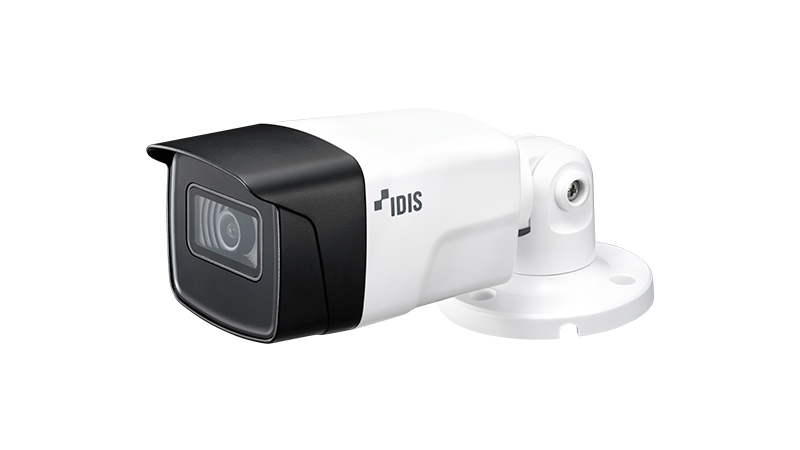

IDIS DC-T4517WRXP-A 2.8MM 5M PoE Extender Bullet Camera, 2.8mm, IR 65.6ft., PoE, IEEE 802.3at(Class 4), H.265
Quantity:
- Easy installation with DirectIP NVR
- H.265 and Intelligent Codec
- Built-in PoE Extender
- 5MP High Resolution
- IR LED (20 m / 65.6 ft (2 ea))
| Video | |
| Image Sensor | 1/2.8" CMOS |
| Max. Resolution | 2592 x 1944 |
| Scanning Mode | Progressive Scan |
| Lens Type | Fixed-focal |
| Focal Length | 2.8mm |
| Aperture | F2.0 |
| Iris Control | Fixed Iris |
| Angular Field of View | 4:3 mode : 104.8º(H) 76.9º(V) 130º(D) 16:9 mode : 104.8º(H) 57.2º(V) 123º(D) |
| Min. Illumination | COLOR : 0.15 lux @ F2.0 B/W : 0 lux (IR LED ON) |
| Dynamic Range | 120dB (True WDR) |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
| Day and Night | Yes (ICR) |
| IR Distance (LEDs) | 20 m / 65.6 ft (2 ea) |
| Image Setting | Exposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control) |
| Backlight Compensation | BLC |
| Mirroring / Pivot | Horizontal / Vertical / Pivot |
| Image Stabilizer | - |
| De-fog | Yes |
| Privacy Masking | 8 Zones |
| Intelligent Video | Video Motion Detection, Active Tampering Alarm, Trip Zone |
| Video Out | - |
IDIS, 5M Built-in PoE Extender Bullet Camera, Vandal IK 10, IP66, H.265 @30ips, 1/2.8" CMOS, 4.3mm, DirectIP 2.0, ONVIF Profile S/T, PoE, IEEE 802.3at(Class 4), 25.5W (DC OUT : 42.5-57V=, 0.3A MAX), IR (2ea) 20m / 65.6 ft
