IDIS

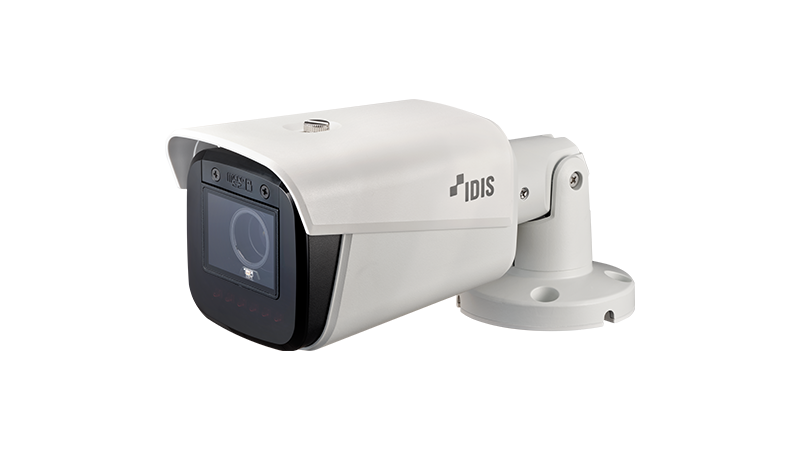

IDIS DC-T4537HRXA 5M AI Bullet Camera, 2.7 ~ 13.5mm, IR 131.2ft., PoE (IEEE 802.3af Class 3), H.265, Audio In/Out
Discontinued - Recommended Replacement: DC-T4538WRA
Choose options
Discontinued - Recommended Replacement: DC-T4538WRA
Discontinued - Recommended Replacement: DC-T4538WRA
- 5MP (2592x1944) resolution
- IDIS Deep-Learning Analytics (IDLA)
- Motorized Vari-focal lens
- micro SD/SDHC/SDXC
- Two-way audio
- Alarm in / out
- IK10 / IP67 supports
- Built-in heater
- Day and night (ICR)
- True wide dynamic range (WDR)
- IR LED (40m / 131.2 ft (6ea))
- 3-axis mechanical design for installation
- PoE (IEEE 802.3af Class 3)
- Easy installation with DirectIP NVR
- Supports ONVIF
| Video | |
| Image Sensor | 1/2.8" CMOS |
| Max. Resolution | 2592 x 1944 |
| Scanning Mode | Progressive Scan |
| Lens Type | Motorized Vari-focal |
| Focal Length | 2.7 ~ 13.5mm |
| Aperture | F1.4 ~ F3.2 |
| Iris Control | DC Iris |
| Angular Field of View | [4:3 mode] Wide : 101.2º(H) 72.6º(V) 137.4º(D) Tele : 30.4º(H) 22.8º(V) 38º(D) [16:9 mode] Wide : 101.7º(H) 53.3º(V) 121.6º(D) Tele : 30.2º(H) 17º(V) 34.7º(D) |
| Min. Illumination | COLOR : 0.15 lux @ F1.4 B/W : 0 lux (IR LED ON) |
| Dynamic Range | 120dB (True WDR) |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
| Day and Night | Yes (ICR) |
| IR Distance (LEDs) | 40m / 131.2 ft (6ea) |
| Image Setting | Exposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control) |
| Backlight Compensation | - |
| Mirroring / Pivot | Horizontal / Vertical / Pivot |
| Image Stabilizer | - |
| De-fog | Yes |
| Privacy Masking | 8 Zones |
| Intelligent Video | Video Motion Detection, Active Tampering Alarm, Object Detection, Intrusion, Loitering, Line Crossing, Face Detection |
| Video Out | - |
IDIS, 5M Bullet Camera, Vandal IK 10, IP67 w/Heater, H.265 @30ips, 1/2.8" CMOS, 3.0 ~ 13.5mm, DirectIP 2.0, ONVIF, Alarm in/ out, Audio in / out, AI: Object Detection, Intrusion, Loitering, Line Crossing, Face Detection, Micro SD/SDHC/SDXC (Up to 512GB), 12V=, 1A, 12W
PoE, IEEE 802.3af(Class 3), 9.7W, IR (6ea) 40m / 131.2 ft
