IDIS

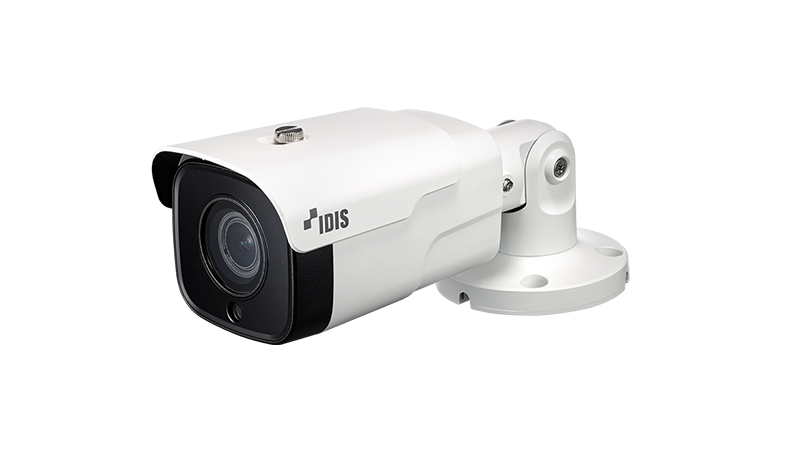

IDIS DC-T4831HRX 8M Bullet Camera, 2.7 ~ 13.5mm, IR 131.2ft., PoE (IEEE 802.3af Class 3), H.265, Audio In/Out
Quantity:
- Easy installation with DirectIP NVR
- 8MP (3840x2160) resolution
- Motorized Vari-focal lens (f=2.7 - 13.5mm)
- micro SD/SDHC/SDXC, Smart Failover
- Two-way audio
- Alarm in / out
- IK10 / IP67 supports
- Built-in heater
- PoE (IEEE 802.3af Class 3), 12V DC
- Day and night (ICR)
- True wide dynamic range (WDR)
- IR LED (40 m / 131.2 ft (6 ea))
- 3-axis mechanical design for installation
- Supports ONVIF
| Video | |
| Image Sensor | 1/2.8" CMOS |
| Max. Resolution | 3840 x 2160 |
| Scanning Mode | Progressive Scan |
| Lens Type | Motorized Vari-focal |
| Focal Length | 2.7 ~ 13.5mm |
| Aperture | F1.8 ~ F3.32 |
| Iris Control | DC Iris |
| Angular Field of View | Wide : 110.6º(H) 57.3º(V) 134.1º(D) Tele : 32.6º(H) 18.3º(V) 37.4(D) |
| Min. Illumination | COLOR : 0.2 lux @ F1.8 B/W : 0 lux (IR LED ON) |
| Dynamic Range | 120dB (True WDR) |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
| Day and Night | Yes (ICR) |
| IR Distance (LEDs) | 40 m / 131.2 ft (6 ea) |
| Image Setting | Exposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control) |
| Backlight Compensation | BLC |
| Mirroring / Pivot | Horizontal / Vertical / Pivot |
| Image Stabilizer | - |
| De-fog | Yes |
| Privacy Masking | 8 Zones |
| Intelligent Video | Video Motion Detection, Active Tampering Alarm, Trip Zone |
| Video Out | - |
| Network | |
| Video Compression | H.265, H.264 (MP), M-JPEG |
| Intelligent Codec | Yes |
| Bitrate Control | H.265 - CBR / VBR, H.264 - CBR / VBR |
| Audio Compression | ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law |
| Two-way Audio | Yes |
| IP Camera Protocol | DirectIP 2.0, ONVIF Profile S/T |
| Max. Frame Rate | 30ips : 3840x2160 15ips : 3840x2160(WDR) |
| Supported Resolution | 3840x2160, 1920x1080, 1280x720, 640x360 |
| Multi-video Streaming | Quadruple Streaming |
| Network Protocols | DirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, Upnp, SNMPv2 |
| Security | Digest authentication, Password Protection, User access log, IP Filtering, IEEE802.1x(EAP-TLS), Chained Fingerprint, SSL Encryption, HTTPS Encryption |
| Ethernet | RJ45 (10/100BASE-T) |
| Recording Session Buffer (NLTSrec) | Yes (Up to 60MB) |
| Edge Storage | micro SD/SDHC/SDXC, Smart Failover (Up to 512GB) |
| Alarm and Event | |
| Trigger Event | Motion Detection, Alarm in, Audio detection, Tampering, Trip Zone |
| Event Notification | Remote S/W, Email (with Image) |
| Audio Alarm | Yes |
| Audio In / Out | 1 / 1 |
| Alarm In / Out | 1 / 1 |
| Environmental | |
| Vandal Proof Casing | IK10 |
| Outdoor Ready | IP67, Heater |
| Operating Temperature | -40°C ~ +55°C (-40°F ~ +131°F) *Starting up at above -20°C (-4°F) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Source | 12VDC, PoE, IEEE 802.3af(Class 3) |
| Power Consumption | 12V=, 1.1A, 13.2W PoE, IEEE 802.3af(Class 3), 11.7W |
| Approval | FCC, CE, KC |
| Mechanical | |
| Dimensions | 80mm X 75mm X 237mm(3.15" x 2.95" x 9.33") |
| Weight | 1.01kg (2.22lb) |
IDIS, 4K Bullet Camera, Vandal IK 10, IP67 w/Heater, H.265 @30ips, 1/2.8" CMOS, 2.7 ~ 13.5mm, DirectIP 2.0, ONVIF, Alarm in/ out, Audio in / out, micro SD/SDHC/SDXC, (Up to 512GB), 12V=, 1.1A, 13.2W, PoE IEEE 802.3af(Class 3), 11.7W, IR (6ea) 40m / 131.2 ft
