IDIS

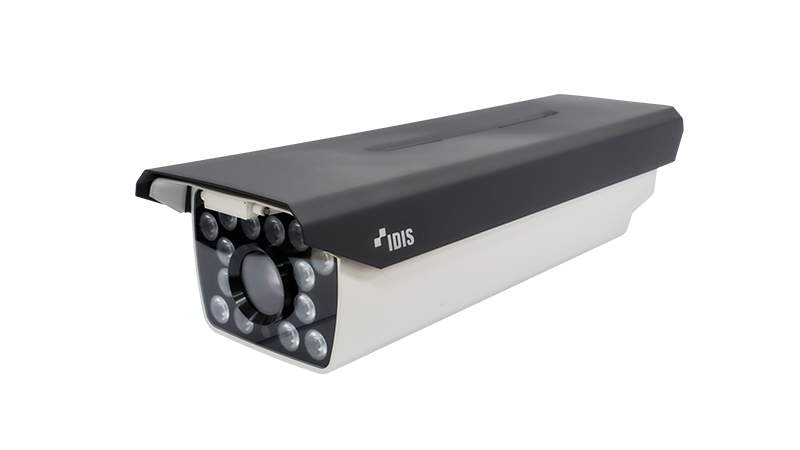

IDIS DC-T6224HRXL 2M License Plate Capture Camera, 12~50mm, P-iris, 120VAC 50W, IR 65ft., H.265, Audio In/Out
Quantity:
- Easy installation with DirectIP NVR
- FullHD (1920 x 1080) resolution
- Manual Vari-focal lens (f=12 - 50mm)
- IR LED (20m (License plate capture up to 80km/h) 100m (Surveillance))
- True wide dynamic range (WDR)
- Day and night (ICR)
- Two-way audio
- Alarm in / out
- IP66 supports
- Supports ONVIF
| Video | |
| Image Sensor | 1/2" CMOS |
| Max. Resolution | 1920 x 1080 |
| Scanning Mode | Progressive Scan |
| Lens Type | Vari-focal |
| Focal Length | 12 ~ 50mm |
| Aperture | F1.5 ~ F1.9 |
| Iris Control | P-Iris |
| Angular Field of View | Wide : 33º(H), 18º(V), 38º(D) Tele : 9º(H), 5º(V), 10º(D) |
| Min. Illumination | Color Mode : 0.02 lux @F1.5 BW Mode : 0 lux (IR LED ON) |
| Dynamic Range | 120dB (True WDR) |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
| Day and Night | Yes (ICR) |
| IR Distance (LEDs) | 20m (License plate capture up to 80km/h) 100m (Surveillance) |
| Image Setting | Configurable Exposure, White Balance, Sharpness |
| Backlight Compensation | - |
| Mirroring / Pivot | Horizontal / Vertical / Pivot |
| Image Stabilizer | - |
| De-fog | - |
| Privacy Masking | 8 Zones |
| Intelligent Video | Video Motion Detection, Active Tampering Alarm, Trip Zone |
| Video Out | - |
| Network | |
| Video Compression | H.265, H.264 (MP), M-JPEG |
| Intelligent Codec | Yes |
| Bitrate Control | H.264 - CBR / VBR, H.265 - CBR / VBR |
| Audio Compression | ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law |
| Two-way Audio | Yes |
| IP Camera Protocol | DirectIP 2.0, ONVIF |
| Max. Frame Rate | 25ips : 1920 x 1080 30ips : 1920 x 1080 |
| Supported Resolution | 1920x1080, 1280x720, 704x480, 640x360, 352x240 |
| Multi-video Streaming | Quadruple Streaming |
| Network Protocols | DirectIP 2.0 Protocol, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, Upnp |
| Security | SSL Encryption, Multi-user Authority, IEEE 802.1x, IP Filtering, HTTPS, SSL Encryption |
| Ethernet | RJ45 (10/100BASE-T) |
| Recording Session Buffer (NLTSrec) | Yes (Up to 60MB) |
| Edge Storage | micro SD/SDHC/SDXC, Smart Failover (Up to 512GB) |
| Alarm and Event | |
| Trigger Event | Motion Detection, Alarm in, Audio detection, Tampering, Trip Zone |
| Event Notification | Remote S/W, Email (with Image) |
| Audio Alarm | Yes |
| Audio In / Out | 1 / 1 |
| Alarm In / Out | 2 / 1 |
| Environmental | |
| Vandal Proof Casing | - |
| Outdoor Ready | IP66 |
| Operating Temperature | -40°C ~ +60°C (-40°F ~ +140°F) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Source | 100V ~ 240VAC |
| Power Consumption | 100-240V~, 50/60Hz, 1.0-0.5A, 50W |
| Approval | FCC, CE, KC |
| Mechanical | |
| Dimensions | 166.5mm x 129.5mm x 540mm (6.56" x 5.1" x 21.26") |
| Weight | 4.65 kg (10.25 lb) |
IDIS, 2MP DirectNET,H.265 30ips, 12-50mm P-iris, IR LPR 65ft., IR Surveillance 328ft., 120VAC 50W,License Plate Capture Camera, NDAA, DirectIP 2.0, ONVIF, Alarm in/ out, Audio in / out, micro SD/SDHC/SDXC, (Up to 512GB)
