IDIS

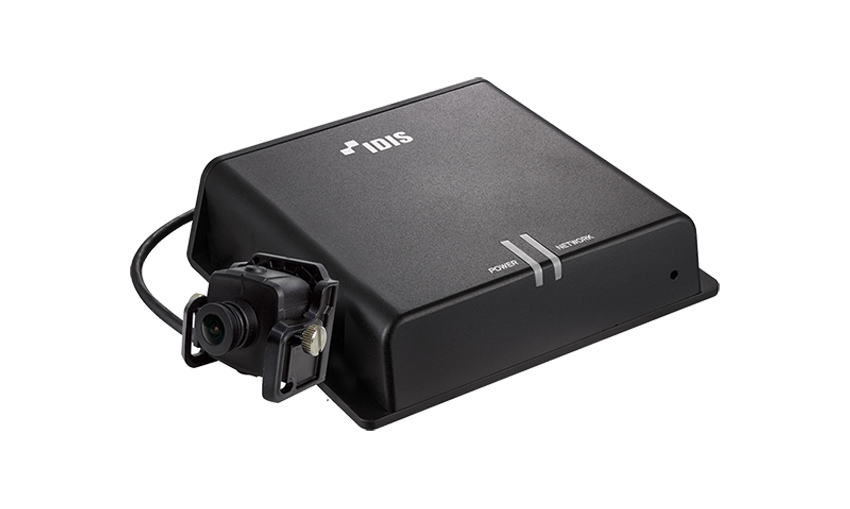

IDIS DC-V4212XJ2.4 2M Modular Covert Camera, 2.4mm, 12VDC, PoE IEEE 802.3at (Class 4), H.265
Quantity:
- Easy installation with DirectIP NVR
- Full HD (1080p) resolution
- Fixed-focal lens (f=2.4mm)
- micro SD/SDHC/SDXC
- Two-way audio
- Alarm in / out
- PoE (IEEE 802.3af Class 4)
- True wide dynamic range (WDR)
- Supports ONVIF
| Video | |
| Image Sensor | 1/2.8" CMOS |
| Max. Resolution | 1920 x 1080 |
| Scanning Mode | Progressive Scan |
| Lens Type | Fixed-focal |
| Focal Length | 2.4mm |
| Aperture | F2.0 |
| Iris Control | Fixed Iris |
| Angular Field of View | 132.5º(H), 72.7º(V), 154.7º(D) |
| Min. Illumination | COLOR : 0.1 lux @ F2.0 B/W : 0.01 lux @ F2.0 |
| Dynamic Range | More than 70 dB |
| Electronic Shutter Speed | Auto / Manual (1/30,1/25Sec ~ 1/30000Sec) / Anti-Flicker |
| Day and Night | Yes (Electrical) |
| IR Distance (LEDs) | - |
| Image Setting | Sharpness, 3DNR, Exposure |
| Backlight Compensation | BLC, WDR, HLC |
| Mirroring / Pivot | Horizontal / Vertical / Pivot |
| Image Stabilizer | - |
| De-fog | Yes |
| Privacy Masking | 8 Zones |
| Intelligent Video | Video Motion Detection, Active Tampering Alarm, Trip Zone |
| Video Out | - |
| Network | |
| Video Compression | H.265, H.264 (MP), M-JPEG |
| Intelligent Codec | Yes |
| Bitrate Control | H.264 - CBR / VBR, H.265 - CBR / VBR |
| Audio Compression | G.726, G.711 u-Law, G.711 a-Law |
| Two-way Audio | Yes |
| IP Camera Protocol | DirectIP 2.0, ONVIF Profile S/T |
| Max. Frame Rate | 30ips : 1920 x 1080 (WDR) |
| Supported Resolution | 1920x1080, 1280x720, 640x360, 352x240 |
| Multi-video Streaming | Quadruple Streaming |
| Network Protocols | DirectIP 2.0 Protocol, IPv4, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, Upnp |
| Security | Digest authentication, Password Protection, User access log, IP Filtering, IEEE802.1x(EAP-TLS), Chained Fingerprint, SSL Encryption, HTTPS Encryption |
| Ethernet | RJ45 (10/100BASE-T) |
| Recording Session Buffer (NLTSrec) | Yes (Up to 60MB) |
| Edge Storage | micro SD/SDHC/SDXC, Smart Failover (Up to 512GB) |
| Alarm and Event | |
| Trigger Event | Motion Detection, Alarm in, Audio detection, Tampering, Trip Zone |
| Event Notification | Remote S/W, Email (with Image) |
| Audio Alarm | Yes |
| Audio In / Out | 1 / 1 |
| Alarm In / Out | 1 / 1 |
| Environmental | |
| Vandal Proof Casing | - |
| Outdoor Ready | - |
| Operating Temperature | -10°C ~ +50°C (+14°F ~ +122°F) *Starting up at above 0°C (32°F) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Source | 12VDC, PoE IEEE 802.3at (Class 4) |
| Power Consumption | 12V=, 0.42A, 5.04W PoE, IEEE 802.3at(Class 4), 6.3W |
| Approval | FCC, CE, KC |
| Mechanical | |
| Weight | Main Unit : 0.47kg (1.04 lb) Camera Unit : 0.06kg ( 0.13 lb) |
IDIS, 2M Modular Covert Camera, H.265@30IPS, 1/2.8" CMOS, 2.4mm, DirectIP 2.0, ONVIF, Alarm in /out, Audio in / out, micro SD/SDHC/SDXC, (Up to 512GB), 12V=, 0.42A, 5.04W, PoE IEEE 802.3at(Class 4), 6.3W
