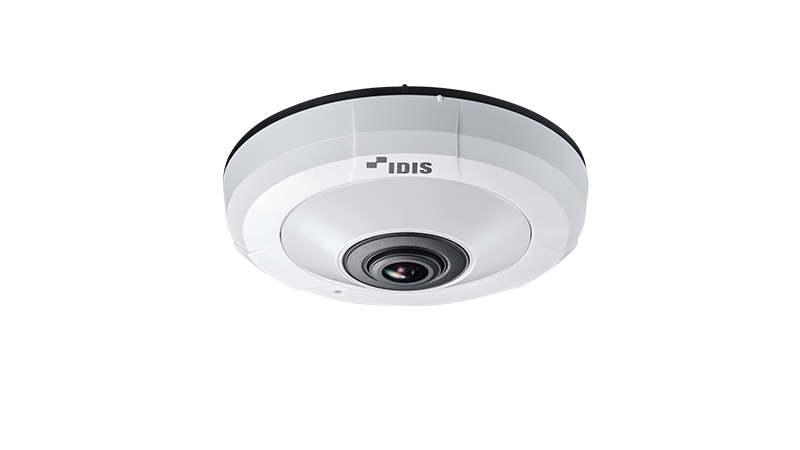

IDIS DC-Y6516X 5M 360 Indoor Camera, 1.5mm, PoE (IEEE 802.3af Class 2), H.265, Audio MIC In/Out
Quantity:
Choose options
Quantity:
- 5MP (2560 x 2048) resolution
- Fixed-focal lens (f=1.5mm)
- Day and night (ICR)
- True wide dynamic range (WDR)
- Two-way audio
- Alarm in / out
- micro SD/SDHC/SDXC, Smart Failover
- PoE (IEEE 802.3af Class 2)
- Easy installation with DirectIP NVR
- Supports ONVIF
| Video | |
| Image Sensor | 1/1.8” CMOS |
| Max. Resolution | 2560 x 2048 |
| Scanning Mode | Progressive Scan |
| Lens Type | Fixed-focal |
| Focal Length | 1.5mm |
| Aperture | F1.8 |
| Iris Control | Fixed Iris |
| Angular Field of View | 180º(H), 180º(V), 180º(D) |
| Min. Illumination | Color : 0.15 lux @ F1.8 B/W : 0.015 lux @ F1.8 |
| Dynamic Range | 120dB (True WDR) |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
| Day and Night | Yes (ICR) |
| IR Distance (LEDs) | - |
| Image Setting | Exposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control), 3DNR Level, WDR Level |
| Backlight Compensation | BLC |
| Mirroring / Pivot | Horizontal / Vertical |
| De-fog | Yes |
| Privacy Masking | 8 Zones |
| Intelligent Video | Video Motion Detection, Active Tampering Alarm, Trip Zone, Heatmap |
| Viewing Composition | 1O |
| Video Out | - |
| Network | |
| Video Compression | H.265, H.264 (MP), M-JPEG |
| Intelligent Codec | Yes |
| Bitrate Control | H.264 - CBR / VBR, H.265 - CBR / VBR |
| Audio Compression | ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law |
| Two-way Audio | Yes |
| IP Camera Protocol | DirectIP 2.0, ONVIF Profile S/T |
| Max. Frame Rate | 30ips : 2560 x 2048 (WDR) |
| Supported Resolution | 2560x2048, 640x512 |
| Multi-video Streaming | Quadruple Streaming |
| Network Protocols | DirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP, SNMPv2 |
| Security | Digest authentication, Password Protection, User access log, IP Filtering, IEEE802.1x(EAP-TLS), Chained Fingerprint, SSL Encryption, HTTPS Encryption |
| Ethernet | RJ45 (10/100BASE-T) |
| Recording Session Buffer (NLTSrec) | Yes (Up to 60MB) |
| Edge Storage | micro SD/SDHC/SDXC, Smart Failover (Up to 512GB) |
| Alarm and Event | |
| Trigger Event | Motion Detection, Alarm in, Audio detection, Tampering, Trip Zone, Heatmap |
| Event Notification | Remote S/W, Email (with Image) |
| Audio Alarm | Yes |
| Audio In / Out | 1(Built In MIC)+1 / 1 |
| Alarm In / Out | 1 / 1 |
| Environmental | |
| Vandal Proof Casing | - |
| Outdoor Ready | - |
| Operating Temperature | -10°C ~ 50°C (-22°F ~ 122°F) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Source | PoE (IEEE 802.3af Class 2) |
| Power Consumption | PoE (IEEE 802.3af Class 2), 5.6W |
| Approval | FCC, CE, KC |
| Mechanical | |
| Dimensions | Ø122 x 35.8mm(Ø4.80" x 1.40") |
| Weight | 0.280kg (0.62 lb) |
IDIS, 5M 360 Fisheye Camera, Indoor, H.265@30ips, 1/1.8" CMOS, 1.5mm, DirectIP 2.0, ONVIF, Alarm in / out, Audio in (+ Built In MIC) / out, Micro SD/SDHC/SDXC (Up to 512GB), PoE (IEEE 802.3af Class 2), 5.6W
