IDIS

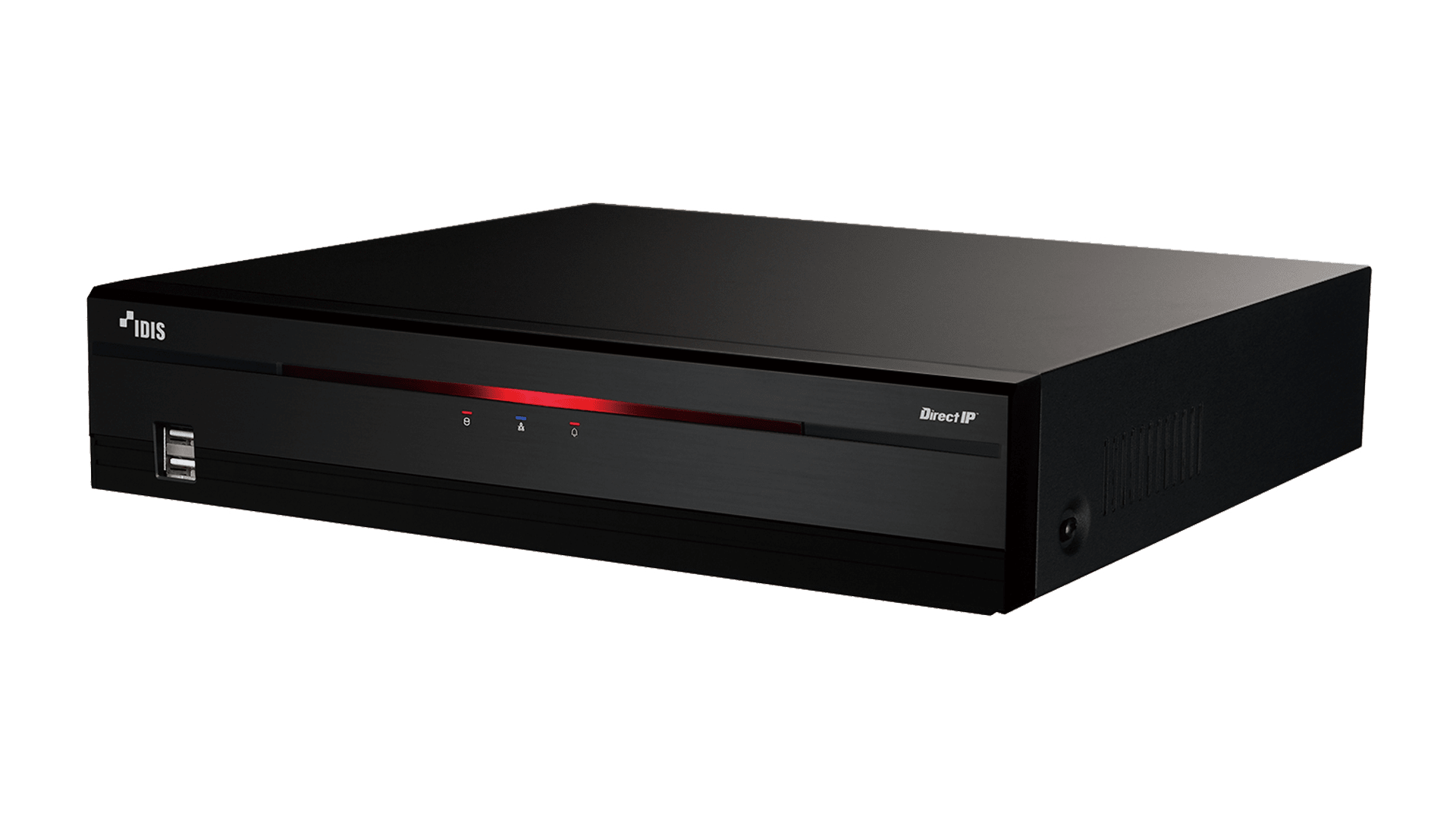

IDIS DR-2508P 8-Ch, DirectIP™ 2500 Series H.265 4K Recorder / NDAA Compliant
Storage:4TB
Quantity:
Choose options
Storage:4TB
Quantity:
Storage:4TB
Quantity:
- Total incoming throughput 270Mbps
- Up to 240ips UHD real-time recording
- Supports H.265 / H.264 codec
- Supports UHD display
- Up to 240ips live display
- Easy to install, set-up and play with DirectIP™ cameras
- Built-in 8 channel PoE Switch
- Supports one click network configuration through FEN service
- Supports third party cameras (Axis, Panasonic, ONVIF™ )
| Video | |
| Video Inputs | 8 IP channels |
| Max. Incoming Throughput | 270Mbps |
| Supported Camera | DirectIP™, AXIS, PANASONIC, ONVIF™ |
| Video Outputs | 1 HDMI, 1 VGA |
| Display Resolution | HDMI : 3840x2160, 1920 x 1200 , 1920 x 1080, 1680 x 1050, 1600 x 1200 VGA : 1920 x 1200 , 1920 x 1080, 1680 x 1050, 1600 x 1200 |
| Display Speed | Up to 240ips |
| Digital Zoom | x2 ~ x12 |
| NVR Side Dewarping | - |
| Recording | |
| Max. Throughput | 140Mbps, 240ips@UHD |
| Recording Resolution | Up to 12MP (Depending on IP Camera) |
| Video Compression | H.265, H.264 |
| Recording Mode | Time-Lapse, Event, Pre-Event, Panic |
| Trigger Event | IDLA(Object Detection, Intrusion, Loitering, Line Crossing, Face Detection), BI(Exceed Occupancy Limit, Social Distancing, Mask Rule Violation, Queue Congestion), Motion, Trip-zone, Tampering, Video Loss, Audio Detection, Alarm In, Network Alarm, Text-in, System, Etc. |
| Playback | |
| Performance | 8ch synchronous playback 8ch 4K playback |
| Search Mode | Time-lapse, Event Log, Text-in, Thumbnail, Metadata(via IDIS Center, IDIS Solution Suite) |
| Digital Zoom | x2 ~ x12 |
| Storage | |
| HDD | SATA x 2, eSATA x 1 |
| Total Capacity | The maximum HDD capacity is updated as new HDD models become available. For the most recent information, please check here |
| Network | |
| Client Connection | Gigabit Ethernet(Client) x1 |
| Video In Connection | Fast Ethernet(IP Camera) x8 + Gigabit Ethernet (Ext) x1 |
| Transmission Speed | 50Mbps / 100Mbps(BRP Mode) |
| PSE Power | PoE(IEEE 802.3at class 4) supported 8 ports, 50W |
| Event Notification | Email (attach clip (.cbf) .MP4), Callback to Remote S/W, Push notification (IDIS Mobile) |
| Two-way Audio | Yes |
| Interface | |
| Audio In / Out | Local(NVR) : - / 1RCA + 1HDMI IP Camera : 8 / 8 (Depending on IP Camera) |
| Alarm In / Out | Local(NVR) : 4 / 1 IP Camera : 8 / 8 (Depending on IP Camera) |
| Alarm Reset In | - |
| Serial Interface | RS232 (Terminal Block) |
| USB | USB 2.0 x 1, USB 3.0 x 1 |
| User Interface | Mouse, IR Remote Control, Network Remote Keyboard |
| General | |
| Operating System | Embedded Linux |
| Environmental | |
| Operating Temperature | 0°C to 40°C (32℉ ~ 104℉) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Consumption | NVR: 12V=, 2.2A, 26.4W PSE: 48V=, 1.05A, 50.4W MAX |
| Approval | FCC, CE, KC |
| Mechanical | |
| Unit Dimensions (W x H x D) | 300mm x 62mm x 231 mm (11.8" x 2.4" x 9.1") |
| Unit Weight | 2.3kg (5.1lb) (with 1 HDD) |
IDIS, 8-Ch, DirectIP 25 NVR, H.265, Built-in 8 Port PoE(IEEE 802.3at class 4), Total POE 100W, Recording 140Mbps, Total 270Mbps, 240ips@Full HD, 90ips@UHD, 2 SATA, 1 eSATA, ONVIF Profile S, Alarm in- 4 / out- 1, Audio in / out Local(NVR) : -/1RCA + 1HDMI, RS232 (Terminal Block), USB 2.0 x 1, USB 3.0 x 1 HDMI & VGA out, NVR: 12V=, 2.2A, 26.4W, PSE: 54V=, 1.85A, 100W MAX, Hard Drive: 20TB
