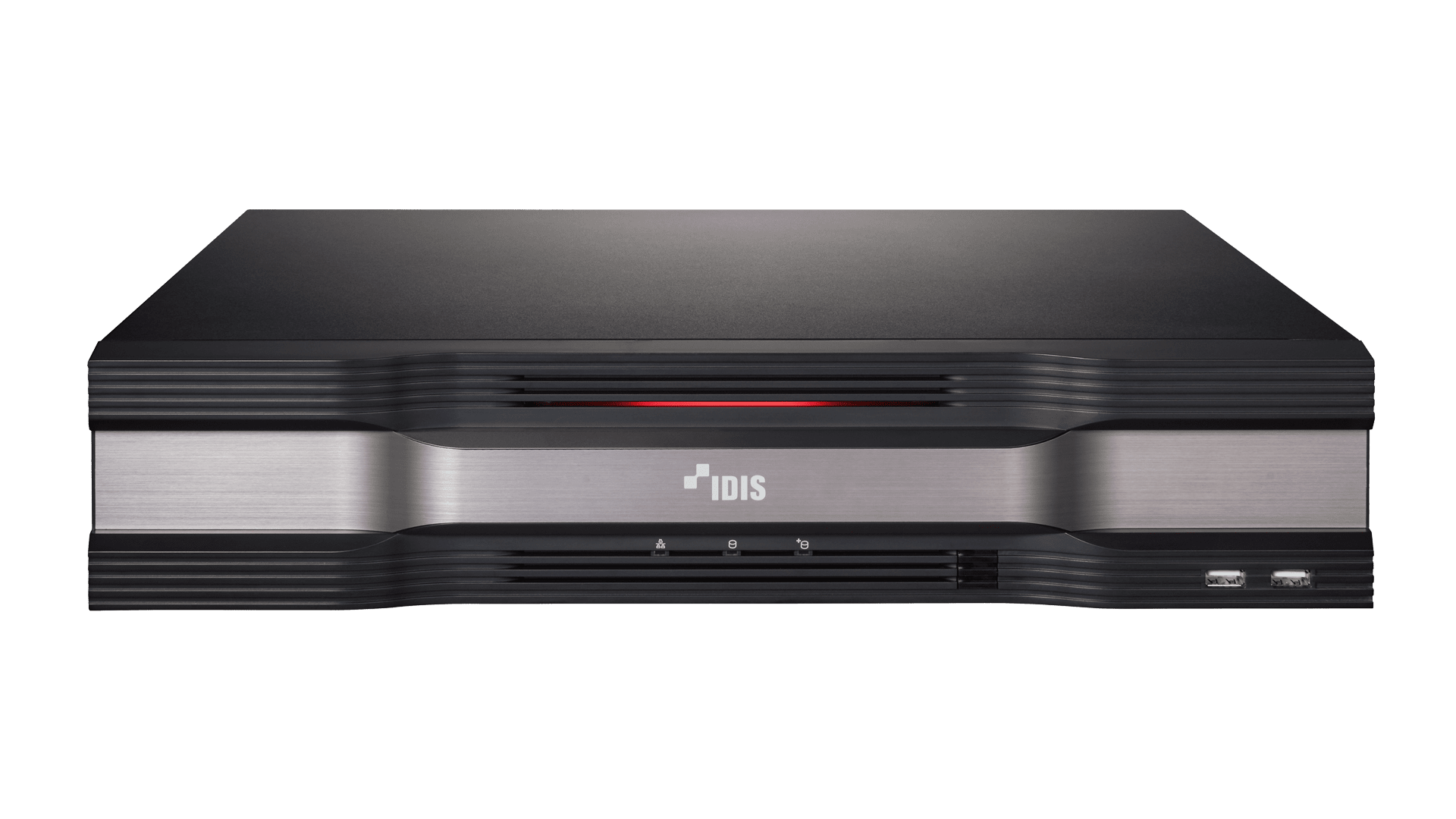

IDIS DR-6508P 8-Ch, DirectIP 6500 Series H.265 4K Recorder / NDAA Compliant
Choose options
- Total incoming throughput 270Mbps
- Up to 240ips UHD real-time recording
- Supports H.265 / H.264 codec
- Supports UHD display
- Up to 240ips live display
- Easy to install, set-up, and play with DirectIP cameras
- Built-in 8 channel PoE Switch
- Expandable up to 252TB using eSATA storage
- Supports RAID 1
- Supports one click network configuration through FEN service
- Supports third party cameras (Axis, Panasonic, ONVIF)
- NDAA Compliance
Video | |
Video Inputs | 8 IP Channels |
Max. Incoming Throughput | 270Mbps |
Supported Camera | DirectIP, AXIS, PANASONIC, ONVIF |
Video Outputs | 2 HDMI |
Display Resolution | HDMI : 3840x2160, 1920 x 1200, 1920 x 1080, 1680 x 1050, 1600 x 1200 |
Display Speed | Up to 240ips |
Digital Zoom | x2 ~ x12 |
NVR Side Dewarping | Yes |
Recording | |
Max. Throughput | 140Mbps, 240ips@UHD |
Recording Resolution | Up to 12MP (Depending on IP Camera) |
Video Compression | H.265, H.264 |
Recording Mode | Time-lapse, Event, Pre-event, Panic |
Trigger Event | IDLA(Object Detection, Intrusion, Loitering, Line Crossing, Face Detection), BI(Exceed Occupancy Limit, Social Distancing, Mask Rule Violation, Queue Congestion), Motion, Trip-zone, Tampering, Video Loss, Audio Detection, Alarm In, Network Alarm, Text-in, System, Etc. |
Playback | |
Performance | 8ch synchronous playback |
Search Mode | Time-lapse, Event Log, Text-in, Thumbnail, Metadata(via IDIS Center, IDIS Solution Suite) |
Digital Zoom | x2 ~ x12 |
Storage | |
HDD | SATA x 6, eSATA x 4, RAID 1 Supported |
Total Capacity | The maximum HDD capacity is updated as new HDD models become available. For the most recent information, please check here |
Network | |
Client Connection | Gigabit Ethernet (Client) x1 |
Video In Connection | Gigabit Ethernet(IP Camera) x8 +Gigabit Ethernet(Ext) x1 |
Transmission Speed | 50Mbps / 100Mbps (BRP Mode) |
PSE Power | PoE (IEEE 802.3at Class 4) Supported 8 Ports, 120W |
Event Notification | Email (Attach Clip (.cbf) .MP4), Callback to Remote S/W, Push Notification (IDIS Mobile) |
Two-way Audio | Yes |
Interface | |
Audio In / Out | Local (NVR) : 1 RCA / 1RCA + 2HDMI IP Camera :8 / 8 (Depending on IP Camera) |
Alarm In / Out | Local(NVR) : 4 / 1 IP Camera :8 / 8 (Depending on IP Camera) |
Alarm Reset In | Yes |
Serial Interface | RS232 (Terminal Block), RS485 (Terminal Block) |
USB | USB 2.0 x 2, USB 3.0 x 1 |
User Interface | Mouse, IR Remote Control, Network Remote Keyboard |
General | |
Operating System | Embedded Linux |
Environmental | |
Operating Temperature | 0°C to 40°C (32℉ ~ 104℉) |
Operating Humidity | 0% ~ 90% |
Electrical | |
Power Consumption | 100-240V~, 50/60Hz, 3.0-1.5A, 250W |
Approval | FCC, UL, CE, CB |
Mechanical | |
Unit Dimensions (W x H x D) | 430mm x 88mm x 420mm (16.9" x 3.5" x 16.5") |
Unit Weight | 6.75kg (14.88lb) (with 1HDD) |
IDIS, 8-Ch, DirectIP NVR, H.265, Built-in 8 Port PoE (IEEE 802.3at Class 4) Total POE 120W, Recording 140Mbps, Total 270Mbps, 240ips @ UHD, 6 SATA, 4 eSATA, ONVIF Profile S, Supports RAID 1, Alarm in- 4 / out- 1, Audio in / out Local(NVR) : 1RCA / 1RCA + 2HDMI, RS232 (Terminal Block) / RS485 (Terminal Block), USB 2.0 x 2, USB 3.0 x 1, 2 HDMI Monitor out, AC 100-240 V, 50/60Hz, 3.0 - 1.5A, Hard Drive: 60TB
