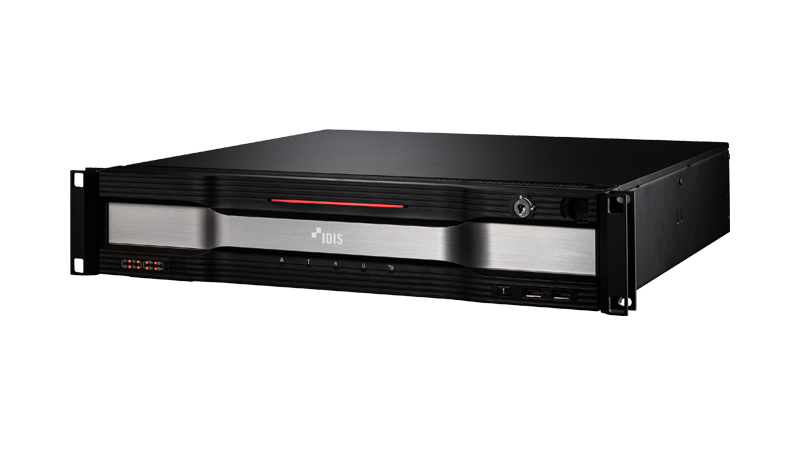

IDIS DR-8532D DirectIP 8500 Series H.265 4K Recorder / NDAA Compliant

IDIS

IDIS DR-8532D DirectIP 8500 Series H.265 4K Recorder / NDAA Compliant

Sale price$3,616.00 Regular price$4,520.00
Save $904.00
SKU: DR-8532D-4TB
Storage:4TB
Quantity:

Contact

  • Total incoming throughput 370Mbps
  • Up to 960ips UHD real-time recording
  • Supports H.265 / H.264 codec
  • Supports UHD display
  • Up to 960ips live display
  • Easy to install, set-up, and play with DirectIP cameras
  • Expandable up to 144TB using eSATA storage
  • Supports RAID 1, 5, 6, 10
  • Supports Redundant Power
  • Supports one click network configuration through FEN service
  • Supports third party cameras (Axis, Panasonic, ONVIF, etc)
Video
Video Inputs 32 IP Channels
Max. Incoming Throughput 370Mbps
Supported Camera DirectIP, AXIS, PANASONIC, ONVIF
Video Outputs 2 HDMI
Display Resolution HDMI : 3840 x 2160, 1920 x 1200 , 1920 x 1080, 1680 x 1050, 1600 x 1200
Display Speed Up to 960ips
Digital Zoom x2 ~ x12
NVR Side Dewarping Yes
Recording
Max. Throughput 230Mbps, 960ips@UHD
Recording Resolution Up to 12MP (Depending on IP Camera)
Video Compression H.265, H.264
Recording Mode Time-lapse, Event, Pre-event, Panic
Trigger Event IDLA(Object Detection, Intrusion, Loitering, Line Crossing, Face Detection), BI(Exceed Occupancy Limit, Social Distancing, Mask Rule Violation, Queue Congestion), Motion, Trip-zone, Tampering, Video Loss, Audio Detection, Alarm In, Network Alarm, Text-in, System, Etc.
Playback
Performance 32ch synchronous playback
Search Mode Time-lapse, Event Log, Text-in, Thumbnail, Metadata(via IDIS Center, IDIS Solution Suite)
Digital Zoom x2 ~ x12
Storage
HDD SATA x 8, eSATA x 4, RAID 1, 5, 6, 10 Supported
Total Capacity The maximum HDD capacity is updated as new HDD models become available.
For the most recent information, please check here
Network
Client Connection Gigabit Ethernet (Client) x 1
Video In Connection Gigabit Ethernet(Video In) x 3, SFP(Video In ) x 2
Transmission Speed 50Mbps / 100Mbps (BRP Mode)
PSE Power -
Event Notification Email (Attach Clip (.cbf) .MP4), Callback to Remote S/W, Push Notification (IDIS Mobile)
Two-way Audio Yes
Interface
Audio In / Out Local (NVR) : 1 RCA / 1RCA + 2HDMI
IP Camera : 32 / 32 (Depending on IP Camera)
Alarm In / Out Local(NVR) : 16 / 4
IP Camera : 32 / 32 (Depending on IP Camera)
Alarm Reset In Yes
Serial Interface RS232 (Terminal Block), RS485 (Terminal Block)
USB USB 2.0 x 2, USB 3.0 x 1
User Interface Mouse, IR Remote Control, Network Remote Keyboard, Front Button(Panic)
General
Operating System Embedded Linux
Environmental
Operating Temperature 0°C to 40°C (32℉ ~ 104℉)
Operating Humidity 0% ~ 90%
Electrical
Power Consumption 100-240V~, 50/60Hz, 8.0 - 4.0A, 100W x 2
Approval FCC, UL, CE, CB, KC, PSE
Mechanical
Unit Dimensions (W x H x D) 482.6mm x 88mm x 529.5mm (19" x 3.5" x 20.8")
Unit Weight 12.6kg (27.8lb) (with 2 HDDs)



IDIS, 32-Ch, DirectIP NVR, H.265, PoE NOT INCLUDED (use DirectIP POE Switch), Recording 230Mbps, Total 370Mbps, 960ips@UHD, 8 SATA, RAID 1, 5, 6, 10, eSATA 4, ONVIF Profile S, Alarm in- 16 / out- 4, Audio in / out Local(NVR) : 1RCA / 1RCA + 2HDMI, RS232 (Terminal Block) / RS485 (Terminal Block), USB 2.0 x 2, USB 3.0 x 1, 2 HDMI, AC 100-240V~, 50/60Hz, 8.0 - 4.0A, Redundant Power Supply, Hard Drive: 80TB
