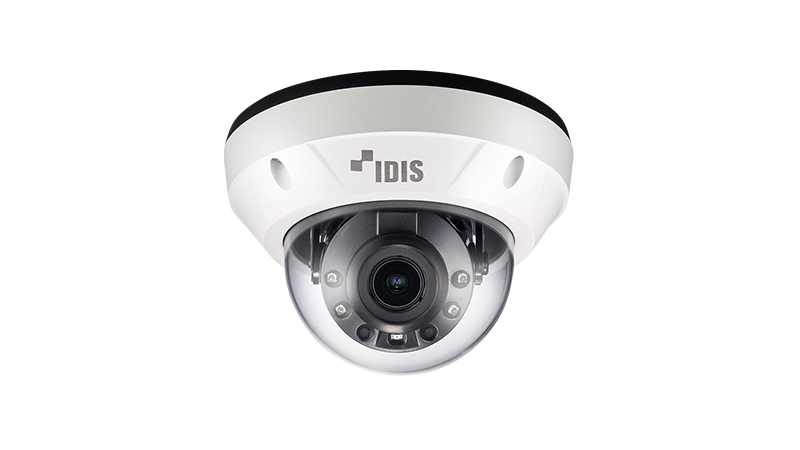

IDIS TC-D5532WRX 5M DirectCX Vandal IR Outdoor Dome Camera, 3.0~13.5mm, TVI/AHD/CVBS, 12VDC/24VAC, IR 30m / 98.4 ft(4ea)
Quantity:
- 5MP resolution
- Vari-focal Lens (f=3.0mm ~ 13.5mm)
- Day and night (ICR)
- True wide dynamic range (WDR)
- Motion Detection
- De-fog
- HLC
- Vandal Proof / IP67 supports
- Coaxial OSD Control
| Video | |
| Image Sensor | 1/2.8" CMOS Sensor |
| Max. Resolution | 2592 x 1944 |
| Scanning Mode | Progressive Scan |
| Frame Rate | TVI : 20ips@5MP, 12.5ips@5MP, 30ips@4MP, 30ips@2MP AHD : 20ips@5MP, 12.5ips@5MP, 30ips@4MP, 30ips@2MP CVBS NTSC / PAL(for previewing video) |
| Lens Type | Motorized Vari-focal |
| Focal Length | 3.0mm ~ 13.5mm |
| Aperture | F1.4 ~ F3.2 |
| Iris Control | DC Iris |
| Angular Field of View | Wide : 91º(H) 66º(V) 120º(D) Tele : 31º(H) 23º(V) 38(D) |
| Min. Illumination | COLOR : 0.13 Lux @ F1.4B/W : 0 Lux (IR LED ON) |
| S/N Ratio | More than 50dB |
| Dynamic Range | 120dB (True WDR) |
| Electronic Shutter Speed | Auto / Manual (1/30,1/25Sec ~ 1/30000Sec) / Anti-Flicker |
| Day and Night | Yes (ICR) |
| IR Distance (LEDs) | 30m / 98.4 ft(4ea) |
| Video Out | 1 HD BNC (Signal Switchable) |
| Function | |
| Functions via OSD menu control | · AGC : 0 ~ 10 Level Adjustable· Brightness : 0 ~ 20 Level Adjustable· Sens-UP : OFF / x2 ~ x32· WDR(Wide Dynamic Range) : OFF / FRAME / LINE (LOW, MIDDLE, HIGH) ROI Mode Available· Backlight Compensation(BLC) : OFF/ON· HLC : 1 ~ 20 Level Adjustable (ALL DAY/NIGHT ONLY)· ACE(D-WDR/ATR-EX) : OFF / LOW / MIDDLE / HIGH· Motion Detection : OFF/ON (4 Zone)· Privacy Masking : OFF/ON (24 Zone) BOX:16 POLYGON:8· Day & Night : Color/B&W/EXTERN· Smart-IR(IR OPTIMIZER) : 0~20 Level Adjustable· White Balance : AUTO / AUTOext / AWC-SET / MANUAL (3,000K, 5,000K, 8,000K)· Digital Noise Reduction : OFF / LOW / MIDDLE / HIGH· Mirror : MIRROR, FLIP· D-ZOOM(EZOOM) : x1 ~ x16· Sharpness : 0~10 Level Adjustable· De-fog : OFF/ON· GAMMA Correction : r = 0.45 ~ 0.75· Lens Shading(LSC) : OFF / ON(0 ~ 100% Level Adjustable)· Language : ENG / CHN / CHN(S) / JPN / KOR |
| Pan/Tilt/Rotate | |
| Pan Range | -175° ~ 175° |
| Tilt Range | 0° ~ 67° |
| Rotate Range | -177° ~ 177° |
| Environmental | |
| Vandal Proof Casing | IK10 |
| Outdoor Ready | IP67 |
| Operating Temperature | -10℃ ~ +55℃ (14℉ ~ +131℉) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Source | DC 12V, AC 24V |
| Power Consumption | DC 12V/8W, AC 24V/8.3W |
| Mechanical | |
| Dimensions | Ø155mm x 105mm (6.1" x 4.13") |
| Weight | 0.815kg (1.8lb) |
IDIS, 5MP DirectCX Dome Camera, Vandal IK 10, IP67, 20ips@5MP, 1/2.8" CMOS Sensor, 3.0mm ~ 13.5mm, TVI / AHD/ CVBS coaxial protocol, WDR, Motion Detection, De-fog, Coaxial OSD Control, DC 12V/ 8W, AC 24V/ 8.3W, IR 30m / 98.4 ft(4ea)
