IDIS

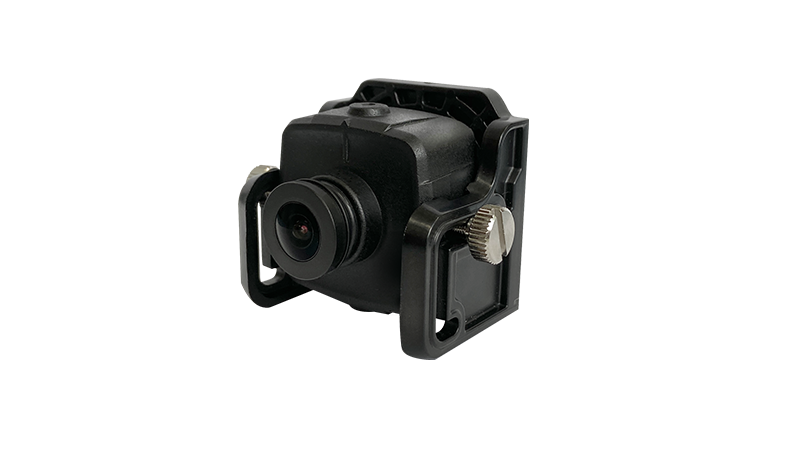

IDIS TC-V5211X 2M DirectCX Covert indoor Camera, 2.4mm, TVI/AHD/CVBS, 12VDC
Quantity:
- Maximum Full-HD Resolution
- Fixed Focus Lens (f=2.4mm)
- Supports Various Analog Outputs
- Advanced Backlight Compensation
- Smart Noise Reduction
- Privacy Masking
- Motion Detection
- Up to 16x Digital Zoom
- UTC Control
| Video | |
| Image Sensor | 1/2.8" CMOS Sensor |
| Max. Resolution | 1920 X 1080 |
| Scanning Mode | Progressive Scan |
| Frame Rate | TVI, AHD : 30ips@2MP CVBS : NTSC / PAL (for previewing video) |
| Lens Type | Fixed-focal |
| Focal Length | 2.4mm |
| Aperture | F2.0 |
| Iris Control | Fixed Iris |
| Angular Field of View | 132.1º(H) 73.2º(V) 150.8º(D) |
| Min. Illumination | COLOR : 0.1 luxB/W : 0.08 lux |
| S/N Ratio | More than 50dB |
| Dynamic Range | 120dB (True WDR) |
| Electronic Shutter Speed | Auto / Manual (1/30,1/25Sec ~ 1/30000Sec) / Anti-Flicker |
| Day and Night | Yes (Electrical) |
| IR Distance (LEDs) | N/A |
| Video Out | 1 HD BNC (Signal Switchable) |
| Function | |
| AGC | 0 ~ 10 Level Adjustable |
| Brightness | 0 ~ 20 Level Adjustable |
| Sens-UP | OFF / x2 ~ x32 |
| WDR(Wide Dynamic Range) | OFF / FRAME / LINE (LOW, MIDDLE, HIGH) ROI Mode Available |
| Backlight Compensation(BLC) | OFF/ON |
| HLC | 1 ~ 20 Level Adjustable (ALL DAY/NIGHT ONLY) |
| ACE(D-WDR/ATR-EX) | OFF / LOW / MIDDLE / HIGH |
| Motion Detection | OFF/ON (4 Zone) |
| Privacy Masking | OFF/ON (24 Zone) |
| Day & Night | Color/B&W/EXTERN |
| White Balance | AUTO / AUTOext / AWC-SET / MANUAL (3,000K, 5,000K, 8,000K) |
| Digital Noise Reduction | OFF / LOW / MIDDLE / HIGH |
| Mirror | MIRROR, FLIP |
| D-ZOOM(EZOOM) | x1 ~ x16 |
| Sharpness | 0~20 Level Adjustable |
| De-fog | OFF/ON |
| Lens Shading(LSC) | OFF / ON(0 ~ 100% Level Adjustable) |
| Environmental | |
| Operating Temperature | -10℃ ~ +50℃ (14℉ ~ +122℉) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Source | DC 12V |
| Power Consumption | 1.6W |
| Dimensions | Camera Body Dimensions: 1.46" (W) x 1.46" (H) x 1.2" (D) With Bracket Attached: 2.28" (W) x 1.78" (H) x 2.33" (D) |
| Weight | 0.055kg (0.12lb) |
IDIS, 2MP DirectCX Covert indoor Camera, 30ips@2mp, 1/2.8" CMOS Sensor, 2.4mm, TVI / AHD/ CVBS coaxial protocol, WDR, Motion Detection, De-fog, Coaxial OSD Control, DC 12V, 1.6W
