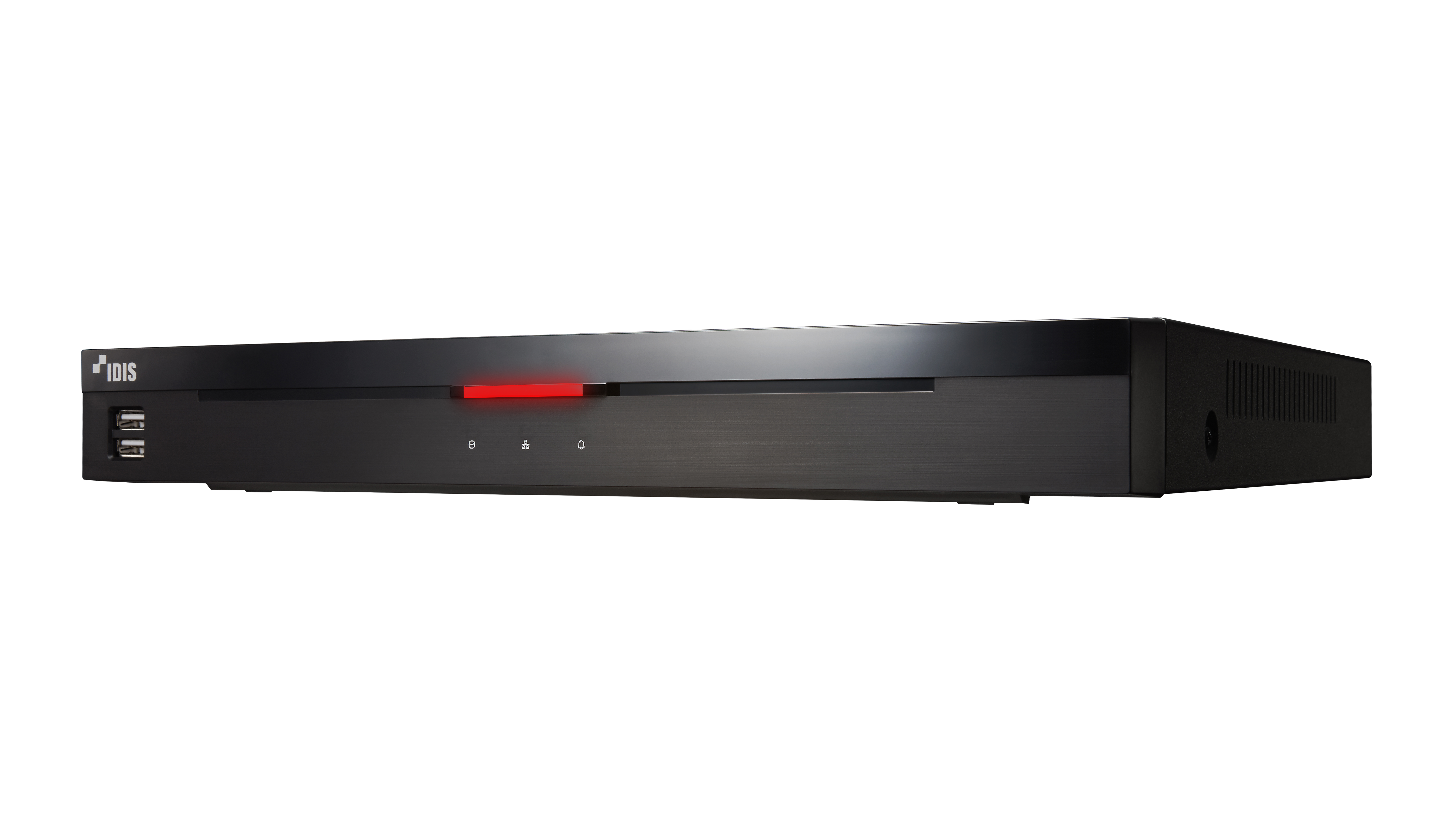

IDIS TR-2516 DirectCX 16channel H.265 Recorder / NDAA Compliant
Storage:4TB
Quantity:
- Supports Multi Standard Analog Camera
- Up to 240ips Full HD recording
- H.265 encoding , Intelligent Codec Support
- Up to 5MP resolution support
- UHD Display with HDMI output
- Full HD Display with HDMI and VGA output
- Long transmission distance over coax cable
- Supports OSD control over Coax
- Expandable up to 12TB using 2 SATA interfaces
- Supports one click network configuration through FEN service
| Video | |
| Video Inputs | 16 BNC |
| Supported Camera | HD-TVI : 5MP, 4MP, 3MP, 1080P, 720P AHD : 5MP, 4MP, 3MP, 1080P, 720P CVBS : NTSC / PAL |
| Video Outputs | 1 HDMI, 1 VGA |
| Display Resolution | HDMI : 3840 x 2160, 1920 x 1080, 1280 x 1024 VGA : 1920 x 1080, 1280 x 1024 |
| Display Speed | Up to 480ips |
| Digital Zoom | x2 ~ x7 |
| Recording | |
| Recording Resolution | 2560x1920, 1280x1920, 2560x1440, 1280x1440, 1920x1536, 1920x1080, 1280x720, 960x576, 960x480, 720x576, 720x480, 960x288, 960x240, 640x360, 720x288, 720x240, 480x288, 480x240, 360x288, 360x240 |
| Video Compression | H.265, H.264, Intelligent Codec |
| Recording Mode | Time-Lapse, Event, Pre-Event, Panic |
| Trigger Event | Motion, Video loss, Video Blind, Alarm in, Text-In, System |
| Playback | |
| Performance | 16ch synchronous playback |
| Search Mode | Time-lapse, Event log, Text-in, Thumbnail |
| Digital Zoom | x2 ~ x7 |
| Storage | |
| HDD | SATA x 2 |
| Total Capacity | The maximum HDD capacity is updated as new HDD models become available. For the most recent information, please check here |
| Network | |
| Client Connection | Gigabit Ethernet x1 |
| Transmission Speed | 15ips@Full HD per channel, same as recording stream |
| Event Notification | Email (attach clip cbf, mp4), Callback to Remote S/W, Push notification (IDIS Mobile) |
| Two-way Audio | Yes |
| Interface | |
| Audio In / Out | 4 RCA / 1 RCA + 1 HDMI |
| Alarm In / Out | 4 In / 1 Relay out |
| Alarm Reset In | - |
| Serial Interface | RS232 / RS485(Terminal Block) |
| USB | USB 2.0 x 2(Front x 2) |
| User Interface | Mouse, IR Remote Control, Front Button, Network Remote Keyboard |
| General | |
| Operating System | Embedded Linux |
| Environmental | |
| Operating Temperature | 0°C to 40°C (32℉ ~ 104℉) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Input | Adaptor Input : 100-240V AC, 50/60Hz, 1.5A, Output : 12V DC, 5A |
| Power Consumption | 12V=, 1.72A, 20.64W |
| Approval | FCC, CE, KC |
| Mechanical | |
| Unit Dimensions (W x H x D) | 340mm x 46.5mm x 315.5mm (13.4" x 1.8 x 12.4") |
| Unit Weight | 3.1 kg (with 2 4TB HDD) |
IDIS, 16-Ch, DirectCX, H.265, 16-BNC, 240ips@1080P, 112ips@5MP, HD-TVI : 5MP, 4MP, 3MP, 1080P, 720P, AHD : 5MP, 4MP, 3MP, 1080P, 720P, CVBS : NTSC / PAL, SATA X 2, Alarm in- 16 / out 1, Audio in / out 4 RCA / 1 RCA + 1 HDMI, RS232 / RS485 (Terminal Block), USB 2.0 x 2 (Front x 2), HDMI & VGA out, Adaptor Input : 100-240V AC, 50/60Hz, 1.5A, Output : 12V DC, 5A, Hard Drive:12TB
