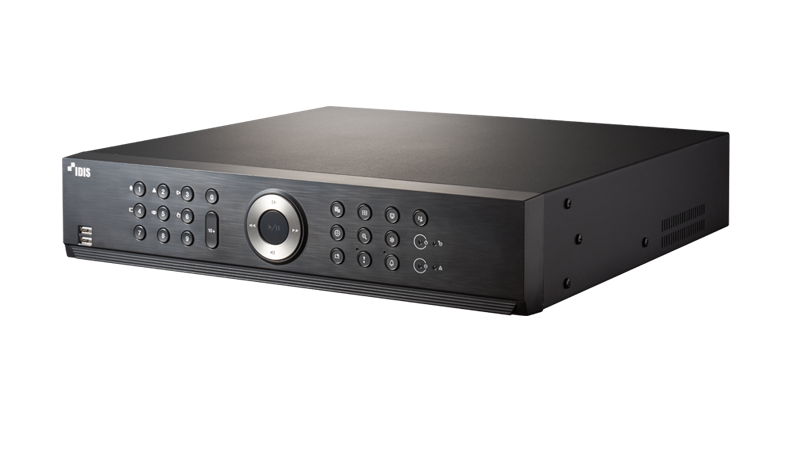

IDIS TR-4508 DirectCX 8channel H.265 Recorder / NDAA Compliant
Storage:4TB
Quantity:
- Supports Multi Standard Analog Camera
- Up to 240ips Full HD recording
- H.265 encoding, Intelligent Codec Support
- Up to 5MP resolution support
- UHD Display with HDMI output
- Full HD Display with HDMI and VGA output
- Long transmission distance over coax cable
- Supports OSD control over Coax
- Expandable up to 40TB using 4 SATA interfaces and 1 eSATA storage interface
- Supports one click network configuration through FEN service
| VIDEO | |
| Video Inputs | 8 BNC (Multistandard Analog) |
| Supported Camera Types | 5MP20, 5MP12, 4MP30, 4MP15, 3MP30, 3MP18, 1080P30, 1080P25, 720P30, 720P25, CVBS(NTSC/PAL) |
| Video Outputs | 1 HDMI, 1 VGA, 1 BNC(Spot) |
| Display Resolution | HDMI : 3840 x 2160, 1920 x 1080, 1440 x 900, 1280 x 1024 VGA : 1920 x 1080, 1440 x 900, 1280 x 1024 |
| Display Speed | Up to 240ips |
| Digital Zoom | x2 ~ x7 |
| RECORDING | |
| Recording Resolution | 5MP, 4MP, 3MP, 1920x1080, 1280x720, 960x480,720x480,960x240, 720x240 480x240, 360x240 |
| Frame Rate | 240ips@1080P |
| Compression | H.265, H.264, Intelligent Codec |
| Recording Mode | Time-Lapse, Event, Pre-Event, Panic |
| Trigger Events | Alarm in, Motion detection, Video loss, Text-in |
| PLAYBACK | |
| Performance | 8ch 1080p synchronous playback |
| Search Mode | Time-lapse, Event log, Text-in |
| Digital Zoom | x2 ~ x7 |
| STORAGE | |
| HDD | SATA x4, eSATA x1 |
| Total Capacity | The maximum HDD capacity is updated as new HDD models become available. For the most recent information, please check here |
| Data Export Device | USB HDD, USB Stick |
| NETWORK | |
| Client Connection | Gigabit Ethernet x1 |
| Transmission Speed | 30ips@Full HD per channel, same as recording stream |
| Remote Data Export | IDIS Player, AVI, JPG, BMP |
| Event Notification | Email (attach clip cbf, mp4), Callback to Remote S/W, Push notification (IDIS Mobile) |
| Two-way Audio | Yes |
| Client Viewer | IDIS Center, IDIS Mobile, IDIS Web, IDIS Solution Suite |
| INTERFACE | |
| Audio In/ Out | 4 RCA / 1 RCA 1 HDMI |
| Alarm In / Out | 8 In / 4 Relay Out |
| Alarm Reset In | 1 |
| Serial Interface | RS232, RS485 (Terminal Block), USB 2.0, USB 3.0 |
| User Interface | Mouse, IR Remote Control, Front Button, Network Remote Keyboard |
| GENERAL | |
| Operating System | Embedded Linux |
| UNIT Dimensions (W x H x D) | 430mm x 88mm x 413 mm (16.9" x 3.5" x 16.3") |
| Unit Weight | 6.2kg (13.7 lbs)(with 2 x 4TB HDD) |
| Working Temperature | 0°C to 40°C (32℉ ~ 104℉) |
| Operating Humidity | 0% ~ 90% |
| Power Input | 100-240V~, 50/60Hz, ≤ 2.0A |
| Power Consumption | 100-240V~, 50/60Hz, 0.77-0.31A, 75W |
| Approvals | FCC, CE, KC, CB, UL, PSE |
| Sequence | Yes |
| Multiscreen on Spot Monitor | Yes |
| Color Control | brightness, constrast, saturation, hue |
| Record | |
| Scheduling Method | Simple Mode - schedule-list type (add/remove) , schedule a week by hour, holiday setting Advanced Mode - each event/time shedule-list type (add/remove), schedule a week by hour, holiday setting |
| Recording Setup Programmable for each Ca | Yes |
| ARCHIVE & Data Export | |
| Archiving | No |
| NETWORK | |
| Web Browser Access | Internal, External |
| Remote PTZ Control | Yes |
| Remote PTZ Setup | Yes |
| Remote PTZ Advanced Setup | Yes |
| Remote Data Export | Clip Player, AVI, JPG, BMP, PNG, TIF, PDF |
IDIS, 8-Ch, DirectCX, H.265, 8-BNC, 240ips@1080P, 80ips@5MP, HD-TVI : 5MP, 4MP, 3MP, 1080P, 720P, AHD : 5MP, 4MP, 3MP, 1080P, 720P, CVBS : NTSC / PAL, SATA x 4, eSATA x 1, Alarm in- 8 / out 4, Audio in / out: 4 RCA / 1 RCA + 1 HDMI, RS232 / RS485 (Terminal Block), USB 2.0, USB 3.0, HDMI & VGA out, BNC(Spot), 100-240V~, 50/60Hz, 1.0-0.5A, 80W, Hard Drive:24TB
