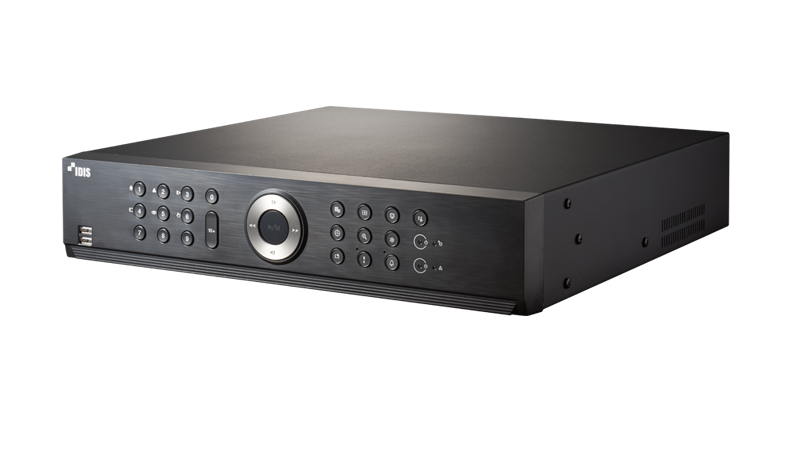

IDIS TR-4516 DirectCX 16channel H.265 Recorder / NDAA Compliant
Storage:4TB
Quantity:
Choose options
Storage:4TB
Quantity:
Storage:4TB
Quantity:
- Supports Multi Standard Analog Camera
- Up to 480ips Full HD recording
- H.265 encoding, Intelligent Codec Support
- Up to 5MP resolution support
- UHD Display with HDMI output
- Full HD Display with HDMI and VGA output
- Long transmission distance over coax cable
- Supports OSD control over Coax
- Expandable up to 40TB using 4 SATA interfaces and 1 eSATA storage interface
- Supports RAID 1
- Supports one click network configuration through FEN service
- Supports Dual Track Recording
| Video | |
| Video Inputs | 16 BNC |
| Supported Camera | HD-TVI : 5MP, 4MP, 3MP, 1080P, 720P AHD : 5MP, 4MP, 3MP, 1080P, 720P CVBS : NTSC / PAL |
| Video Outputs | 1 HDMI, 1 VGA, 1 BNC(Spot) |
| Display Resolution | HDMI : 3840 x 2160, 1920 x 1080, 1440 x 900, 1280 x 1024 VGA : 1920 x 1080, 1440 x 900, 1280 x 1024 |
| Display Speed | Up to 480ips |
| Digital Zoom | x2 ~ x7 |
| Recording | |
| Recording Resolution | 2560x1920, 2560x1440, 1920x1536, 1920x1080, 1280x720, 960x480,720x480,960x240, 720x240, 480x240, 360x240 |
| Video Compression | H.265, H.264, Intelligent Codec |
| Recording Mode | Time-Lapse, Event, Pre-Event, Panic |
| Trigger Event | Motion, Tampering, Video loss, Alarm in, Text-In, System |
| Playback | |
| Performance | 16ch synchronous playback |
| Search Mode | Time-lapse, Event log, Text-in |
| Digital Zoom | x2 ~ x7 |
| Storage | |
| HDD | SATA x 4, eSATA x 1, RAID 1 Supported |
| Total Capacity | The maximum HDD capacity is updated as new HDD models become available. For the most recent information, please check here |
| Network | |
| Client Connection | Gigabit Ethernet x1 |
| Transmission Speed | 30ips@Full HD per channel, same as recording stream |
| Event Notification | Email (attach clip cbf, mp4), Callback to Remote S/W, Push notification (IDIS Mobile) |
| Two-way Audio | Yes |
| Interface | |
| Audio In / Out | 4 RCA / 1 RCA + 1 HDMI |
| Alarm In / Out | 16 In / 4 Relay Out |
| Alarm Reset In | Yes |
| Serial Interface | RS232, RS485 (Terminal Block) |
| USB | USB 2.0 x 2, USB 3.0 x 1 |
| User Interface | Mouse, IR Remote Control, Front Button, Network Remote Keyboard |
| General | |
| Operating System | Embedded Linux |
| Environmental | |
| Operating Temperature | 0°C ~ +40°C (32℉ ~ +104℉) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Input | 100-240V~, 50/60Hz, ≤ 2.0A |
| Power Consumption | 100-240V~, 50/60Hz, 1.0-0.5A, 80W |
| Approval | FCC, CE, KC, CB, UL, PSE |
| Mechanical | |
| Unit Dimensions (W x H x D) | 430mm x 88mm x 427mm (16.9" x 3.5" x 16.8") |
| Unit Weight | 6.2kg (13.7 lbs)(with 2 x 4TB HDD) |
IDIS, 16-Ch, DirectCX, H.265, 16-BNC, 480ips@1080P, 160ips@5MP, HD-TVI : 5MP, 4MP, 3MP, 1080P, 720P, AHD : 5MP, 4MP, 3MP, 1080P, 720P, CVBS : NTSC / PAL, SATA X 4, eSATA x 1, Alarm in- 8 / out 4, Audio in / out: 4 RCA / 1 RCA + 1 HDMI, RS232 / RS485 (Terminal Block), USB 2.0, USB 3.0, HDMI & VGA out, BNC(Spot), 100-240V~, 50/60Hz, 1.0-0.5A, 80W, Hard Drive:4TB
