- 5 megapixel CMOS image sensor
- Video without compression, no delay with high quality and real-time monitoring.
- Auto focus with zoom / focus motorized lens
- 2D +3D noise reduction
- DWDR function
- High efficiency IR LED, radiant distance up to 20m
- Day & Night (IR cut removable)
- Long transmission distance–Coaxial cable
- Seamless compatibility with the standard Analog equipment
- UTC function (AHD-Coaxial protocol)
- IP66 rain and dust resistant Vandal resistant approve
- Video Output: AHD 5MP or CVBS 960H

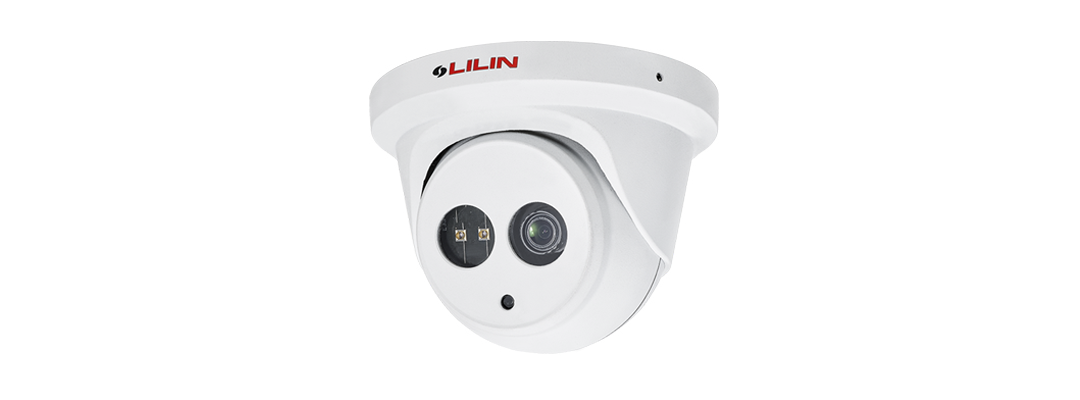

| Model | AHD655AX2.8 |
| Min. illumination/Low Light Mode (Colour) | Color：0.025 Lux at F1.6 B/W：0 Lux with IR LED ON |
| Video output | AHD / CVBS / TVI /CVI |
| Resolution | 2,592(H)x1,944(V)@20fps |
| Focal Length | 2.8–8 mm |
| Iris | F1.6 |
| Angle of View | 95°–47.2°(H) 68°–35°(V)127°–59°(D) |
| Infrared LED Wave Length | 850nm |
| Max IR distance | 20M |
| Pick Up Element | 1/2.8" CMOS Image Sensor |
| Effective pixels | 2,704(H) x 2,104(V) |
| Operating temperature | -40°C – +50°C (-40°F – 122°F) |
| Storage temperature | -25°C – +60°C (-13°F – 140°F) |
| Operating humidity | 0% – 90% RH |
| CE | Yes |
| IP Rating | IP66 |
| Vandal Resistant Rating / IK Rating | IK10 |
| Scanning System | Progressive Scan |
| Sync. Mode/ Synchronization | Internal |
| Infrared Cut Filter | Auto / Day (Color) / Night (Mono) |
| S / N Ratio | More than 50dB (AGC off) |
| 3D Noise Reduction | 2D + 3D DNR |
| 2D WDR | Off / On / Auto |
| UTC | UTC (AHD-Coaxial protocol Supported) |
| Auto Gain Control | Auto (16Step) |
| White Balance | ATW / AWC |
| Electrical Shutter | 1/30(1/25)s – 1/50,000s |
| Back Light Compensation (BLC) | Off / On |
| Auto Focus | Semi / Auto / Manual |
| Dimensions | Ø115 × 91(H) mm |
| Weight | 380g |
| Power Supply | DC 12V±10％ |
| Power Consumption | 5W |
