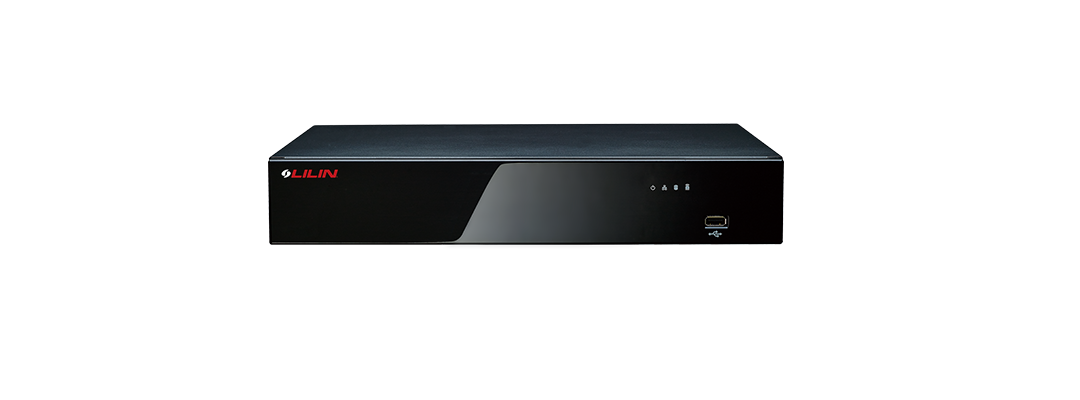

Lilin DHD6216-1X6TB 6TB 16CH 5MP H.265 5-in-1 Video Recorder, P2P, UTC, HD-AHD, CVI
Quantity:
- 16 Channel Hybrid DVR
- ONVIF compatible 5M H.264/H.265 network camera supported
- UTC AHD/ TVI/ CVI camera supported
- Up to 12TB HDD supported
- Remote connection with Navigator Software
- Mobile phone ( iOS, Android ) solutions provided
- Support P2P connection (included)
- Chrome, Edge, Firefox, IE, Opera, Safari supp
| Model | DHD6216 |
| Supports (Video Input)/Network video /IP video | AHD/ TVI/ CVI/ Analog camera / Network camera |
| Input (Video input) | 16 CH |
| Simulation HD / Analog Camera Input Resolution(Video input) | AHD/TVI 5MP, CVI 4MP, 1080P and analog camera D1/960H |
| Simulation HD / Analog Camera Maximum Input Frame Rate (Video input) | 5M 240 / 200 FPS 4M 240 / 200 FPS 1080P 480 / 400 FPS 720P 480 / 400 FPS 960H 480 / 400 FPS |
| Network Camera Resolution(Video input) | 5M / 4M / 3M / 1080P / 720P |
| Network Camera Maximum Input Frame Rate(Video input) | Single Channel 5M 15 FPS / 4M 20 FPS / 3M 15 FPS / 1080P 30 FPS |
| Output | HDMI 4K，VGA 1080P |
| Split Screen | 1 / 4 / 6 / 8 / 9 / 12 / 13 / 16 split division,sequence mode, freeze |
| Digital zoom | Up to 64× on live and playback |
| Network video Format | H.264 / H.265 |
| Analog Camera Resolution (Recording) | CIF ~ 5M |
| Simulation HD / Analog Camera Maximum Recording Frame Rate( Recording ) | 5M 100 / 100 FPS 4M 120 / 100 FPS 1080P 240 / 200 FPS 720P 480 / 400 FPS 960H 480 / 400 FPS |
| Maximum Network Camera Input Throughput(Recording) | 96Mbps |
| Network Camera Resolution (Recording) | CIF ~ 5M |
| Network Camera Maximum Recording Frame Rate | 5M 240 FPS, 4M 320 FPS, 3M 240 FPS, 1080P 480 FPS |
| Application/ Recording Mode | Continue, Schedule, Event |
| Recording schedule | Each channel 7day × 24 hours time table, recording mode configurable |
| Alarm event actions | Motion grid (20×12, multi-level sensitivities) / DI |
| Alarm Notification (Recording) | Alarm notification iOS、android / E-Mail / FTP / buzzer / DO |
| Playback Search | Alarm event / Operation event / System event / Meta data event / Time search |
| Playback Display | 16CH synchronous playback |
| Analog Camera Playback Resolution | CIF ~ 5M |
| Network Camera Playback Resolution | CIF ~ 5M |
| Playback Speed | Fast rewind 2×~64× / Fast forward 2×~64× / Slow motion 1/2~1/64 |
| Internal HDD (Storage) | 2 × 3.5” HDD, 12TB supported |
| USB Flash Disk(Backup) | Up to 128 GB supported (FAT32) |
| Network Backup | Via HTTP / FTP |
| Audio Compression | G.711 u-law & AAC |
| Analog Audio Input(Audio) | 16 CH, RCA × 8, D-Sub 15 x 1 |
| Audio Output | 1 CH, RCA × 1 ( 0.7Vp-p, 300 Hz to 3KHz ) |
| Network ports | RJ-45 Gigabit Ethernet × 1 |
| Protocols | ARP / TCP/IP / UDP / HTTP /HTTPS / SMTP / FTP / DNS/ DDNS / PPPoE / NTP / DHCP/ RTSP/ RTP/ RTCP/ Onvif Profile S |
| Web (Network) | Direct internet browser access / Multiple users access |
| P2P(Network) | Support (included) |
| Mobile Application | iOS / Android supported |
| VMS support | Navigator |
| Backup / Playback (Software) | Remote Playback Manager / Backupman, multiple DVRs file download and multi-channel playback |
| Ports | DI × 16 and DO × 1 ( With programmable condition ) |
| Reports( System ) | Alarm event, operation, configuration and system execution log full reports exporting over HTTP or USB |
| Authentication ( System ) | User authentication with feature configurable and IP address blocking |
| Languages | Arabic, Chinese( Traditional ), Chinese( Simplified ), English, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Turkish |
| HDD Inspection(System) | S.M.A.R.T monitoring / File system de-fragmentation/ IO read write error |
| Recorded Reserve Time( System ) | 1~365days |
| Time | Daylight saving / NTP / External USB GPS time sync |
| Mouse | Mouse click, drag and scroll |
| Remote Controller | IR Remote controller (Optional) |
| PTZ protocol | RS-485 OUT × 1, MLP1、MLP2 、PELCO D、PELCO P |
| UTC | UTC AHD/ TVI/ CVI camera supported |
| USB to RS-232 | Record external metadata via USB to RS-232 cable, display at live and playback |
| CPU | ARM Cortex A53 Dual Core |
| OS | Embedded Linux Kernel 4.9 |
| WDT | Hardware watchdog timer |
| CE | Yes, EMI Class B |
| FCC | Yes, EMI Class B |
| Power Supply | Adapter DC 12V, 5A,60W × 1 |
| Operating temperature | 0℃ ~ 45℃ |
| Operating humidity | 5% ~ 80% |
| Dimensions | 360× 316× 60 mm |
| Weight | ≈ 2.4 kg ( Without hard drive ) |
