- Radiant distance up to 100m
- Infrared Wave Length 850nm
- IP67 rain and dust resistant
- Status Output support

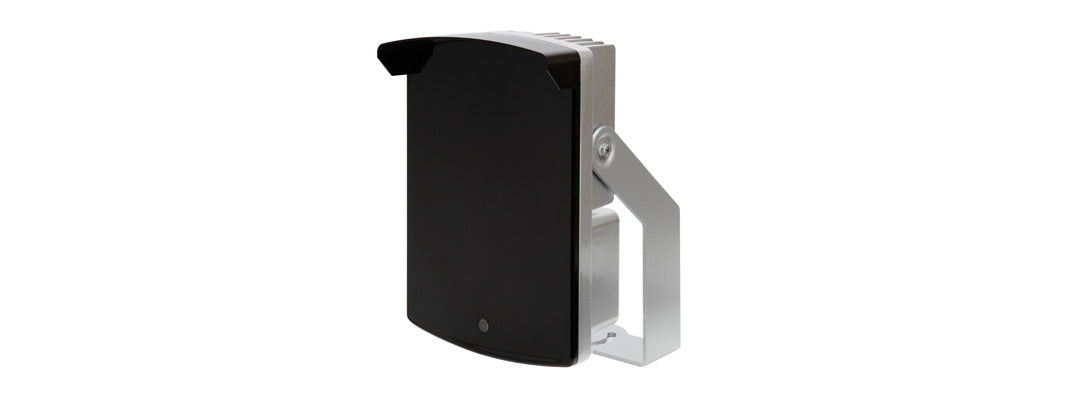

| Model | IM15608 |
| Max IR distance | 1100m |
| Infrared LED Wave Length | 850nm |
| Beam Spread | 60° |
| Infrared LED Quantity | 48 Units |
| Infrared LED Power On | Sensor Auto Control, Adjustable Control Point / External Input Control |
| Status Output | Relay contact N.O., N.C., COM (24VDC,1A) |
| Mounting | Ceilling & Wall |
| IP Rating | IP67 |
| Vandal Resistant Rating / IK Rating | IK10 (Casing) |
| CE | Yes, EMI Class A |
| FCC | Yes, EMI Class A |
| UKCA | Yes, EMI Class A |
| Starting Temperature | -10°C – +50°C (14°F – 122°F) |
| Operating temperature | -40°C – +50°C (-40°F – 122°F) |
| Storage temperature | -25°C – +60°C (-13°F – 140°F) |
| Operating humidity | 0% – 90% RH |
| Casing Material | Aluminum alloy & Polycarbonate |
| Color | Silver |
| Dimensions | Main Body: 172 (W) x 242 (H) x 105 (D) mm with Bracket: 176 (W) x 260 (H) x 192 (D) mm |
| Weight | 2400g |
| Power input | AC100 – 240V ±10% |
| Power Consumption | 0.82A, 74W |
| Warranty | 2 years |
Outdoor; Illuminator; IR(60°); 850mm; IR(100M); AC 100-240V
