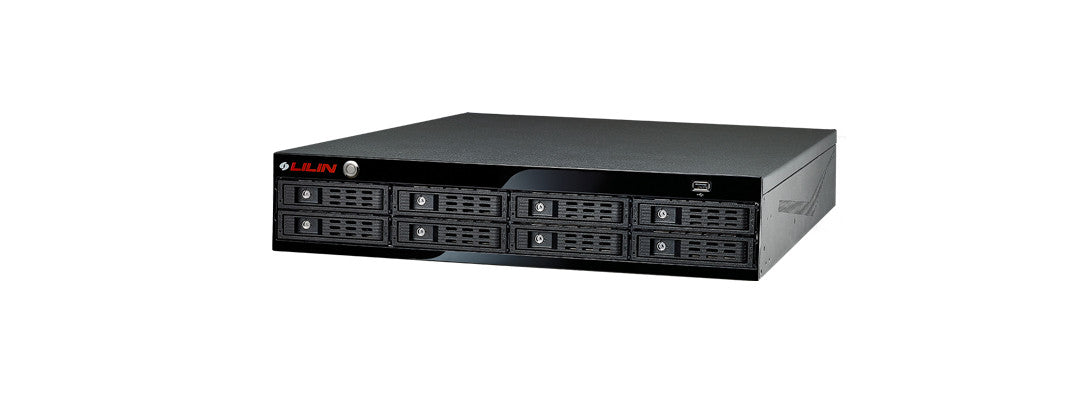

Lilin NAV08072A-8X18TB 144TB RAW RAID Navigator Server, 72-Channel, Intel® Core i5-8500 Processor
Quantity:
Choose options
Quantity:
- Up to 72channels 1080P/3M/4M/5M/8M/12M Network streaming, recording
- built-in 1 × 500GB 2.5 Inch SATA SSD (OS)
- Support up to 8 × Hot-swap 3.5 Inch SATA HDD (recording)
- Support failover up to 36 channel per server
- Dual streaming decoding mode supported
- 1 monitor support up to 36 channels in total (480P 15fps)
- Support multi-channels synchronized playback (remote or local)
- Support Fisheye camera dewarping
- Built-in dual port Gigabit Ethernet, RJ-45 × 2
- Built-in 500W Power Supply
- 2U dimension for rackmount cabinet
- LSI SAS 9361-8i RAID
Description
LILIN NAV08072A 72-channel Recorder supports all series of LILIN product such as LILIN IP cameras, PTZ ,IP cameras, DVRs and NVRs. This recorder can support up to 72 channels of 1080P/3MP/4MP/5MP/8MP/12MP resolution for live display, playback and recording.
It can support up to 8 of 3.5 inch Hard disks and the failover feature is supported with dual streaming. One monitor can support up to 36 division view at the same time. The multi-channel playback is also supported. The dual network interface cards are built-in with 1Gbps.
NAV08072A is capable of supporting continuous and schedule recordings. Various alarm detections including motion, audio, IVS, and ANPR (Optional) for triggering various alarm outputs. NAV08036A also supports up to 1080P with 120FPS and 4K 30FPS video streams.
Simultaneously playback for 36-channel(480P 15fps) with one monitor, the group in NAV with permission setting is supported. The remote live view is also dual stream supported.
| Model | NAV08072A |
| Network video support | LILIN IP camera, LILIN IP camera over HTTPS, LILIN Fisheye camera, LILIN IP speed dome, LILIN DVR/NVR, LILIN DHD recorder, NAV live streaming, P2P live streaming, ONVIF camera, manual RTSP, screen capture, USB video input, picture capture |
| Chassis | 2U Chassis |
| IP Video Input | Up to 72 channels 1080P / 3M / 4M / 5M / 8M / 12M |
| Network video Format | H.264 / H.265 / MJPEG |
| Maximum Network Throughput | Upload: up to 500Mbps, Download: up to 500Mbps |
| Internal HDD / Swap Drive Bay | built-in 1 × 500GB 2.5 Inch SATA SSD (OS) Support up to 8 × Hot-swap 3.5 Inch SATA HDD (recording) |
| Video input (Support quantity) | Max. 72 channels |
| Camera name | 20 characters |
| Channel editing | Mouse drag-n-drop |
| Fisheye Dewarp Mode | Ceiling and ground mounted 1 R One Region, 3 R1O Three Regions One Fisheye, 4 R Four Regions, 2 R1P Two Regions One Panoramic 360, 2 P Two Panoramics 180, 8 R1O Eight Regions One Fisheye Wall mounted 1 R One Region, 3 R1O Three Regions One Fisheye, 4 R Four Regions, 2 R1P Two Regions One Panoramic 180, 1 WP One Wall Panoramic 180, 8 R1O Eight Regions One Fisheye |
| Digital zoom | Yes, ePTZ supported |
| Privacy Mask | Supported |
| Remote Live Video | Yes, web and NAV Client |
| HDMI output | 1 × HDMI port 1.4b, (4096 × 2160@24Hz) |
| DisplayPort output | 1 × DisplayPort 1.2, (4096 × 2304@60Hz) |
| Split Screen | 4, 9, 16, 25, 36 |
| Dual stream technology (Video output) | Multi-channel displays D1 and full screen displays 1080P / 3M / 4M / 5M / 8M / 12M resolution |
| Multi-screen (Video output) | 1 monitor support up to 36 channels in total (480P 15fps) |
| Application/ Recording Mode | Alarm, motion, schedule, and manual |
| Recording schedule | 7 days × 24 hrs time table, recording mode configurable |
| Recording resolution & framerate | Max 12MP@20fps, 8MP@30fps, 5MP@30fps, 4MP@30fps, 3MP@30fps, 1080p@120fps, and ROI recording supported |
| Alarm recording | Remote digital input, remote IVS detection, remote face detection, remote tamper detection, remote audio detection, external IO, motion detection, NAV CGI Triggering, video loss detection, speed measurement detection, ANPR detection, facial recognition, remote LPR detection, QR code detection, aida behavior detection |
| Audio Recording | Yes |
| Circular recording | Yes / size customizable |
| Limited recording | Yes / days customizable |
| Failover | Supported |
| Video Archiving | Yes |
| Low bitrate recording | Yes |
| Remote network NAS | Support NAS (SMB/CIFS), iSCSI |
| Playback Search | Date, time, Smart search, Alarm search, POS, ANPR search, Face search, Face trace search (in FR server only), Tagging search |
| Playback resolution and framerate | Max 12MP@20fps, 8MP@30fps, 5MP@30fps, 4MP@30fps, 3MP@30fps, 1080p@120fps |
| Motion recording | 25ch |
| Playback Speed | Fast Rewind: 1/8, 1/4, 1/2, 1X, 2X, 4X, 8X, 16X, 32X Fast Forward: 1/8, 1/4, 1/2, 1X, 2X, 4X, 8X, 16X, 32X |
| Backup / Video input | Max. 36 channels, AVI & MP4 file format supported |
| Digital watermark (Video tamper resistance) | support digital watermark feature to ensure the backup footage is not got forged and modified |
| Remote video (Playback) | NAV Server / Navigator Client / DVR / NVR / IP camera SD card supported up to 36 channels |
| Alarm Management | Play audio file, send email notification, PTZ preset, digital output triggering, full screen, post alarm record, pre-alarm record, advanced alarm digital output, send customizable HTTP POST CGI URL to third party device, alarm ACK, alarm snapshot, text overlay, App cloud push notification, NCC TV wall ACK, NCC eMap Center Alarm, NCC play sound, NCC global alarm setting, all these action can be automatic or scheduled |
| Alarm recording(Alarm / event) | Pre-alarm:1 ~ 10 seconds and post-alarm: 1 sec ~ 59 minutes |
| Alarm scheduling | Up to four alarm tables with AND logic |
| Alarm event actions | Various alarm log including video loss, stop recording, schedule, logon, operation log |
| Digital Output | Controllable via IP cameras |
| Video archiving & sync. | Individual camera configurable, scheduling and instant archiving, sync recording data with NAV server / NVR / DVR / IP camera SD card. |
| Keyboard Keypad | PIH-931D keyboard controllable via rs-485 to usb converter for PTZ, ePTZ, and ROI features |
| Audio | PCM/G.711/AAC, two-way audio, audio recording |
| POS | Third party TCP/IP/ RS-232 / Bluetooth supported / HID USB Barcode scanner |
| Protocols | ARP / TCP/IP / RTSP / ONVIF / HTTP / HTTPS / SMTP / DNS / PPPoE / SDDP |
| Mobile Application | LILINViewer, iPhone and Android |
| IP Scan | Supported, easy-to-setup for IP address |
| VMS support | Support NAV Client software |
| eMap | Supported |
| eMap live monitoring | Each map can see 64 live video at the same time |
| Auto Switch to the Map of Alarm Event | Supported |
| Snapshot | Motion detection / external alarm / audio detection alarm / face detection |
| Alarm Event Actions (Accessories) | Digital output controllable, snapshots, and alarm popup |
| (eMap)Central management | Centralized monitoring channels from multiple server |
| (eMap)Online Maps | Google map and Baidu map up to 128 eMap, GPS devices supported |
| Number of Mark for Online Map | Each online map can support 5000 camera mark |
| Number of Mark for Offline Map | Each offline map can support 500 camera mark |
| CPU | Intel® Core™ i5-10500 |
| RAM | 32GB (2 × DDR4 16GB) |
| Chipset | Intel® H410 |
| Display card | Intel® UHD Graphics 630 |
| Ethernet Ports | 2 × RJ-45 1GbE |
| Audio (Hardware) | 2 × Audio jack(s) |
| Rear panel USB port | 2 x USB 2.0, 2 x USB 3.2(Gen1) Type-A |
| Front panel USB port | 1 x USB 3.0 Type-A |
| System FAN | 1 × 60mm rear exhaust fans |
| Hot spare | support |
| Raid control | LSI SAS 9361-8i RAID |
| Raid mode | RAID 0, 1, 5, 6, 10, 50 |
| SSD HDD | built-in 1 × 500GB 2.5 Inch SATA SSD (OS) Support up to 8 × Hot-swap 3.5 Inch SATA HDD (recording) Note: Do not use WD Purple HDDs for NAV HDD installation. Please use 7200RPM WD Red Pro for non-RAID installation, WD (Gold) Enterprise HDDs for RAID installation, or other Enterprise HDDs |
| Languages | English, Traditional Chinese, Spanish, German, French, Russian, Japanese, Portuguese, Italian, Simplified Chinese, Slovenian, Czech, Hungarian, Turkish, Arabic, Persian, Bengali, Vietnamese |
| OS | Windows 10 embedded LTSB (including above) |
| Daylight Saving | Daylight saving time by Windows OS |
| Power Consumption | 500W |
| Power Supply | 110V ~ 240V |
| Operating Temperature | 10°C ~ 40°C(50°F ~ 104°F) |
| Storage Temperature | 0°C ~ 70°C(32°F ~ 158°F) |
| Relative Humidity | 10% ~ 90% (non-condensing) |
| Dimensions | 88 (H) × 438 (W) × 451 (D) mm |
| Color | Black |
| Weight | 23.14 lbs (10.50kg) |
