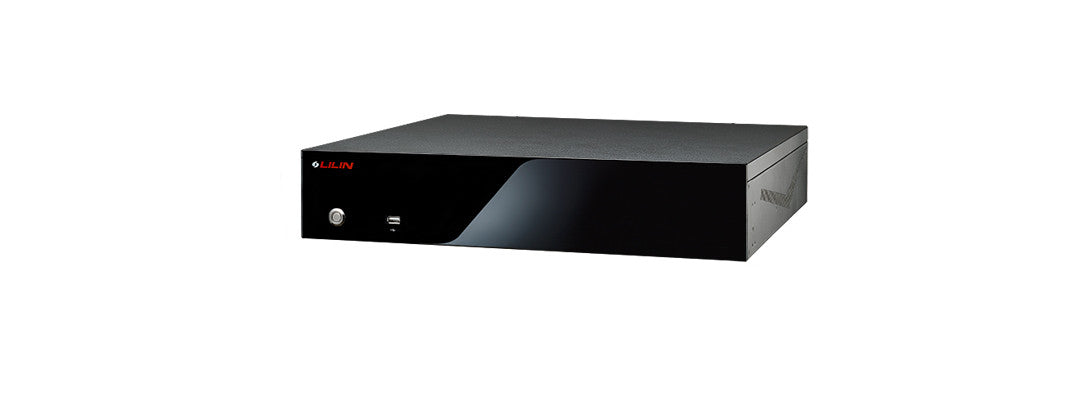

Lilin NAV2800AI-2X4TB 8TB 8-ch 2U AIDA server, 5 Aida power, up to 5 Ch AI, 8 Ch recording
Quantity:
Choose options
Quantity:
- Support 8 channels for AIDA recognition
- Include one M.2 interface VPU Core (model number PMHXM2280)
- Number plate recognition (optional)
- Car mark recognition (optional)
- Up to 8 channels 1080P network streaming, recording, and display
- built-in 1 × 500GB 2.5 Inch SATA SSD (OS)
- built-in 2 × 4TB 3.5 Inch SATA HDD (recording)
- Support up to 2 x 3.5 Inch SATA HDD
- Dual streaming decoding mode supported
- 1 monitor supported, up to 8 channels video display
- Built-in dual port Gigabit Ethernet, RJ-45 × 2
- Built-in 500W Power Supply
- 2U dimension for rackmount cabinet
- Possible to combine different engine in same server
- 5 Aida power per server
LILIN NAV2800AI Aida Server is a 8 channels 2U server that can support up to 2 AI engine at the same time. It provides 5 AIDA Processing Power that can be allocate by user according to its purpose. Through our Navigator software user will be able to search the video by category, doing playback and also do backup.
| Model | NAV2800AI |
| Network video support | LILIN IP camera, LILIN IP camera over HTTPS, LILIN Fisheye camera, LILIN IP speed dome, LILIN DVR/NVR, LILIN DHD recorder, NAV live streaming, P2P live streaming, ONVIF camera, manual RTSP, screen capture, USB video input, picture capture |
| Chassis | 2U Chassis |
| IP Video Input | Up to 8 channels 1080P |
| Network video Format | H.264 / H.265 / MJPEG |
| Maximum Network Throughput | Upload: up to 500Mbps, Download: up to 500Mbps |
| Internal HDD / Swap Drive Bay | built-in 1 × 500GB 2.5 Inch SATA SSD (OS) built-in 1 × 1TB 3.5 Inch SATA HDD (recording) Support up to 2 x 3.5 Inch SATA HDD |
| Video input (Support quantity) | Max. 8 channels |
| Camera name | 20 characters |
| Channel editing | Mouse drag-n-drop |
| Digital zoom | Yes, ePTZ supported |
| Privacy Mask | Supported |
| Remote monitoring (Video input) | Yes, web and NAV Client |
| HDMI output | 1 × HDMI Port 1.4b, (4096 × 2160@24Hz) |
| DisplayPort output | 1 × DisplayPort 1.2, (4096 × 2304@60Hz) |
| Split Screen | 4, 9 |
| Dual stream technology (Video output) | Multi-channel displays D1 and full screen displays 1080P |
| Application/ Recording Mode | Alarm, motion, schedule, and manual |
| Recording schedule | 7 days × 24 hrs time table, recording mode configurable |
| Recording resolution & framerate | Max 1080p@30 fps, and ROI recording supported |
| Alarm recording | Remote digital input, remote IVS detection, remote face detection, remote tamper detection, remote audio detection, external IO, motion detection, NAV CGI Triggering, video loss detection, speed measurement detection, ANPR detection, facial recognition, remote LPR detection, QR code detection, aida behavior detection |
| Audio Recording | Yes |
| Circular recording | Yes / size customizable |
| Limited recording | Yes / days customizable |
| Video Archiving | Yes |
| Low bitrate recording | Yes |
| Remote network NAS | Support NAS (SMB/CIFS), iSCSI |
| Playback Search | Date, time, Smart search, Alarm search, POS, ANPR search, Face search, Face trace search (in FR server only), Tagging search |
| Playback resolution and framerate | Max 1080p@30 fps |
| Playback Speed | Fast Rewind: 1/8, 1/4, 1/2, 1X, 2X, 4X, 8X, 16X, 32X Fast Forward: 1/8, 1/4, 1/2, 1X, 2X, 4X, 8X, 16X, 32X |
| Backup / Video input | Max. 8 channels, AVI & MP4 file format supported |
| Alarm Management | Play audio file, send email notification, PTZ preset, digital output triggering, full screen, post alarm record, pre-alarm record, advanced alarm digital output, send customizable HTTP POST CGI URL to third party device, alarm ACK, alarm snapshot, text overlay, App cloud push notification, NCC TV wall ACK, NCC eMap Center Alarm, NCC play sound, NCC global alarm setting, all these action can be automatic or scheduled |
| Alarm recording(Alarm / event) | Pre-alarm:1 ~ 10 seconds and post-alarm: 1 sec ~ 59 minutes |
| Alarm scheduling | Up to four alarm tables with AND logic |
| Alarm event actions | Various alarm log including video loss, stop recording, schedule, logon, operation log |
| Digital output | Controllable via IP cameras |
| Video archiving & sync. | Individual camera configurable, scheduling and instant archiving |
| Keyboard Keypad | PIH-931D keyboard controllable via rs-485 to usb converter for PTZ, ePTZ, and ROI features |
| Audio | PCM/G.711/AAC, two-way audio, audio recording |
| POS | Third party TCP/IP/ RS-232 / Bluetooth supported / HID USB Barcode scanner |
| Protocols | ARP / TCP/IP / RTSP / ONVIF / HTTP / HTTPS / SMTP / DNS / PPPoE / SDDP |
| Mobile Application | LILINViewer, iPhone and Android |
| IP Scan | Supported, easy-to-setup for IP address |
| VMS support | Support NAV Client software |
| eMap | Supported |
| CPU | Intel® Core™ i9-10900 |
| RAM | 32GB (2 × DDR4 16GB) |
| Chipset | Intel® H410 |
| Display card | Intel® UHD Graphics 630 |
| Ethernet Ports | 2 × RJ-45 1GbE |
| AI VPU Core | PMH-XM2280 × 1 |
| Audio (Hardware) | 5 × Audio jack(s), 1 × S/PDIF |
| Rear panel USB port | 3 x USB 3.1 Gen 1, 1 x USB 3.1 Gen 1 (blue) USB Type-CTM, 2 x USB 3.1 Gen 2 |
| Front panel USB port | 2 × USB 2.0 |
| System FAN | 2 × 60mm rear exhaust fans |
| SSD HDD | built-in 1 × 500GB 2.5 Inch SATA SSD (OS) built-in 1 × 1TB 3.5 Inch SATA HDD (recording) Support up to 2 x 3.5 Inch SATA HDD |
| Languages | English, Traditional Chinese, Spanish, German, French, Russian, Japanese, Portuguese, Italian, Simplified Chinese, Slovenian, Czech, Hungarian, Turkish, Arabic, Persian, Bengali, Vietnamese |
| OS | Windows 11 Enterprise SAC |
| Time sync | Daylight saving time by Windows OS |
| Power Consumption | 500W |
| Power Supply | 110V ~ 240V |
| Operating Temperature | 10°C ~ 40°C(32°F ~ 104°F) |
| Storage Temperature | 0°C ~ 70°C(-4°F ~ 176°F) |
| Relative Humidity | 10% ~ 90% (non-condensing) |
| Dimensions | 88 (H) × 438 (W) × 451 (D) mm |
| Color | Black |
| Weight | 21.00 lbs (9.52kg) |
| Navigator Corporate Channel number | 4 channels |
| Number of Aida recognition channel supported | 4 channels |
| Number of AI engines allowed | 2 engines |
| Aida computing power capacity | 5 Aida power per server |
