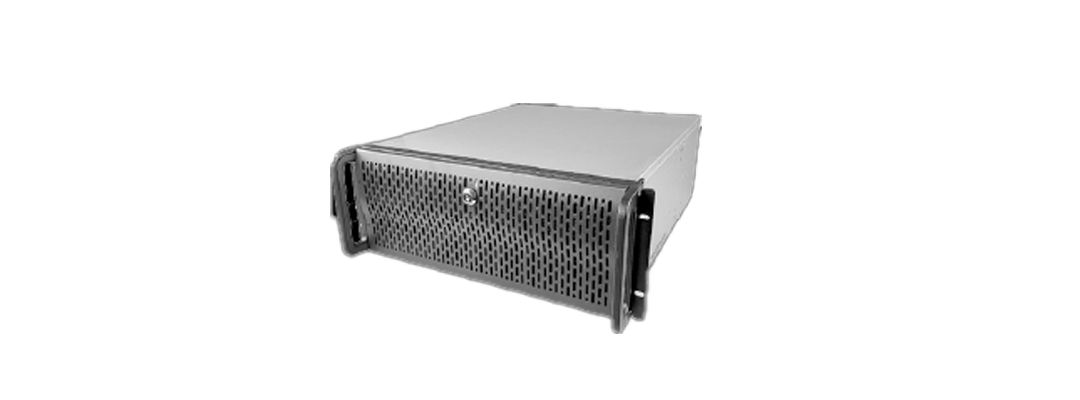

LILIN NTS1006E is our new TVWALL display server. It can support up to 4 monitors displays with a total number of 144 channels. Combined with our Navigator Software and NCC software, it supports LILIN all series IP cameras, Speed domes, DVR, NVR and NAV recording server. The avi file and RTSP stream are supported as well. It also supports cross monitor display function. It helps to achieve not just a single video display but multiple input and output solution suitable for security company that needs to monitor 24 hours a day. Apart from this, it can also be used as an advertisement system, so the users can choose which video to display on which monitor.
- built-in 1 × 500GB 2.5 Inch SATA SSD (OS)
- Support up to 3 x 3.5 Inch SATA HDD
- Dual streaming decoding mode supported
- 6 monitors support up to 144 channels in total (480P 15fps)
- Built-in dual port Gigabit Ethernet, RJ-45 × 2
- Built-in 700W Power Supply
- 4U dimension for standard cabinet
| Model | NTS1006E |
| Network video support | LILIN IP camera, LILIN IP camera over HTTPS, LILIN Fisheye camera, LILIN IP speed dome, LILIN DVR/NVR, LILIN DHD recorder, NAV live streaming, P2P live streaming, ONVIF camera, manual RTSP, screen capture, USB video input, picture capturing |
| Chassis | 4U Chassis |
| Network video Format | H.264 / H.265 / MJPEG |
| Maximum Network Throughput | Upload: up to 1250Mbps, Download: up to 1250Mbps |
| Internal HDD / Swap Drive Bay | built-in 1 × 500GB 2.5 Inch SATA SSD (OS) Support up to 3 x 3.5 Inch SATA HDD |
| Camera name | 20 characters |
| Channel editing | Mouse drag-n-drop |
| Digital zoom | Yes, ePTZ supported |
| Privacy Mask | Supported |
| Remote Live Video | Yes, web and NAV Client |
| HDMI output | 3 × HDMI (on-board × 1 and graphic card × 2), (4096 × 2160@60Hz) |
| DVI output | No support |
| VGA output | No support |
| DisplayPort output | 3 × DisplayPort (on-board × 1 and graphic card × 2), (4096 × 2160@60Hz) |
| Mosaic TV Wall | 6 monitors support up to 144 channels video display in total (480P 15fps) |
| Split Screen | 4, 9, 16, 25, 36 |
| Dual stream technology (Video output) | Multi-channel displays D1 and full screen displays 1080P / 3M / 4M / 5M / 8M / 12M resolution |
| Multi-screen (Video output) | 6 monitors support up to 144 channels in total (480P 15fps) |
| CPU | Intel® Core™ i9-12900E |
| RAM | 64GB (2 × DDR4 32GB) |
| Chipset | Intel® Q670 |
| Display card | 1 × RTX3050 |
| Ethernet Ports | 1 x Intel® I225LM with 2.5GbE 1 x Intel® I225LM with 2.5GbE |
| Audio (Hardware) | 3 × Audio jack(s) |
| Rear panel USB port | 5 x USB 3.2 (Gen2) Type-A 1 x USB 3.2 (Gen2x2) Type-C |
| Front panel USB port | 1 x USB 3.0 Type-A |
| Cooler | 2 × 120mm front exhaust fans 2 × 80mm rear exhaust fans |
| SSD HDD | built-in 1 × 500GB 2.5 Inch SATA SSD (OS) Support up to 3 x 3.5 Inch SATA HDD Note: Do not use WD Purple HDDs for NAV HDD installation. Please use 7200RPM WD Red Pro for non-RAID installation, WD (Gold) Enterprise HDDs for RAID installation, or other Enterprise HDDs |
| Languages | English, Traditional Chinese, Spanish, German, French, Russian, Japanese, Portuguese, Italian, Simplified Chinese, Slovenian, Czech, Hungarian, Turkish, Arabic, Persian, Bengali, Vietnamese, Polish |
| OS | Windows 11 IoT Enterprise 22H2 GAC |
| Time sync | Daylight saving time by Windows OS |
| Warranty | 3 years |
| Power Consumption | 700W |
| Power Supply | 110V ~ 240V |
| Operating Temperature | 0°C ~ 50°C(32°F ~ 122°F) |
| Storage Temperature | -20°C ~ 70°C(-4°F ~ 158°F) |
| Relative Humidity | 10% ~ 90% (non-condensing) |
| Dimensions | 177 (H) × 482 (W) × 650 (D) mm |
| Color | Black |
| Weight | 35.71 lbs (16.2kg) - Net |
TV Wall Display Server (NTS); 4U; Supports 6 Monitors; Supports Up To 144CH; Intel Core Processor with 64GB RAM; 3× Hot-swap 3.5 Inch SATA HDD; Windows 11 IoT Enterprise ; Dual Port: 2x 2.5GbE
